Product Description

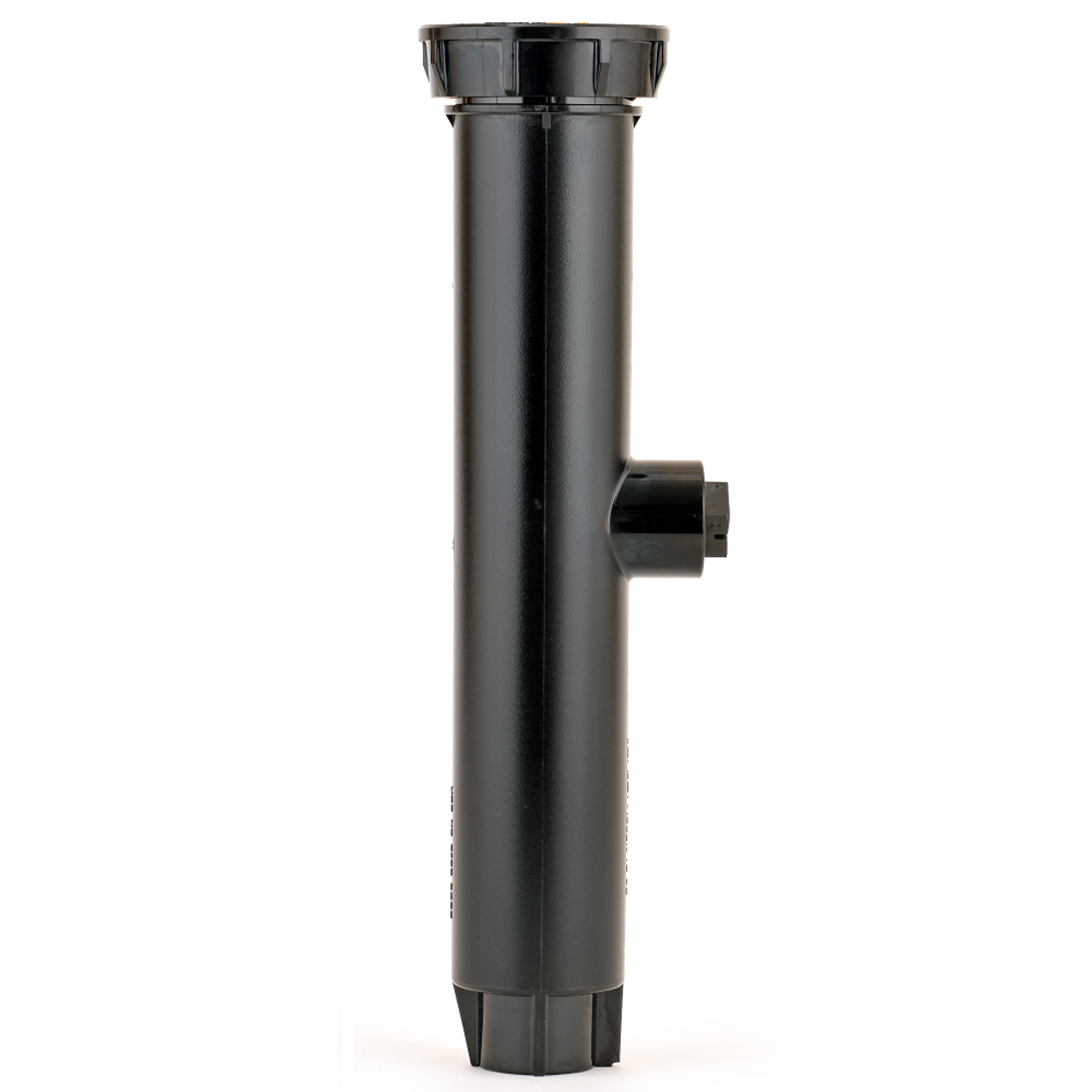

RainBird 1806SAMPRS Series Spray Head
The #1 Irrigation Spray Head in the World
Co-molded wiper seal provides unmatched resistance to grit, pressure, and the environment
Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
Specs:
Operating Range
Spacing: 2.5 to 24 feet (0.8 to 7.3m)*
Pressure: 15 to 70 psi (1.0 to 4.8 bar)
* 2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles
Dimensions:
1804 Series: 6" (15.2 cm) body height; 4' pop-up height (10.2 cm)
1806 Series: 9 3⁄8" (23.8 cm) body height; 6" pop-up height (15.2 cm)
1812 Series: 16" (40.6 cm) body height; 12" pop-up height (30.5 cm)
Inlet: ½" (15/21) NPT female threaded
Exposed surface diameter: 2¼ " (5.7 cm)
SAM Capability:
Holds up to 14 feet (4.3 m) of head; 6 psi (0.3 bar)
Flow-By:
0 gpm at 8psi (0.6 bar) or greater; 0.10 gpm (0.36 l/m; 0.02 m³/h) otherwise
Pressure Regulation:
SAM-PRS models regulate to an average 30 or 45 psi (2.1 or 3.1 bar) with inlet pressures of up to 100 psi (6.9 bar)
Side Inlets:
SAM models only
Warranty:
Five-year trade warranty
