Product Description
RainBird 100ASVF Series Anti-siphon Valve with Flow Control
The Industry Leader for Over 20 Years
Features
• Combination of the reliable DVF Angle valve and atmospheric backflow
preventer in one unit
• Incorporates all features of DV/DVF Series valves
• Not recommended for use with two-wire control systems
Specifications
• Pressure: 15 to 150 psi (1,0 to 10,4 bar)
• 075-ASVF Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For
flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Landscape Drip products
application, use a 200 mesh filter installed upstream
• 100-ASVF Flow: 0.2 to 40 GPM (0,05 to 9,085 m3/h; 0,01 to 2,52 l/s). For
flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Landscape Drip products
application, use a 200 mesh filter installed upstream
• Water temperature: Up to 110° F (43° C)
• Ambient air temperature: Up to 125° F (52° C)
• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
0.450A inrush current; 0.250A holding current
• Solenoid coil resistance: 38 Ohms
Installation Notes
• Anti-siphon valve must be installed upright
• Anti-siphon unit must be installed at least 6" (15,2 cm) above the highest
point of water in the pipe and sprinklers it serves
• No valve can be located downstream of the anti-siphon valve
• Anti-siphon valves must not be subjected to operating pressure for
more than twelve (12) hours in any twenty-four (24) hour period
• Uniform Plumbing Code Table 603.2 Consult local codes

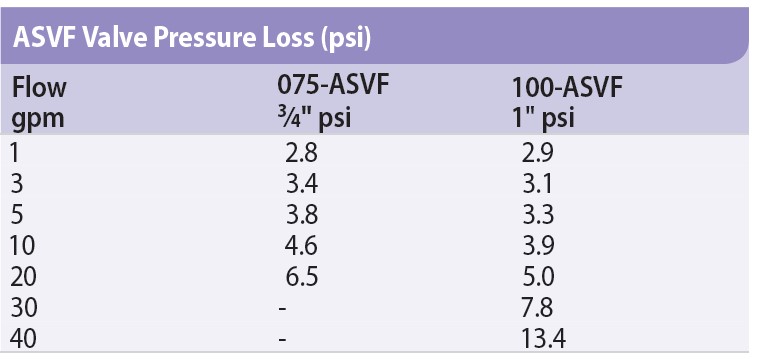

Dimensions
• Height: 61⁄4" (15.8 cm)
• Length: 61⁄10" (15.5 cm)
• Width: 31⁄5 “ (8.1 cm)
Models
• 075-ASVF: 3⁄4"
• 100-ASVF: 1"
Models available in NPT threads only
Recommendations
1. Rain Bird recommends flow rates that result
in discharge velocities in the supply line
not to exceed 7.5 ft/sec (2.3 m/s) in order to
reduce the effects of water hammer.
2. Rain Bird residential valves cannot be used
with PRS pressure regulating modules.
3. Not recommended for use with
two-wire systems.
