Product Description
Powermatic PM2200 3HP Cyclonic Dust Collector - with HEPA Filter 1792200HK
NO SALES TAX SHIPS FREE
Introducing the Powermatic PM2200 3 HP Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life

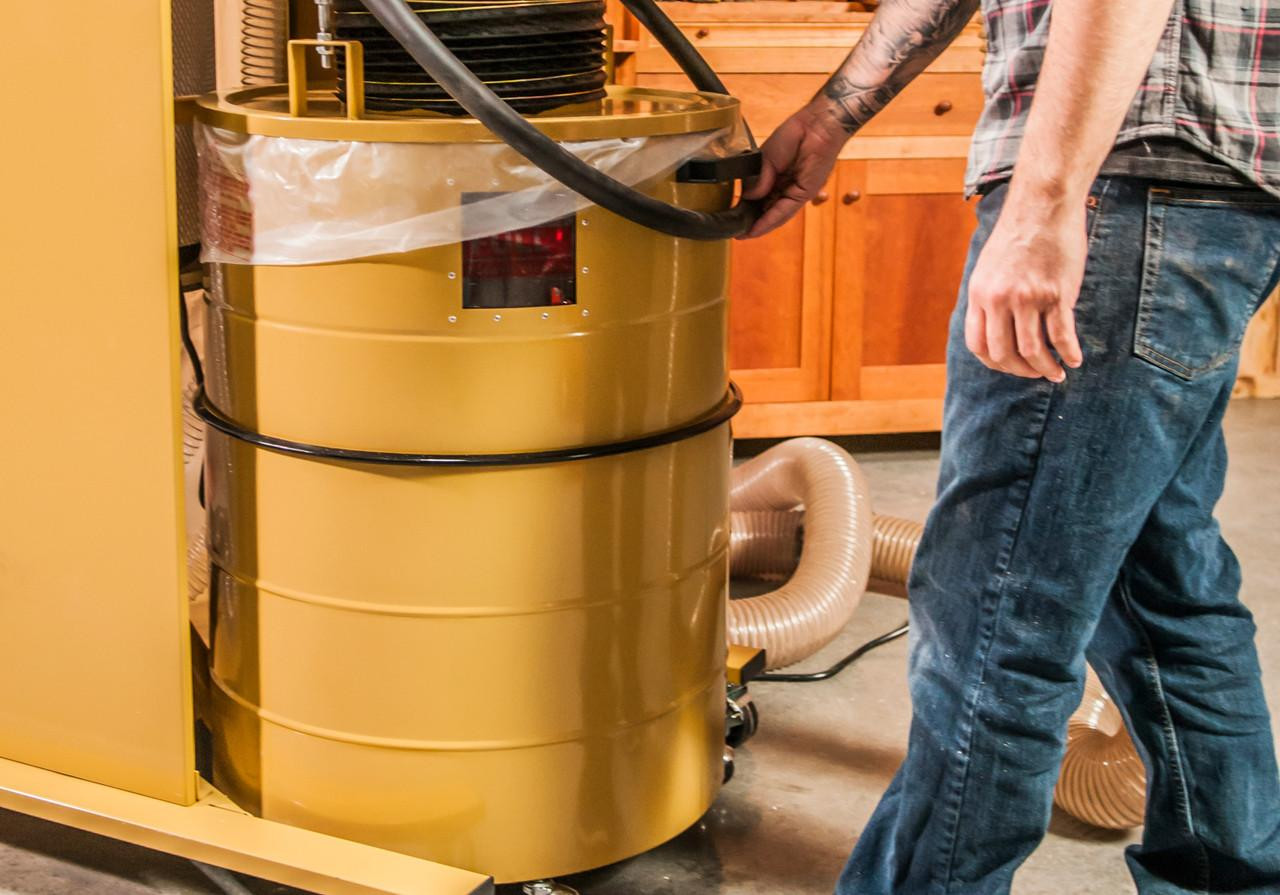

One-handed drum release allows for simple removal of the drum for bag changes
Vacuum pressure gauge for greater user feedback
HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron
Multiple hose mounting options: three 4" dust ports or one 8" dust port
Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
Powerful 3 HP motor moves 1,543 Cubic Feet of air per Minute
Style (Type) Cyclonic
Air Flow @ 8" (CFM) 1543
Number of Air Inlets 1(8") or 3(4")
Efficiency (Micron) 0.3
Static Pressure (WC) 14.3
Sound Rating (DB) 78
Collection Bag Capacity (Cu. Ft.) 55
Collection Bag Length (In.) 31-3/8
Impeller Diameter (In.) 15-7/8
Impeller Material Steel
1-Hose Connection Diameter (In.) 8
3-Hoses Connection Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Current (Amps) 16
Recommended Circuit Size (Amps.) 30
