Product Description
Oliver 14" Swing Bench Model Drill Press - 10060.001
NO SALES TAX EVER!
The 14-inch bench drill press is ideal for performing normal tasks at a regular woodworking shop. Shop the best bench drill press at Oliver Machinery today!
Available in bench or floor model version.

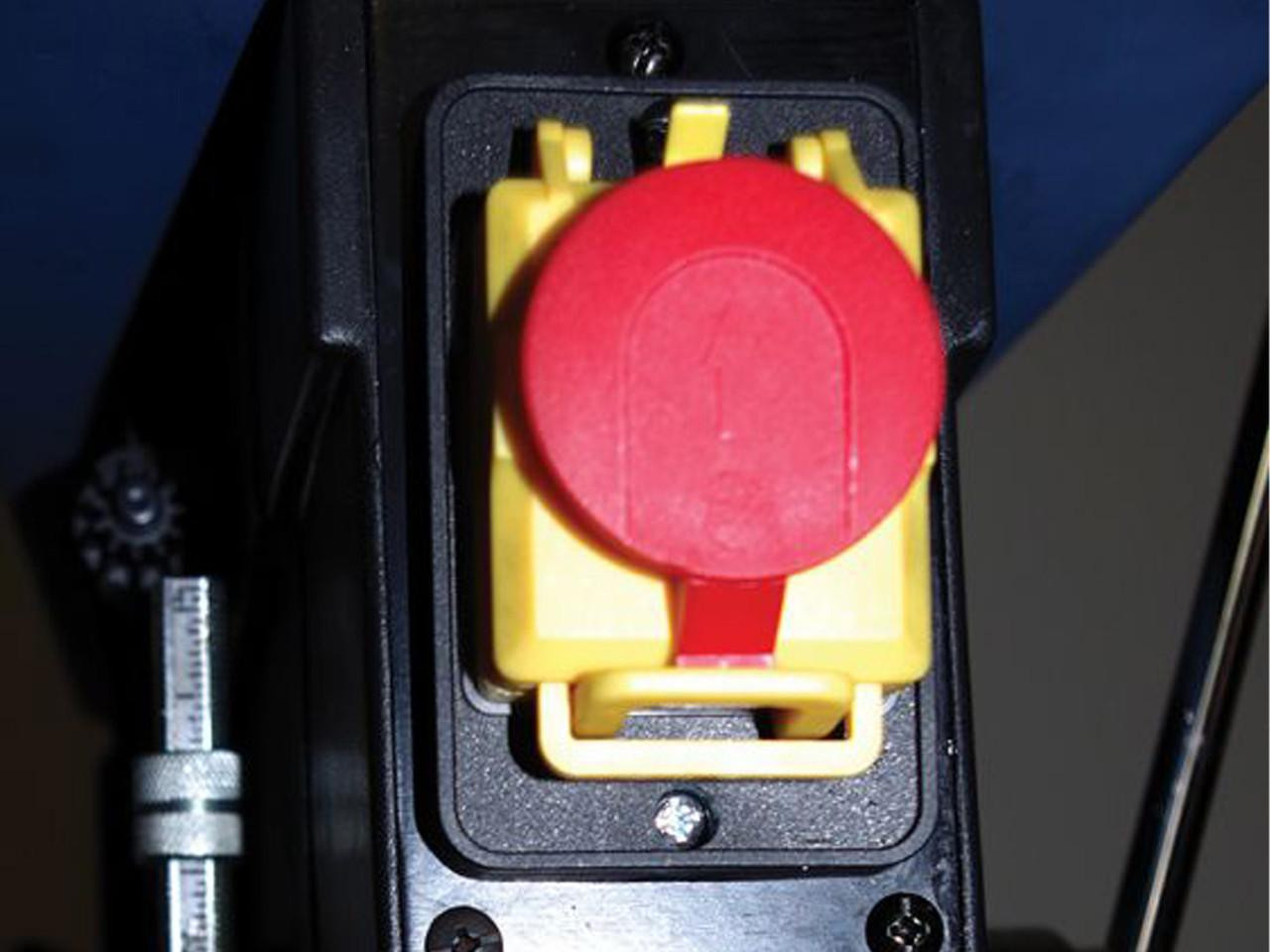

Line interrupt switch requires manual start in the event of a power loss.
Spindle is supported by high quality sealed ball bearings.
LED lamp provides a well lit work area.
Table rotates 360° and tilts 45°.
Crank operation moves table up and down with locking clamp.
Laser pointer is built-in for precise repeat drilling.
Drill chuck guard included.
5/8”chuck and key holder included.
Cast iron pulleys reduce vibration.
Positive depth stop allows repeated operations with ease.
Powerful 1/2 HP Motor.
Model Number 10060
Stock Number 10060.001
Type 14” Bench
Swing 13-1/4”
Drilling Capacity 3/4”
Chuck Capacity 5/8”
Chuck Taper JT-3
Table Size 11-1/2” Round
Table Tilt +/- 45°
Spindle Taper MT-2
Spindle Travel 3-1/8”
Spindle Speeds 12
Speed Range RPM 280 to 3,000
Spindle to Table 17-3/4”
Spindle to Base 25-1/4”
Column Diameter 2-7/8”
Base Size 9-5/8” x 16-3/4”
Overall Height 38-1/2”
Motor 1/2HP, 1Ph 115V (8 Amps)
Net Weight 105 lbs. / Gross Weight 120 lbs.
