Product Description
Munro Up To 2HP 110 Volt Liquid Level Control Boxes Pump Up, Pump Down Control
HUGE DISCOUNT ON MUNRO WHEN ADDED TO THE CART
NO SALES TAX EVER!
The water level control box is a simple, cost effective control for applications when the
water level is variable. The Munro water level control provides pilot duty operation
when thermal overload protection is present, for example, submersible water feature
pumps or dewatering pumps. Used any place power can be interrupted, this control
transforms all outbound voltage to a low, safe, 24v. Low external voltage is especially
important when external sensors or switches are used, such as the float switch
included with this control box.

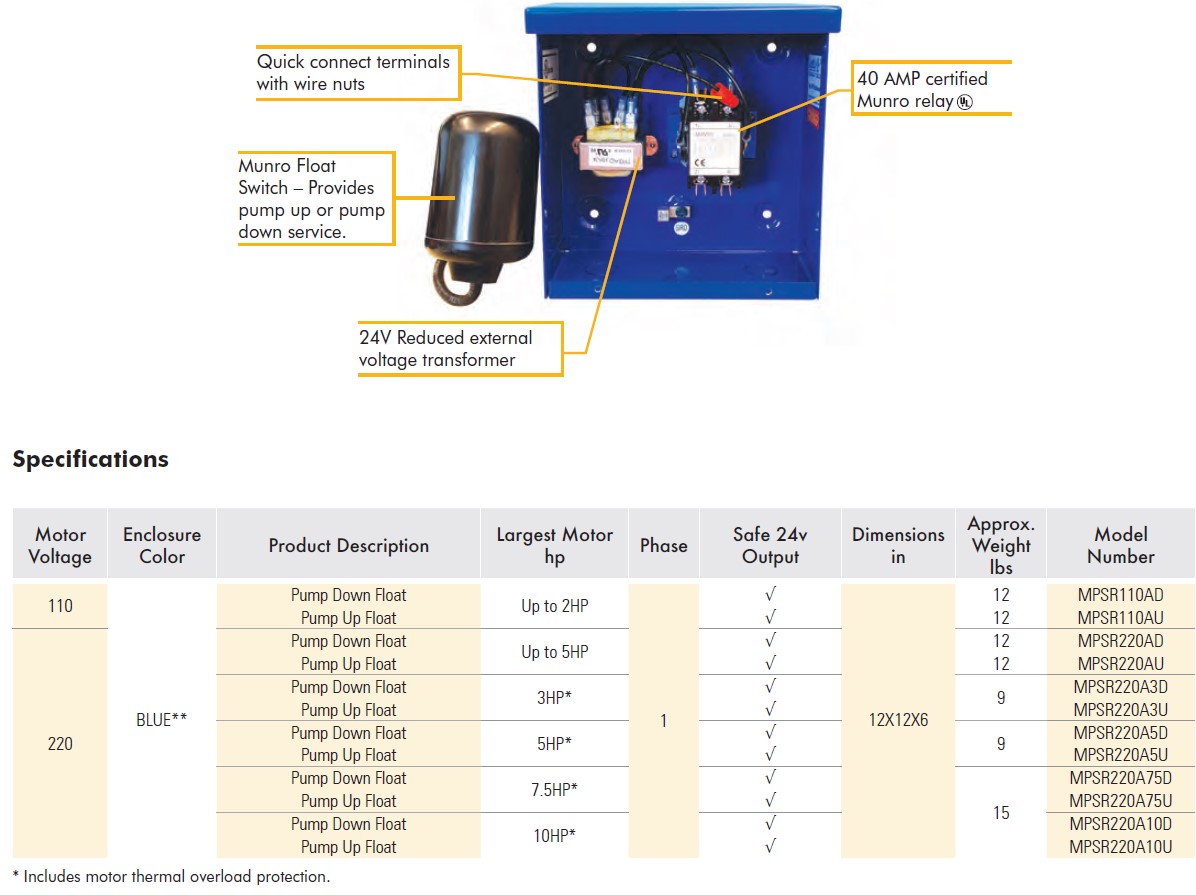

CONSTRUCTION
• Dimensions – 12”x12”x6”
• UL and CUL listed relay
• UL-50 Type 3R listed enclosure – approved for outdoor use, available in stainless
steel or powder coated blue
Quick connect terminals with wire nuts
Munro Float Switch – Provides pump up or pump down service.
24V Reduced external voltage transformer
40 AMP certified Munro relay UL Listed
