Product Description
Munro StartBox™ - 110 Volt Signal Standard Start Box Stainless Steel MPSR110A
Startbox Powder Coated Blue- 110v, 24fla
HUGE DISCOUNT ON MUNRO WHEN ADDED TO THE CART
NO SALES TAX EVER!
The old Stand-by
This flexible, easy-to-install pump start relay provides “pilot-duty” operation for all electrically driven pump equipment. No need to wonder which relay to use, the Munro StartBox has a 40 amp relay to work equally well with single phase 3/4 hp to 5 hp.* For use with controllers with a .36 amp signal or stronger.
Works with any residential turf irrigation pump – available in 24v, 110v, 220v coils
Color-coded wiring – makes hook up a breeze
UL and CUL listed relay and enclosure – safe and reliable

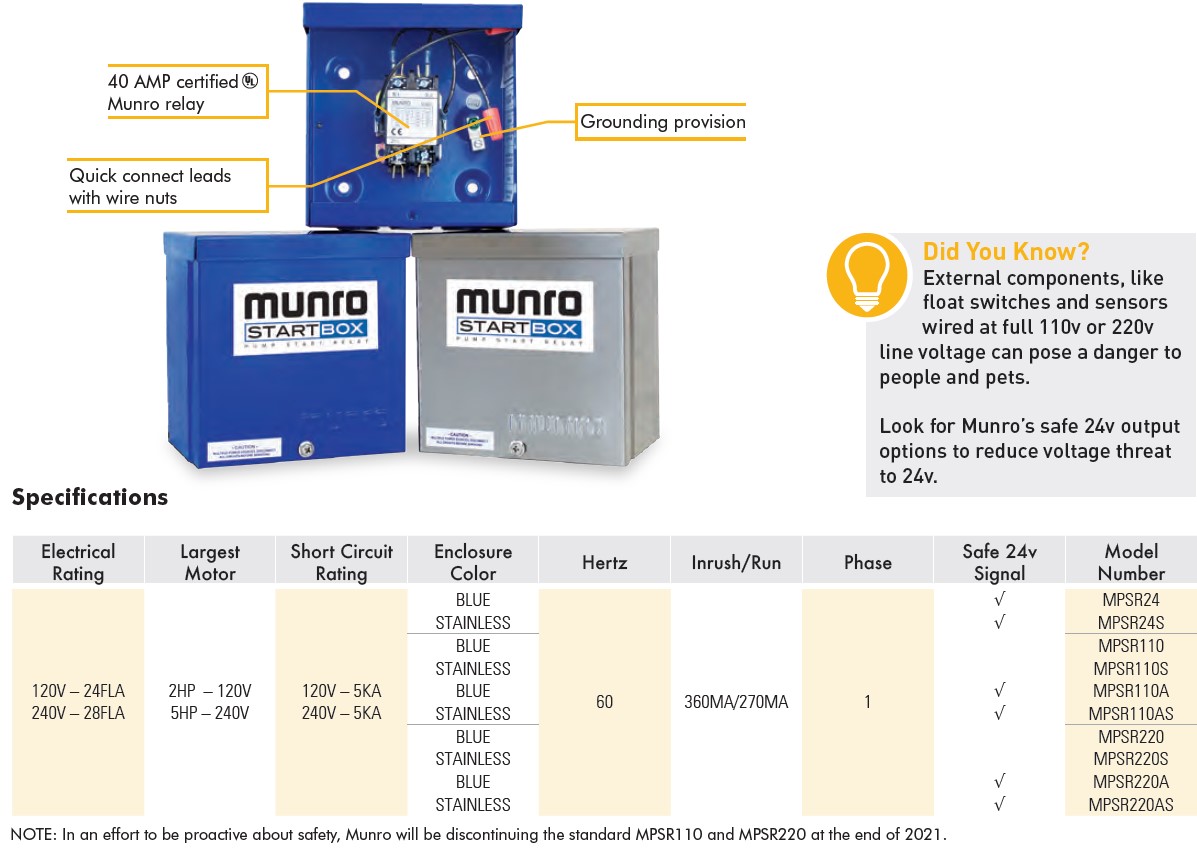

CONSTRUCTION
Dimensions – 6”x6”x4”
UL and CUL listed relay
UL-50 Type 3R listed enclosure – approved for outdoor use, available in stainless steel or powder coated blue
Electrical 120V – 24FLA
Largest Motor 2HP – 120V
Short Circuit Rating 120V – 5KA
Enclosure Color BLUE
Hertz 60
Inrush/Run 360MA/270MA
Phase 1
