Product Description

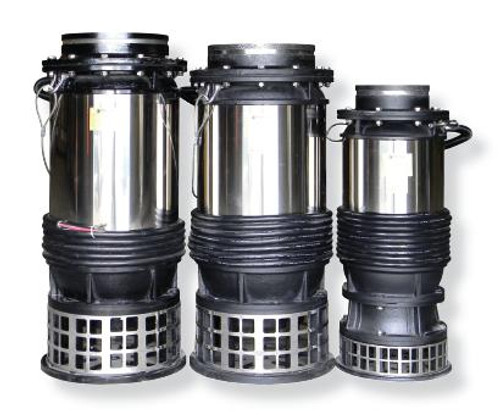

Munro RP Large Volume – 10HP 230V 3 PHASE
HUGE DISCOUNT ON MUNRO WHEN ADDED TO THE CART
NO SALES TAX EVER!
Volts 208-230
Amps 33-26.8
Max Head ft 19 Max Capacity gp
Max Capacity gpm 1,650
Discharge in 10"
Phase 3
Cord Length 24'
Thermal Protection
Liquid Max Temp. 104 Deg
You can create a river with these pumps! For extremely high gpm
capacity with virtually zero noise, the RP Large Volume series has a
mixed flow impeller design, achieving high water flow and low head.
• Abrasion-resistant mechanical shaft seal – protects the
motor for longer life
• Impeller flow guide vane – increases efficiency and lowers
operating cost
• Stainless steel outer case – durable and low maintenance
COMMON APPLICATIONS
Recommended for: river and waterfall style water features
Other uses: large volume non-potable water transfer, flood control, area
dewatering, extraction of water, flood irrigation, tail water recycling
ADVANTAGES
Much higher than average flow to horsepower – Using an axial and mixed flow design, the RP large volume pumps live up
to their billing. The proof is in our curves – you’ll see maximum flow at low head levels.
Continuous duty design – These pumps are made to run! Our design takes the flow path across the motor housing to whisk
away the heat generated by the motor. A cool motor means a longer life.
Low cost to operate – These pumps are at their most efficient at full flow. Other pumps can not make that claim!
