Product Description
Lamello Zeta P2 with carbide cutter - Ships Free - NO SALES TAX
The Zeta P2 is the profile biscuit joiner for the P-System may be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.
Ships Free - NO SALES TAX

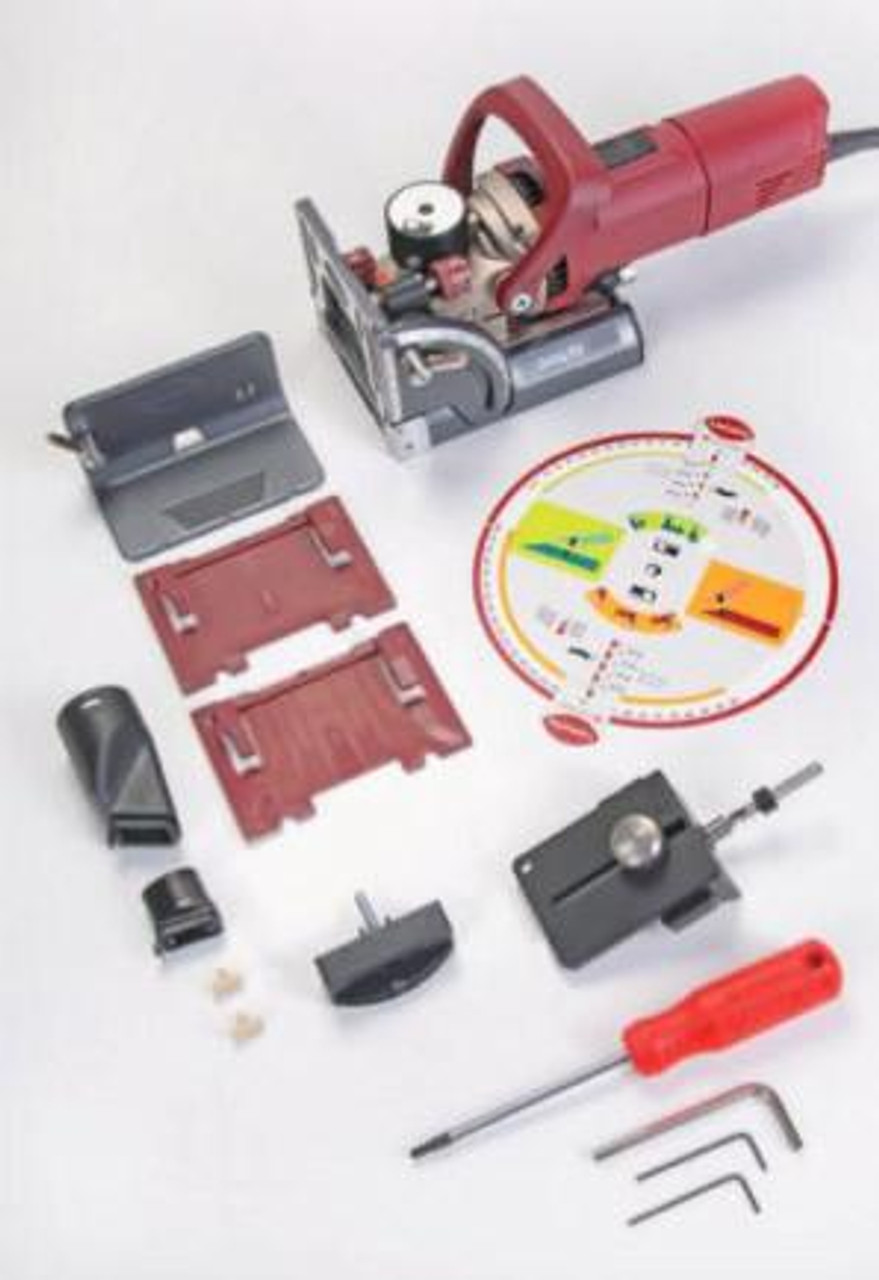

What's Included:
Zeta P2
P-System Cutter, Carbide Tipped (101403S) or Diamond Tipped (101403DS)
Stop Square
Suction Stubs 23 + 36mm
Angle Disc
Spacer plate 2mm
Spacer plate 4mm
Tool set
Clamex P-System Drill Jig, including Drill
Lamello Systainer3
The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.
Function
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.
The Zeta P2 can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade (item #132000).
Zeta P2 Features
Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.
P-System Anchorage
Tool-free anchoring of connectors, without adhesive or screws.
P-System Depth Adjuster
Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.
Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.
Swivelling Front Stop with Fixed Pivot Point
Join reliably with the cutter which is in the exact center between to two application surfaces
Multifunctional Stop Square
In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm.
Zeta P2 Benefits
Extremely fast joining method using a power tool
Rapid, simple, and precise
Identical grooves on both work pieces, saving time by removing the need for depth adjustments and minimizing the risk of errors
Connector system with innovative profile groove technology greatly reduces labor time while also negating the need for additional fastening materials
5 different cutting depths for various connecting fittings
Also compatible with biscuits and other 4 mm fittings
Specifications:
Power: 800 W
Voltage: 120 V
Speed: 9,000
Cutter: Carbide-tipped profile groove cutter / Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.2 lbs.
