Product Description
Lamello 186320 Cabineo 12 connector for corner joints from 13 mm White, 500 Piece
NO SALES TAX EVER!
The Cabineo is a one-piece cabinet unit fitting and is installed into a drilled or routed shape. No edge drilling is necessary the machining happens solely in the surface. Due to this, Cabineo can be used with all kinds of CNC machines, including very simple 3 axis and nesting machines. In comparison with the standard cam and dowel fitting, the Cabineo offers more efficient production, faster installation and a higher clamping force. To top it off, there is no need for wooden dowels. The concept of the fitting was designed to use a minimal amount of resources for a maximum of functionality.
The Cabineo offers considerate advantages in the whole process, including production, transport and installation. Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This eliminates the packing of bags with fittings which would need to be delivered to the job site for installation. Because the elements are already factory-installed, the person assembling doesn't need to handle loose fittings supplied in a bag during installation. This speeds up the assembly considerably and additionaly helps in reducing possible mistakes. The fitting is inserted into the routed shape on the surface. This can take place in production prior to transport or following transport at the final destination. The preinstalled screw inside the fitting is then screwed into the 5 mm drill hole in the corresponding workpiece, using a ball-end allen key. The speed of the cordless drill joins the workpieces quickly and powerfully. Cover caps in various colours are also available and can be clipped onto the Cabineo within seconds.

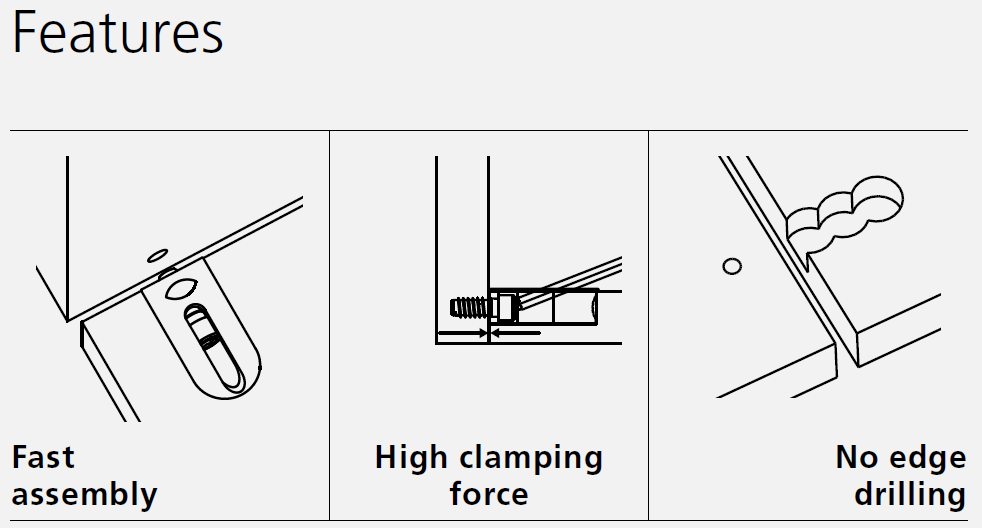

– Carcase connectors for time savings throughout
the entire production chain
– For every CNC machine thanks to simple
machining on the surface
– Perfectly tensioned joints due to the high
clamping force
– Elimination of dowel drilling and installation
leads to time savings
– Ideal for time-saving, stable carcasses and
cabinets
Cabineo 12 is a one-piece cabinet connector
which can be used with all CNC machines
because only surface machining is required.
The Cabineo is installed in the board either in
the workshop or on site. The pre-assembled
screw in the connector is screwed into the
5 mm hole of the second workpiece using a
cordless drill. Cabineo impresses with its
time-saving processing and assembly as well
as the high clamping force which leads to
stable connections without the need for
additional dowels. Cabineo is available in
white or black.
