Product Description

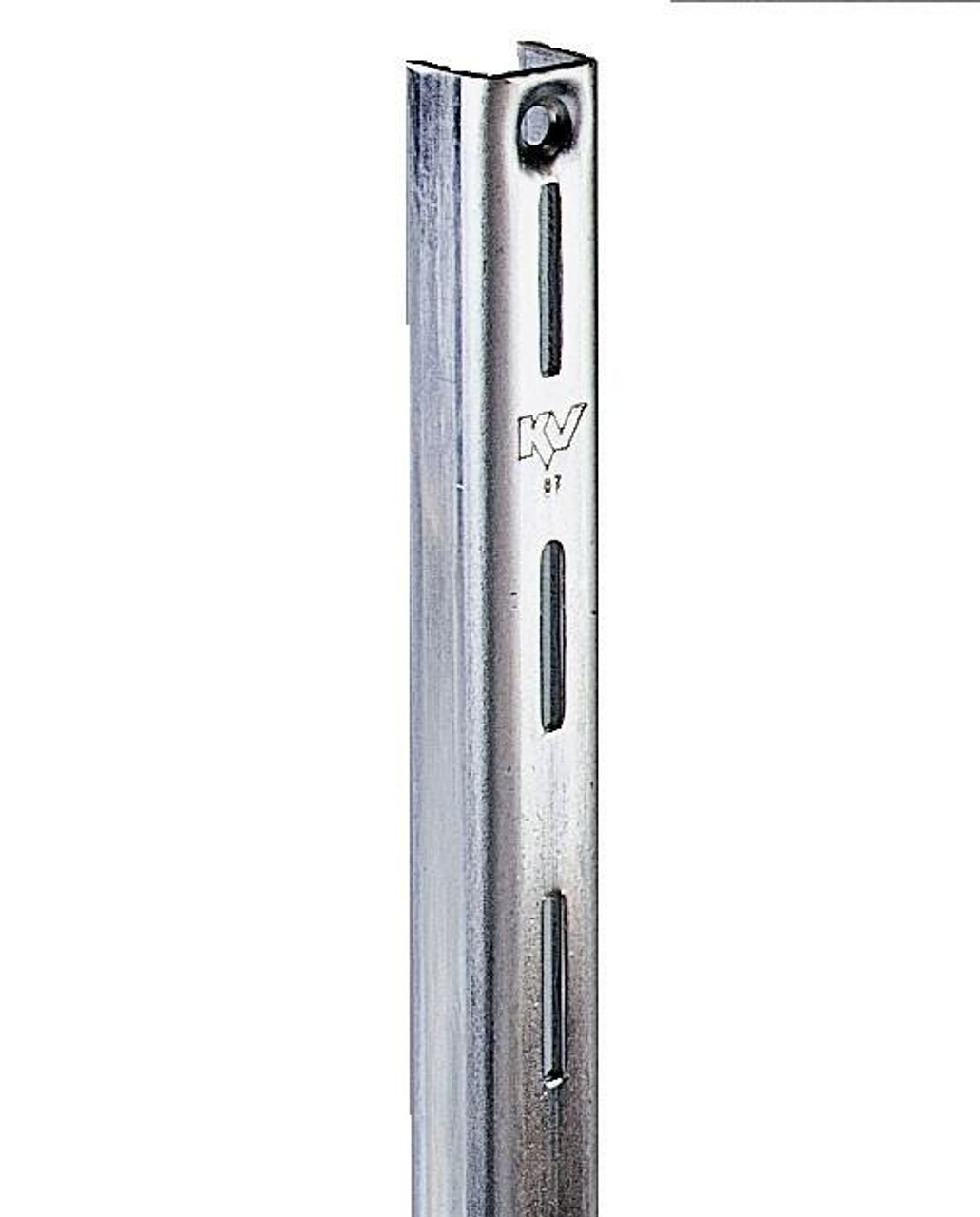

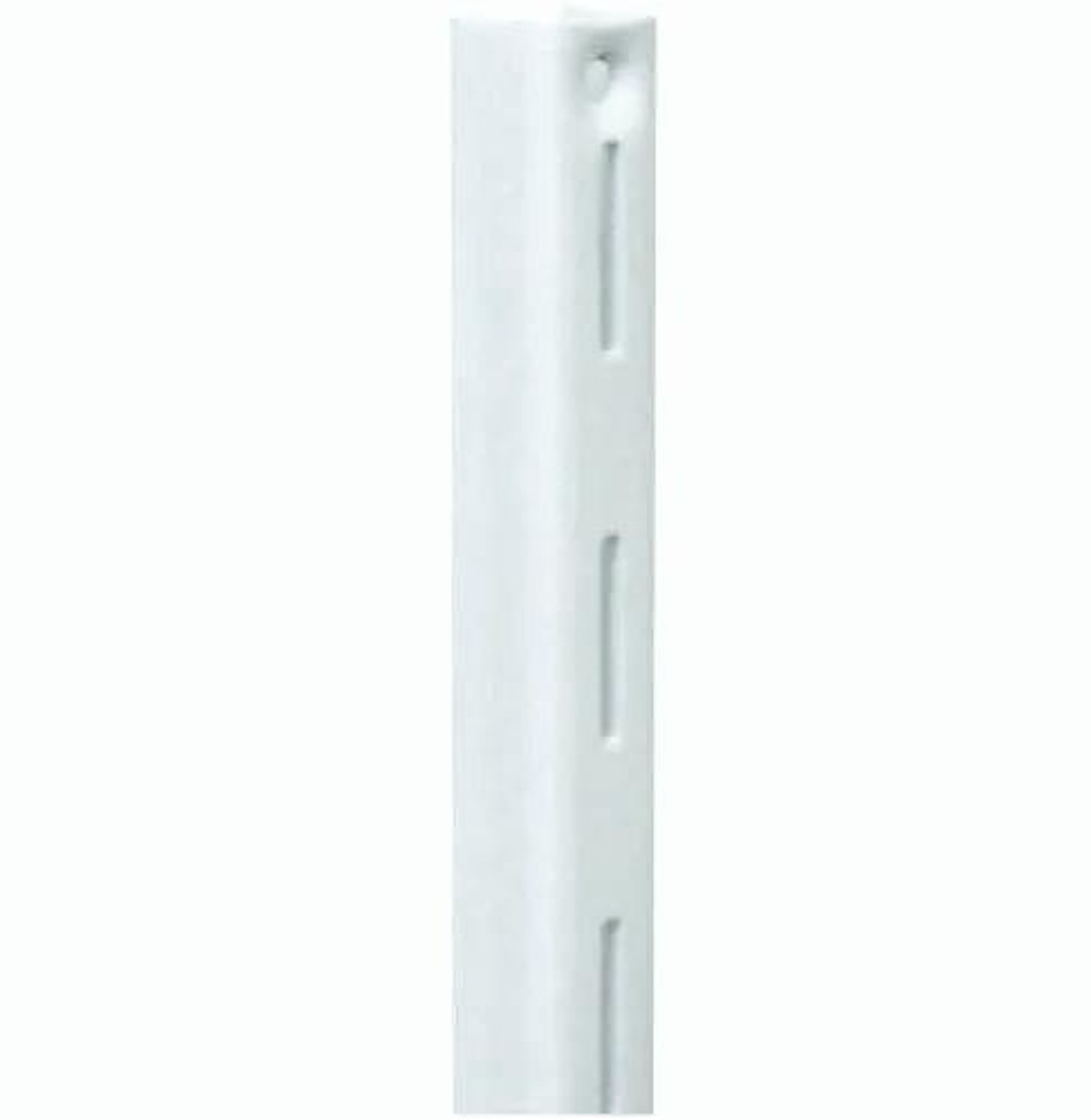

Knape & Vogt 83 Series Heavy-Duty Standards
83™/183™ Series Heavy-Duty Standard and Bracket System
83 Series Oversized Standards
Dimensions: 3/4" wide x 1/2" deep x selected length
Material: 16 gauge steel
Finish: Anochrome (ANO)
Origin: Made in the USA
Features: Safety lead-in at top of standard; embossed logo to show
correct orientation; countersunk screw holes; center aligned
slots and screw holes; precision cut lengths
• Single slot design
• 1" vertical slot adjustability
• BHMA Grade 2 Compliant*
• Limited lifetime warranty
*Standards
Accessories
113L ANO Left-Hand Anochrome (ANO) Panel Clip
113R ANO Right-Hand Anochrome (ANO) Panel Clip
Finish: Anochrome (ANO)
Origin: Made in the USA
Packed: 50 per carton; Left and right clips packed separately
Application: Used to attach display and wall panels into vertical position
119 RUB Gray rubber cushion for use with 183 series brackets
Packed: 100 per carton
134 ANO Socket-#83 Standard Bottom Socket
135 ANO Socket-#83 Standard Top Socket
Origin: Made in the USA
Packed: 100 per carton
159LL ANO Lock Lever Heavy-Duty Support Bracket
Finish: Anochrome (ANO)
Origin: Made in the USA
Packed: 100 per carton
Benefit: Provides extra support for shelves with heavy loads;
lever lock for extra secure mounting and stability
191 ANO Hang Rod Saddle
192 ANO Hang Rod Saddle
Finish: Anochrome (ANO)
Origin: Made in the USA
Packed: 10 per carton
Features: 191 bolts to 183L & 183R or 185 brackets to hold 1-1/16" O.D. tubing
192 bolts to 183L & 183R or 185 brackets to hold 1-5/16" O.D. tubing
