Product Description

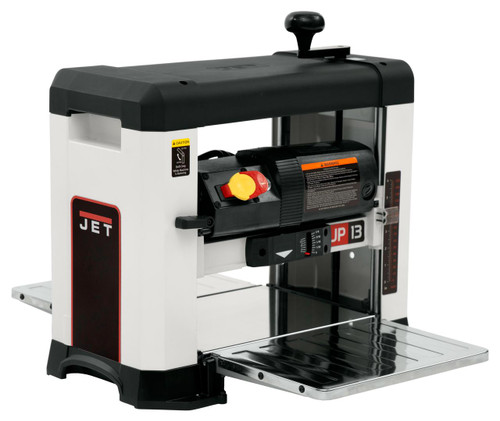

Jet JWP-13BT 13" JET Helical Style Bench Top Planer JT9-722130
NO SALES TAX
The New JET 13” Benchtop planer delivers the power and efficiency that woodworkers demand in the shop. The JET 13" Planer produces a smooth and consistent cut surface thanks to its Helical Style Cutter head with 6 rows of 24 individual quick change inserts which can be easily rotated or replaced if damaged or worn. This helical style cutter head design helps reduce noise as its 2HP motor is turning at an impressive 10,000 RPM. Features include a rugged 4 post design, adjustable folding tables, 2 infeed speeds and a sturdy Cast Iron base which helps reduce snipe.
Helical Style Cutter head with 6 rows of 24 individual quick change inserts, provides a clean and smooth cut with easy to change blades
Precision machined Cast Iron Bed and Steel cover assists in keeping boards flat and reduces snipe
Four post design for maximum control and support of cutter head in reference to work piece and cast table
Powerful 2HP 15 Amp Motor turns the cutter head at 10,000 RPM
Dual infeed speed control for 18fpm or 26fpm, maximizes cut efficiency on different wood material types
Maximum depth of cut 1/8", 6" depth and 13" width capacity
Adjustable folding infeed/outfeed tables for leveling to bed and saves shop space when stored
Dust Port hooks up to dust management system and helps keep shop clean
Toggle switch with removable safety key
Adjustable depth stop for consistent repetitive cuts
Style (Type) Benchtop
Type of Cutterhead Helical Style
Cutterhead Speed (RPM) 10,000
Cutterhead Diameter (In.) 2" (46mm)
Cuts Per Minute 20000
Number of Knives 24
Maximum Depth of Cut (In.) 1/8"
Maximum Full Width Depth of Cut (In.) 1/8"
Maximum Planing Width (In.) 13"
Maximum Planing Thickness (In.) 6"
Feed Rate (FPM) 18 and 26
Number of Speeds 2
Table Size (L x W) (In.) 13 x 9.8
Dust Port Outside Diameter (In.) 4" (102mm)
Motor Power (HP) 2
Motor Phase (PH) 1
Motor Voltage (V.) 115
Motor (amps) 15
