Product Description
Jet Deluxe Xacta® SAW 5HP, 1Ph, 30" RIP JT9-708676PK
NO SALES TAX SHIPS FREE
If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
EXCLUSIVE 30" Commercial XACTA® Fence II with T-square design
Quick release riving knife greatly reduces binding/kickback risk
Push button arbor lock for rapid blade change
Shrouded Blade increases dust collection efficiency
Standard 11" left and right cast iron extension wings provides the largest table surface in its class
Poly-V drive belt system delivers quiet, efficient operation
Rail-mounted magnetic switch is easy to reach and provides overload protection
Enclosed cabinet with built-in sealed storage drawer
Hinged motor cover on cabinet gives quick access to the motor and belts
Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
Built-in 4" dust collection port
Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning

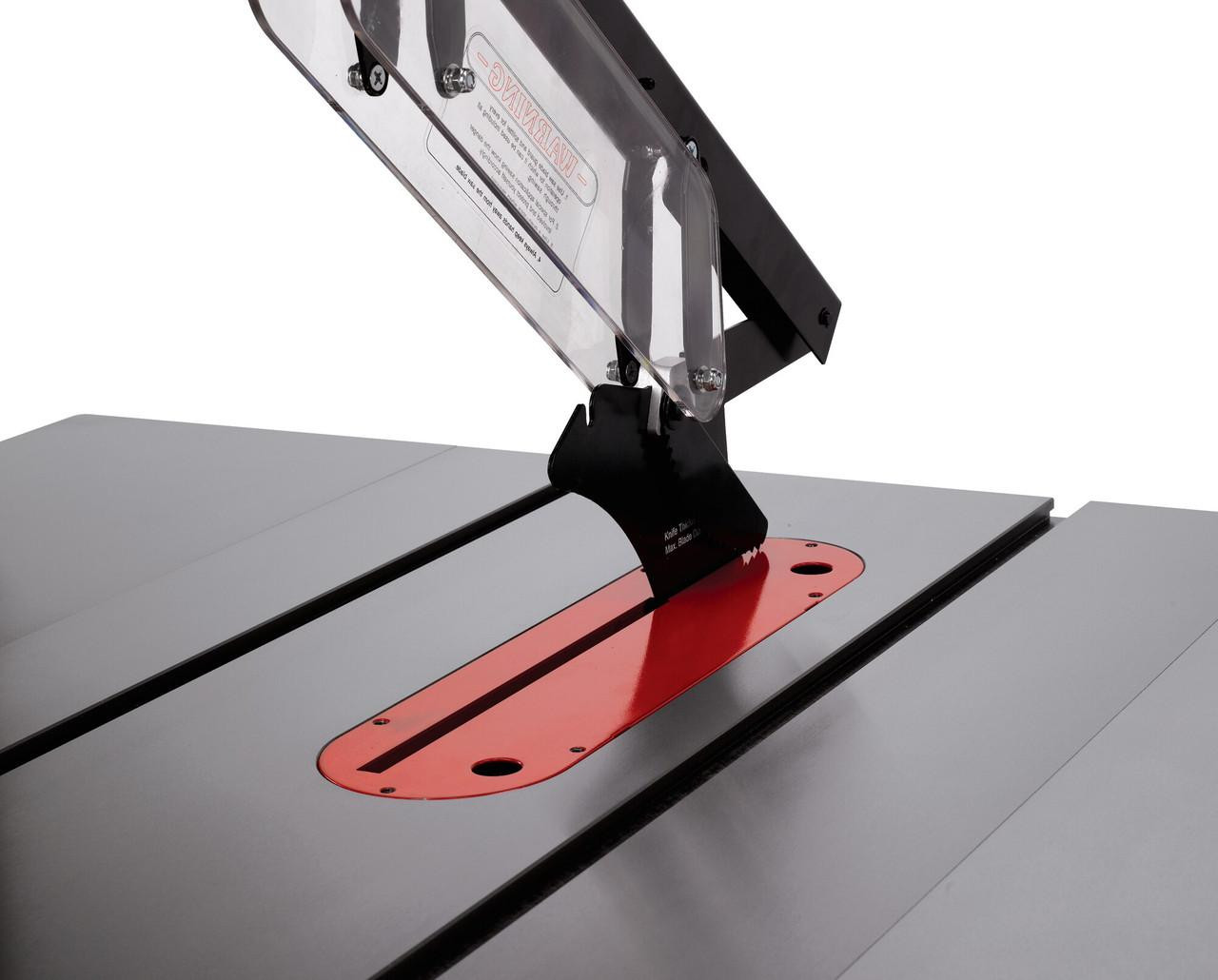

Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
Arbor wrench
Powder coated paint for a long-lasting, chip-resistant finish
Style (Type) Cabinet
Blade Diameter (In.) 10
Arbor Diameter (In.) 5/8
Arbor Speed (RPM) 4300
Maximum Depth of Cut (In.) 3
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Rip Left of Blade (In.) 13
Maximum Rip Right of Blade (In.) 30
Table in Front of Saw Blade at Maximum Depth of Cut (In.) 10
Maximum Diameter of Dado (In.) 8
Maximum Width of Dado (In.) 13/16
Table Type Cast Iron
Table Size (L x W) (In.) 29 x 20
Table Size with Extension (L x W) (In.) 29 x 42
Miter Gauge Type Deluxe
Dust Collection Minimum CFM Required (CFM) 350
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 5
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor (amps) 18
