Product Description

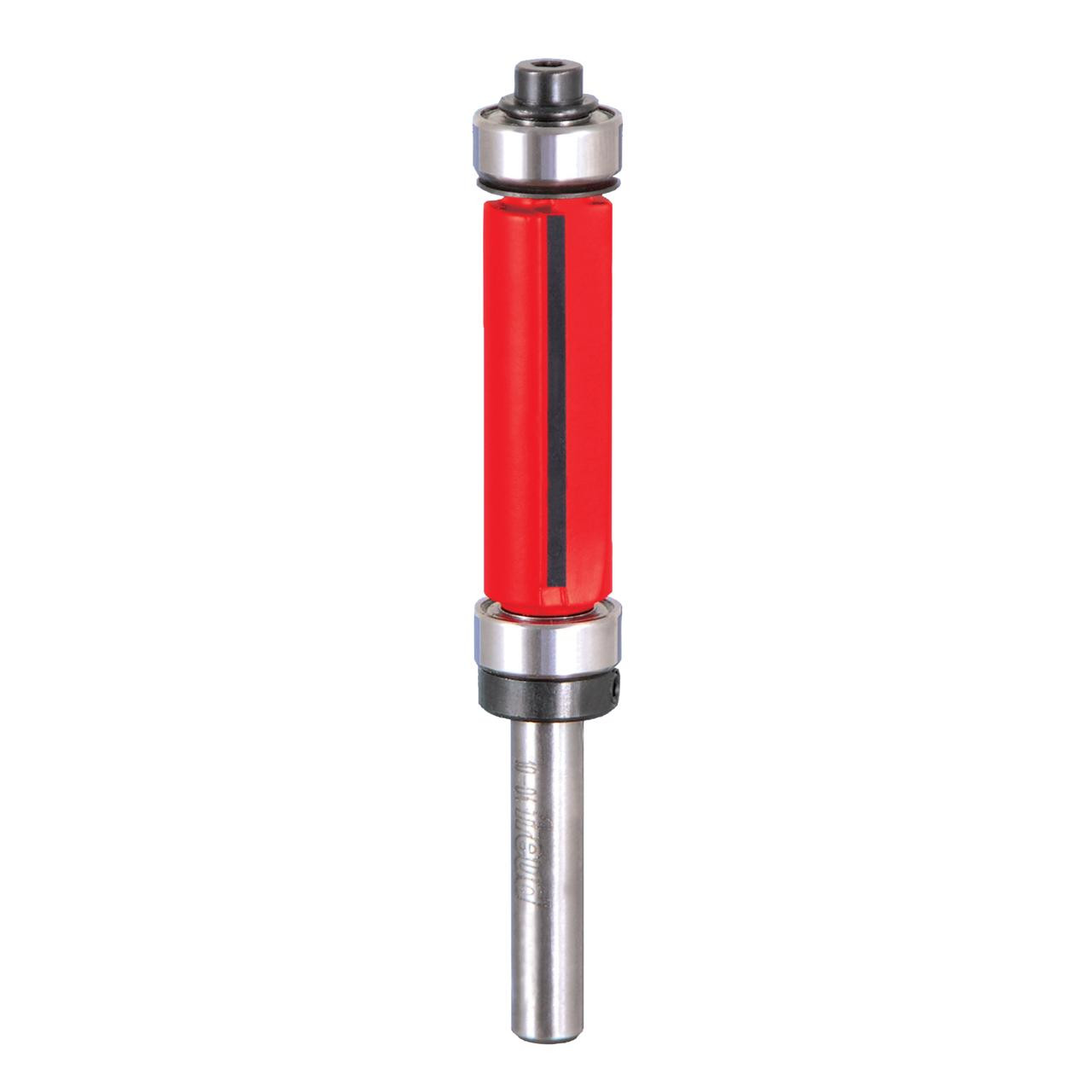

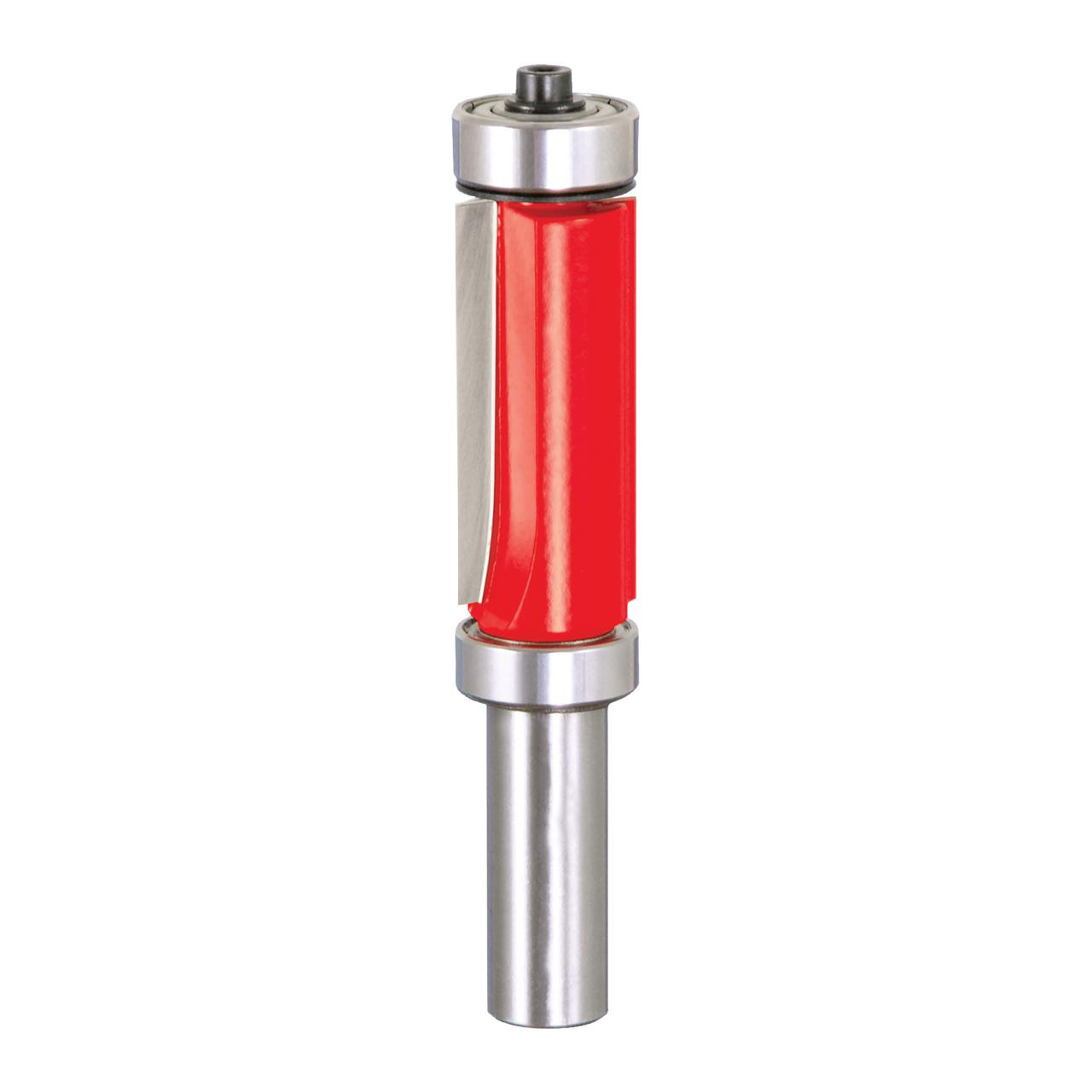

Freud Top & Bottom Bearing Flush Trim Bit 50-50x
Pattern work, laminate routing & general flush trim use
Perfect for templates placed above or below the work piece, or to trim laminates or veneer perfectly flush with countertops, shelving and other projects
Freud’s Top & Bottom Bearing Bits let you rout half the curve in one direction, flip the work piece over and rout the other half in the opposite direction without repositioning your pattern
Use on hand-held routers, laminate trimmers, and table-mounted portable routers
The perfect bits for template routing, the Top & Bottom Bearing Flush Trim Bits allow you to choose the cutting direction that best suits your project or work piece. Ideal for pattern work, these bits are also good for routing laminated tops and general flush trim routing. Use either the top or the bottom bearing for precise flush trim results. Use in hand-held or table-mounted routers.
Perfect for templates placed above or below the work piece, or to trim laminates or veneer perfectly flush with countertops, shelving and other projects
Freud’s Top & Bottom Bearing Bits let you rout half the curve in one direction, flip the work piece over and rout the other half in the opposite direction without repositioning your pattern
Use on hand-held routers, laminate trimmers, and table-mounted portable routers
Cuts all hardwoods, softwoods, plastic laminates and veneered plywood
Ideal For: Patterns, counters, solid surface
TECHNICAL SPECIFICATIONS: 50-501
BEARING DIA. (B) 1/2"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1/2"
OVERALL LENGTH (H) 3-5/16"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1-1/4"
MAX RPM 24000
TECHNICAL SPECIFICATIONS: 50-509
BEARING DIA. (B) 3/4"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 3/4"
OVERALL LENGTH (H) 3-7/8"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 1-5/8"
