Product Description

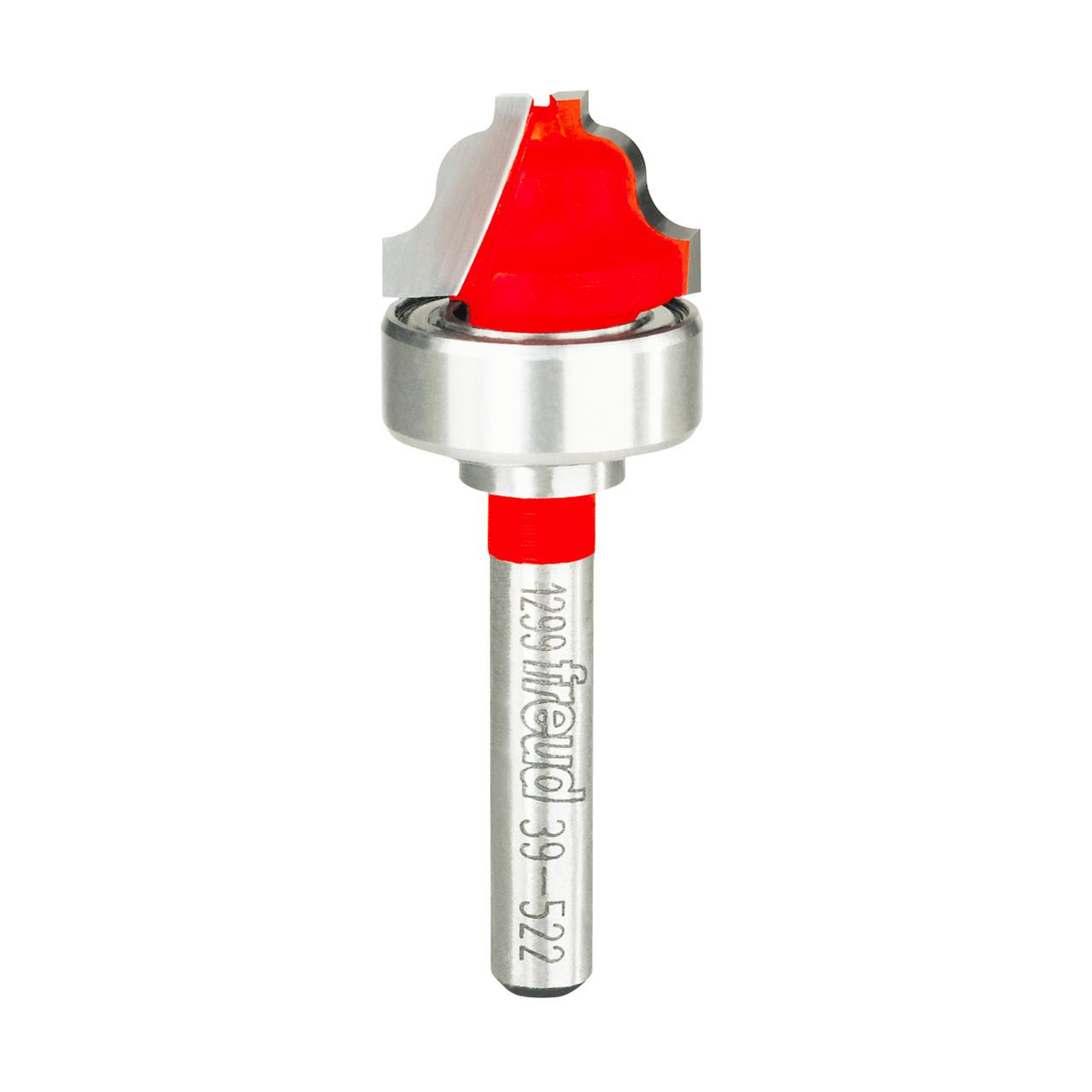

Freud Top Bearing Fillet Ogee Groove Bit
Template work, decorative edges and elaborate grooves

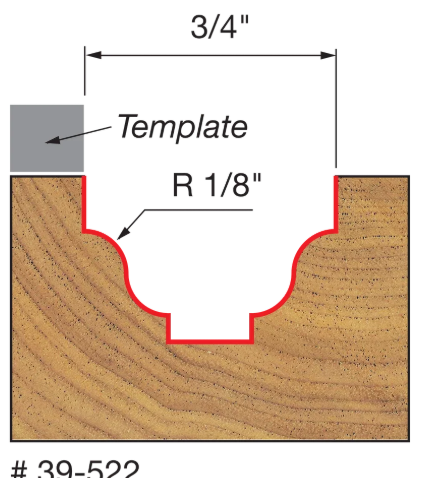

39-522 1/8" Radius Top Bearing Fillet OgeeGroove Bit
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/32"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 3/4"
OVERALL LENGTH (H) 2-3/16"
SHANK DIA. (A) 1/4"
SMALL DIA. (N) 1/4"
CARBIDE HEIGHT (H) 1/2"
RADIUS (R) 1/8"
MAX RPM 24000

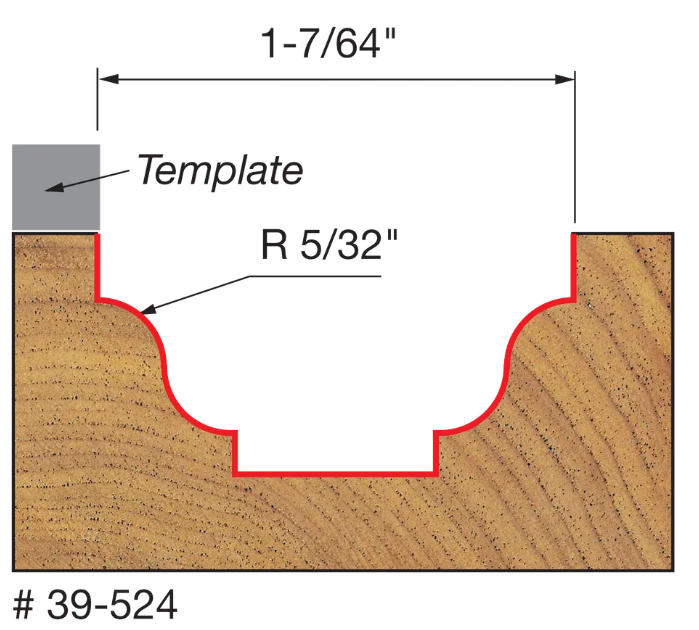

39-524 5/32" Radius Top Bearing Fillet Ogee Groove Bit with 3/8" Shank
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/32"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-7/64"
OVERALL LENGTH (H) 2-1/4"
SHANK DIA. (A) 3/8"
SMALL DIA. (N) 15/32"
CARBIDE HEIGHT (H) 9/16"
RADIUS (R) 5/32"
MAX RPM 18000
