Product Description
Freud LU77M SERIES Medium Aluminum & Non‑Ferrous Blades
This medium stock, non-ferrous metal cutting blade produces an excellent finish. These blades have custom designed gullets to minimize chip build-up and specially formulated carbide for long life. Freud recommends use of a liquid lubricant when cutting. This can be accomplished with a spray of WD-40 or other lubricant every 4 to 5 cuts. Wax sticks are not recommended.
Premium TiCo™ HI-Density Carbide Non-Ferrous Blend for Maximum Performance
Freud-Made TiCo™ Carbide specifically designed to cut nonferrous metals extends tooth life
Thin Kerf allows for faster feed rate and reduced waste
Silver Ice Coating resists corrosion and pitch build-up
Ideal For: Cutting Medium Non-Ferrous Materials And Aluminum. Wall thickness 1/4" Max.

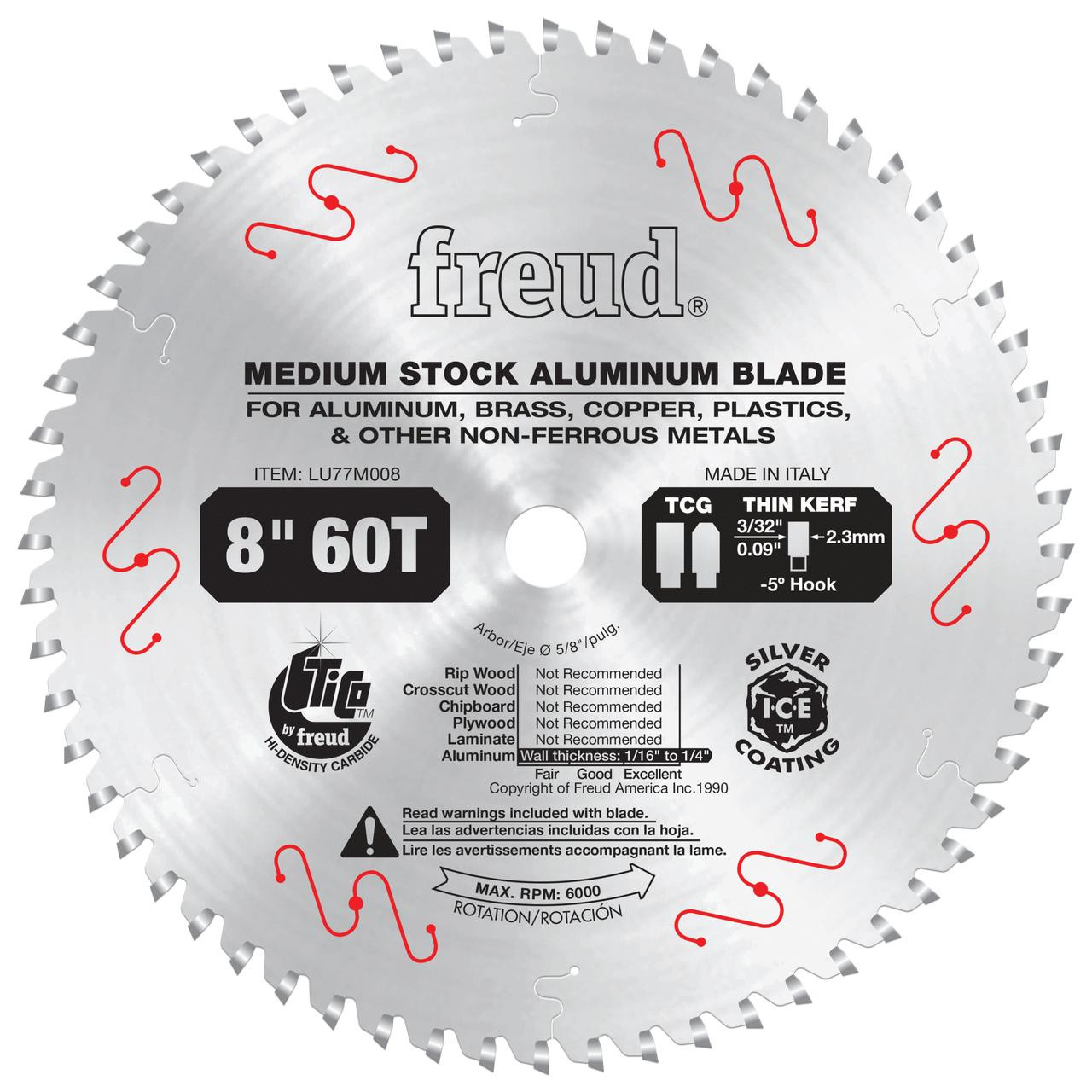

8" Medium Stock Aluminum Blade
Specialty Blade
TECHNICAL SPECIFICATIONS LU77M080
ARBOR 5/8"
DIAMETER 8"
GRIND TCG
HOOK ANGLE -5°
KERF .091"
PLATE .071"
TEETH 60

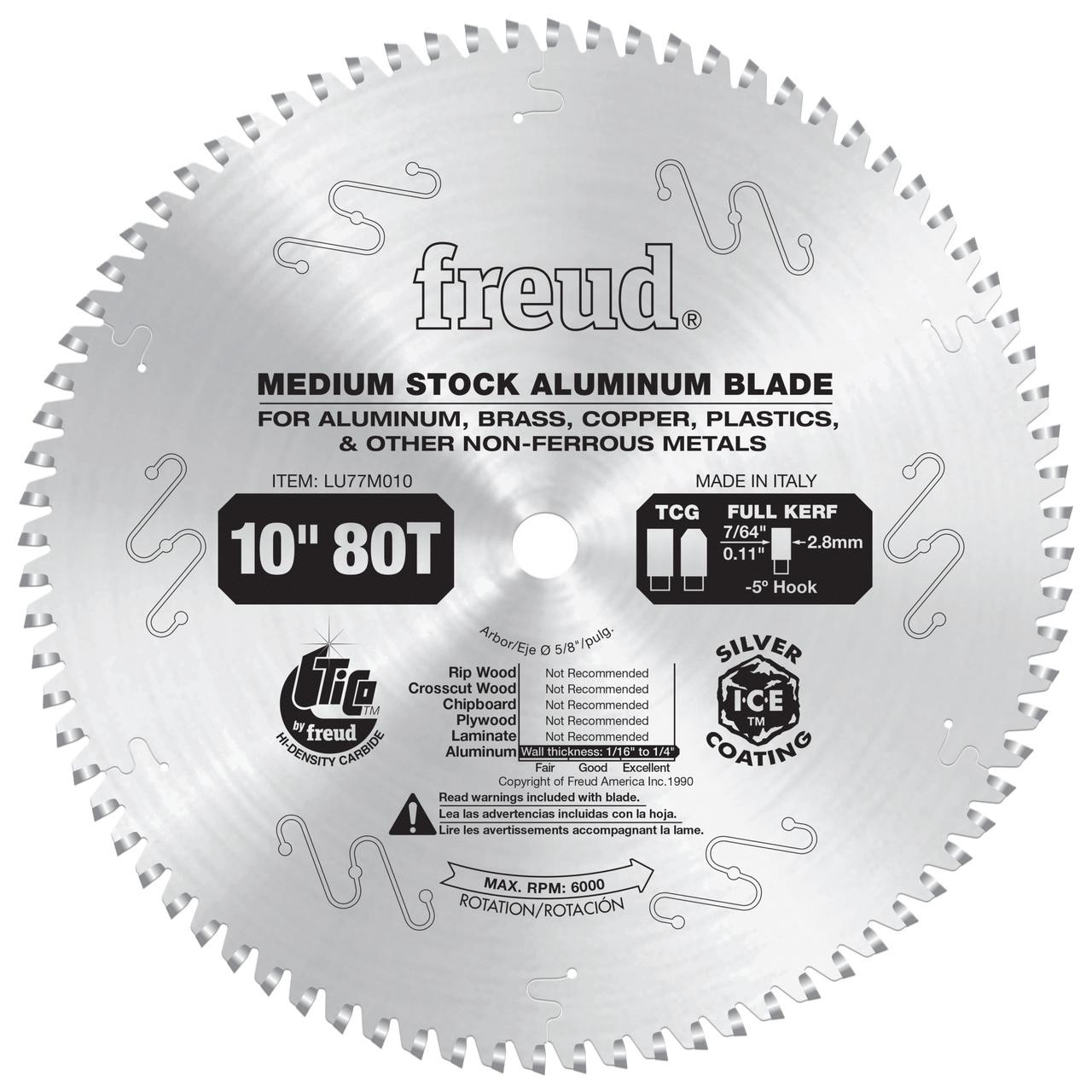

10" Medium Stock
Aluminum Blade
Specialty Blade
TECHNICAL SPECIFICATIONS LU77M010
ARBOR 5/8"
DIAMETER 10"
GRIND TCG
HOOK ANGLE -5°
KERF .110"
PLATE .087"
TEETH 80
12" Medium Stock
Aluminum Blade
Specialty Blade
TECHNICAL SPECIFICATIONS LU77M012
ARBOR 1"
DIAMETER 12"
GRIND TCG
HOOK ANGLE -5°
KERF .110"
PLATE .087"
TEETH 96
