Product Description
Freud 2-11/64" Lock Miter Bit
Creating strong, interlocking corner joints
TECHNICAL SPECIFICATIONS
ANGLE (D) 45°
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 2-11/64"
OVERALL LENGTH (H) 2-3/8"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 7/8"
MAX RPM 16000
Create rock-solid interlocking corner joints with Freud Lock Miter Bits. For 90 degree joints use the 99-034 or 99-035 bits. These bits are designed to rout one piece horizontally on the router table, and the other piece standing vertical. For precise 45 degree joints us the 99-043 set, with one bit routing the tongue and the other bit routing the groove. For routing solid hardwood or softwood on table mounted routers or CNC machines only.
Creates remarkably strong interlocking joints
Best for hardwood and softwood, also routs plywood and composites
Use on CNC or table-mounted routers only

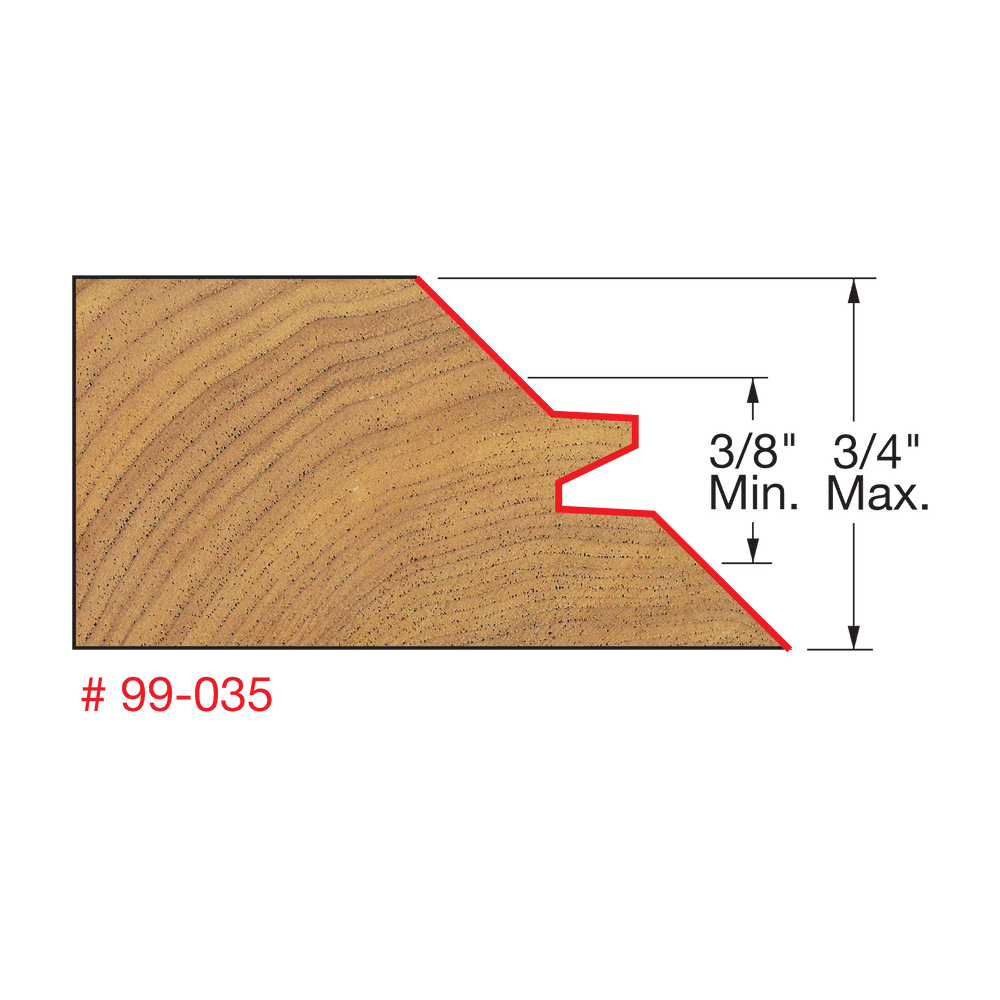

Item 99-035 cuts thinner panels for projects such as humidors and jewelry boxes
Freud Perma-SHIELD® Coating
Ideal For: Creating interlocking 90° corners in 1/2" to 1" stock
