Product Description

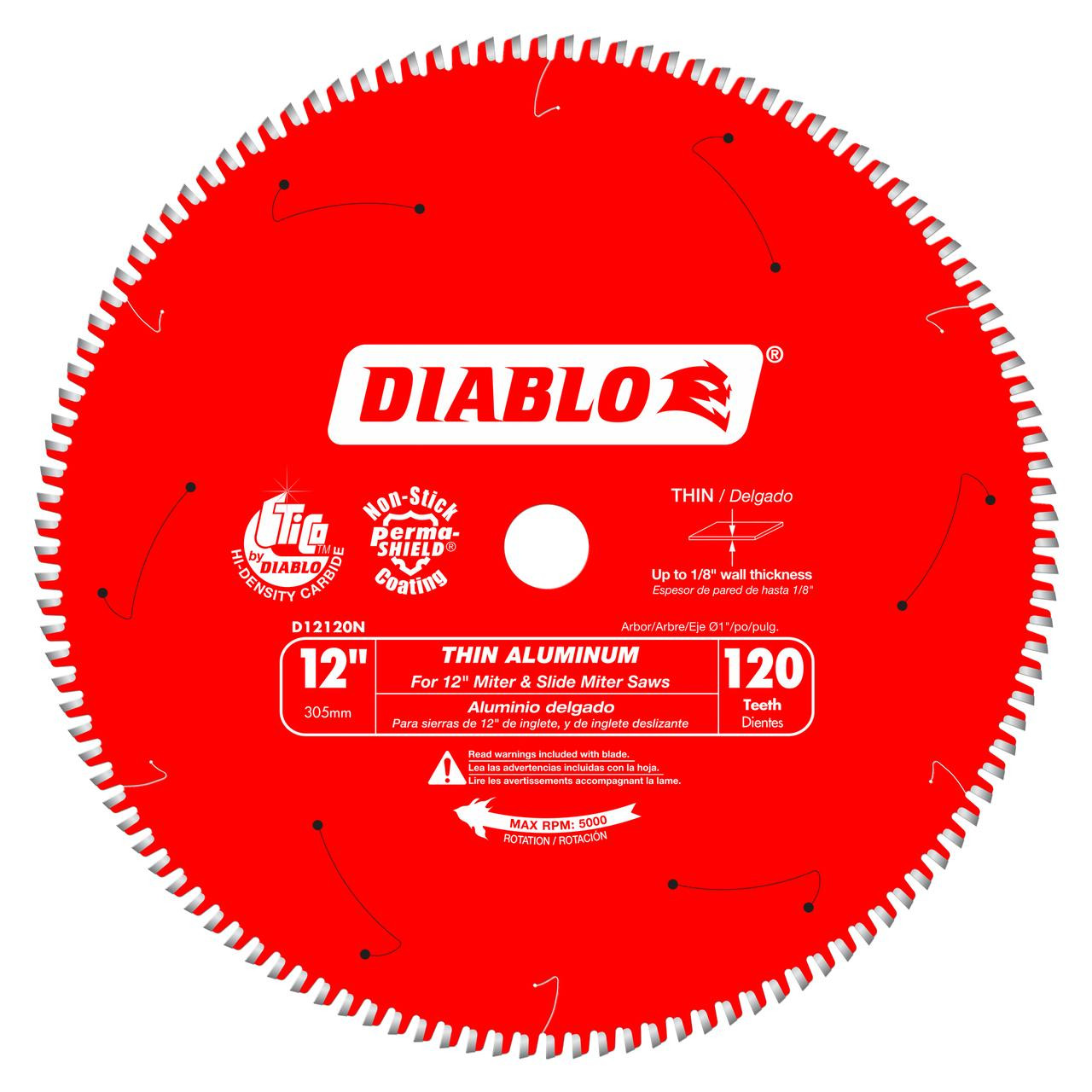

Freud Diablo Thin Aluminum Cutting Saw Blades DN
Thin Aluminum Cutting
Tico™ Super-Density Micro-Grain Carbide for extreme cutting life and clog free cuts
Tri-Metal Shock Resistant Brazing for extreme impact and maximum durability
Triple Chip Grind (TCG) Tooth Geometry for maximum life, speed, and durability, giving clean, burr-free cuts
PRODUCT OVERVIEW
Diablo's next generation Aluminum saw blades are optimized for cutting thin (up to 1/8”), medium (3/32”-1/4”) and thick (3/16”-7/16”) aluminum metals. Featuring the new, specially formulated Diablo TiCo™ Super-Density Micro-Grain Carbide, these radical blades withstand impact, reduce wear, provide clog free cuts and last longer than standard carbide in metal cutting applications. The specially formulated metal cutting carbide teeth feature a Triple Chip Grind (TCG) Tooth Design for clean, burr-free finishes, virtually eliminating any type of rework. Tri-Metal Shock Resistant Brazing allows these Aluminum blades to slice through metal materials while withstanding extreme impact for maximum durability. Diablo's Aluminum saw blade series is ideal for corded and cordless saws when on-the-job cutting non-ferrous metals such as aluminum extrusions, copper pipe, brass plate, etc.
Tico™ Super-Density Micro-Grain Carbide for extreme cutting life and clog free cuts
Tri-Metal Shock Resistant Brazing for extreme impact and maximum durability
Triple Chip Grind (TCG) Tooth Geometry for maximum life, speed, and durability, giving clean, burr-free cuts
Laser-Cut Stabilizer Vents for trapping noise and reducing vibration for accuracy and durability
Perma-SHIELD® Non-Stick Coating for protection against heat, gumming and corrosion
Ideal For: Cutting aluminum, copper, plastics, brass, & fiberglass
TECHNICALSPECIFICATIONS 10"
ARBOR 5/8"
DIAMETER 10"
KERF.091"
TEETH 100
MAX RPM 6000
TECHNICA LSPECIFICATIONS 12"
ARBOR 1"
DIAMETER 12"
HOOK ANGLE-5°
KERF.091"
TEETH 120
MAX RPM 5000
TECHNICAL SPECIFICATIONS 14"
ARBOR 1"
DIAMETER 14"
HOOK ANGLE -5°
KERF.118"
TEETH 108
MAX RPM 5000
