Product Description

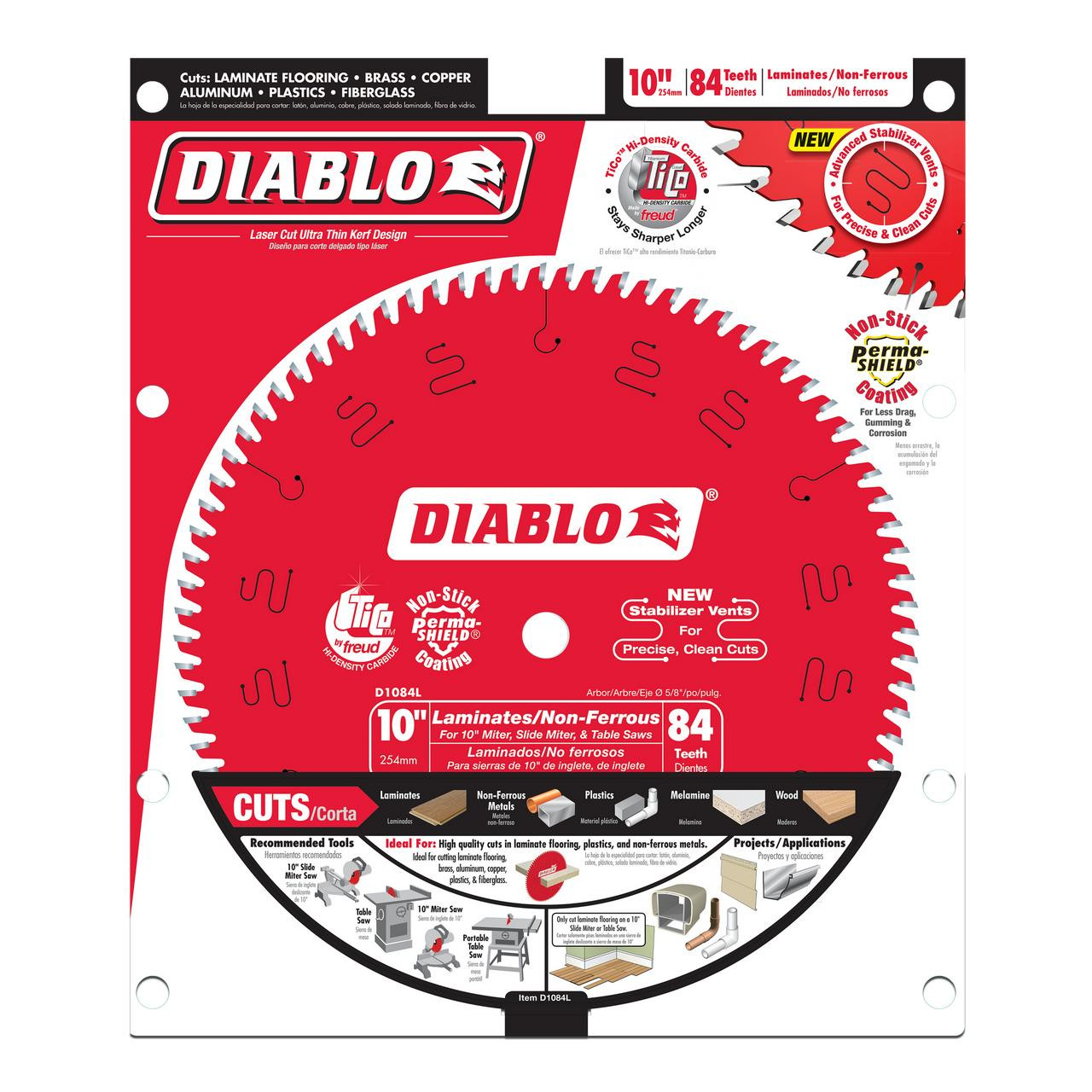

Freud Diablo Laminates & Non-Ferrous Metals Saw Blades DL
Laminate/Non-Ferrous Cutting
TiCo Hi-Density Carbide specifically designed for non-ferrous, plastics, & laminates
Perma-Shield Non-Stick Coating reduces friction, heat build up which adds to longer blade life
Tri-metal shock resistant brazing allows carbide tips to withstand extreme impact for maximum durability
Diablo's specialty Non-Ferrous/Plastics thin kerf blade has a Triple Chip Grind (TCG) Tooth Design for long life and a clean, burr-free finish. Diablo's blade is ideal for on-the-job cutting of nonferrous metal such as copper pipe, aluminum extrusions, brass plate, etc.
TiCo Hi-Density Carbide specifically designed for non-ferrous, plastics, & laminates
Perma-Shield Non-Stick Coating reduces friction, heat build up which adds to longer blade life
Tri-metal shock resistant brazing allows carbide tips to withstand extreme impact for maximum durability
Ideal For: Brass, Aluminum, Copper, Plastics, Laminate Flooring*, Melamine, Wood *Note: Only cut laminate flooring on a 10" slide miter or table saw
Suggested Projects: Flooring, Remodeling/Demolition
TECHNICAL SPECIFICATIONS:10"
ARBOR 5/8"
DIAMETER 10"
HOOK ANGLE 5°
KERF.098"
PLATE.071"
TEETH 84 TCG
MAX RPM 6000
TECHNICAL SPECIFICATIONS:12"
ARBOR 1"
DIAMETER 12"
HOOK ANGLE 5°
KERF.098"
PLATE.071"
TEETH 96 TCG
MAX RPM 5000
