Product Description

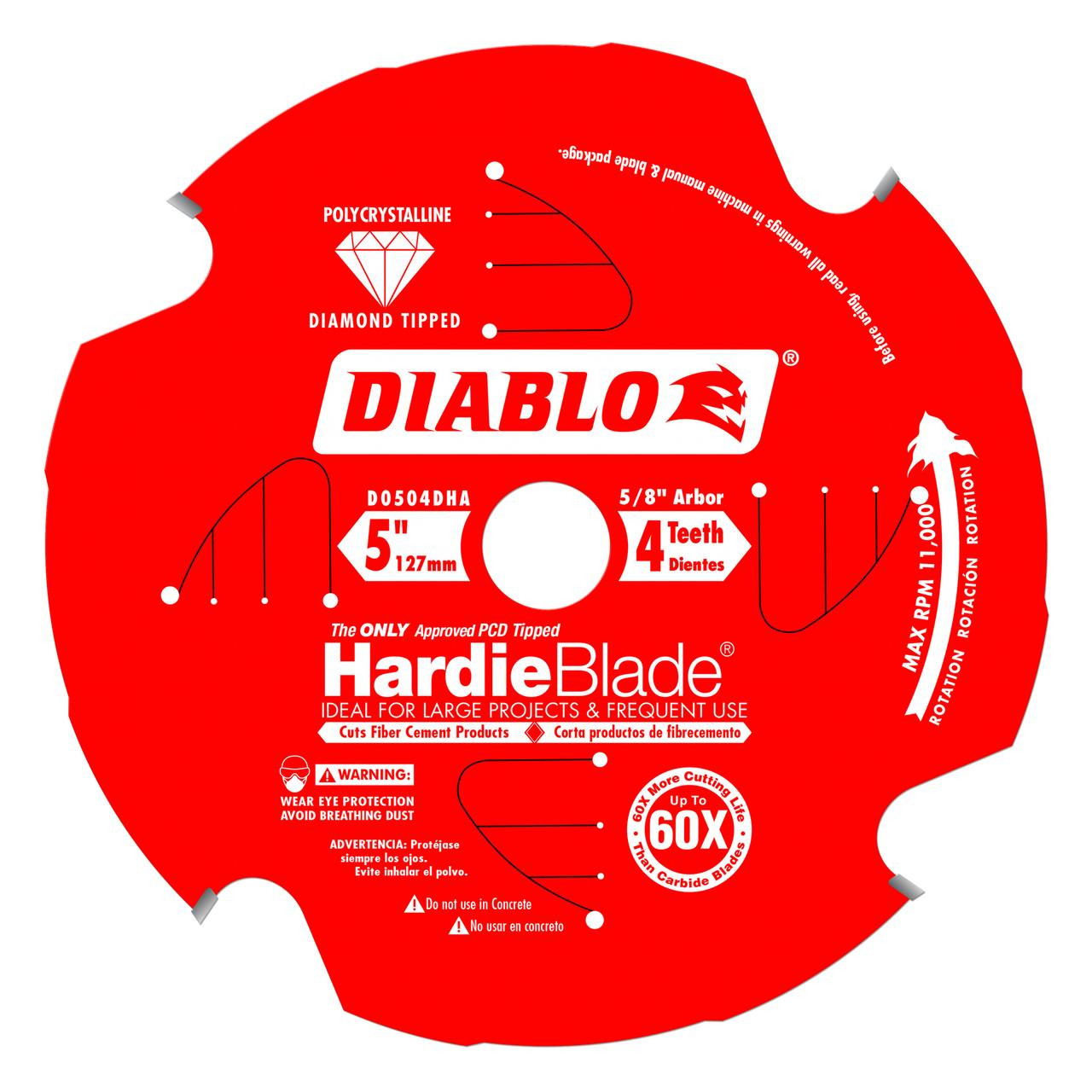

Freud Diablo Fiber Cement Saw Blades DDH
Diablo HardieBlade™ is the only approved PCD (PolyCrystalline Diamond) tipped fiber cement blade recommended by James Hardie Building Products. Diablo Fiber Cement Blades generate up to 50% less respirable dust*, while delivering the longest life in all fiber cement materials. Diablo PCD Hardieblades feature a unique, spark-eroded Triple Chip grind for long life – up to 75 times the life in fiber cement of conventional carbide blades Diablo PCD Hardieblades are perfect for full time use in heavy duty applications like cutting multiple pieces of fiber cement board. * Dust generation does not necessarily correlate directly to exposure risk.
The only approved James Hardie polycrystalline diamond (PCD) tipped fiber cement saw blade
The PCD triple chip design offers up to 75 times longer cutting life than standard carbide blades
Feature a unique, spark-eroded Triple Chip grind for long life – up to 75 times the life in fiber cement of conventional carbide blades
Perfect for full time use in heavy duty applications like cutting multiple pieces of fiber cement board.
Note: Dust generation does not necessarily correlate directly to exposure risk.
Ideal For: Siding, Panels, single & stacked cutting in fiber cement product only
Suggested Projects: Remodeling/Demolition, Siding/Decking, Electrical & Plumbing
TECHNICAL SPECIFICATIONS:5"
ARBOR 5/8"
DIAMETER 5"
HOOK ANGLE 10°
KERF.071"
PLATE.051"
TEETH4 TCG (PCD)
MAX RPM 11000
TECHNICAL SPECIFICATIONS:6-1/2"
ARBOR 5/8"
DIAMETER 6-1/2"
HOOK ANGLE 10°
KERF.071"
TEETH4 TCG (PCD)
MAX RPM 10000
TECHNICAL SPECIFICATIONS:7-1/4"
ARBOR 5/8"
DIAMETER 7-1/4"
HOOK ANGLE 10°
KERF.071"
PLATE.051"
TEETH4 TCG (PCD)
MAX RPM 10000
TECHNICAL SPECIFICATIONS:10"
ARBOR 5/8"
DIAMETER 10"
HOOK ANGLE 10°
KERF.087"
PLATE.063"
TEETH6 TCG (PCD)
MAX RPM 6000
TECHNICAL SPECIFICATIONS:12"
ARBOR 1"
DIAMETER 12"
HOOK ANGLE 10°
KERF.087"
PLATE.063"
TEETH8 TCG (PCD)
MAX RPM 6000
