Product Description
Freud Beaded 2-3/8" Recoverable Bead Glass Door Bit Set 99-283
Routing 3/4"-thick panels that are flush with the doorframe
TECHNICAL SPECIFICATIONS
BEARING DIA. (B) 1-1/4"
MINOR HEIGHT (M) 1/8"
OVERALL DIA. (D) 2-3/8"
OVERALL LENGTH (H) 3"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 7/8"
RADIUS (R) 15/64"
MAX RPM 12000
PRODUCT OVERVIEW:

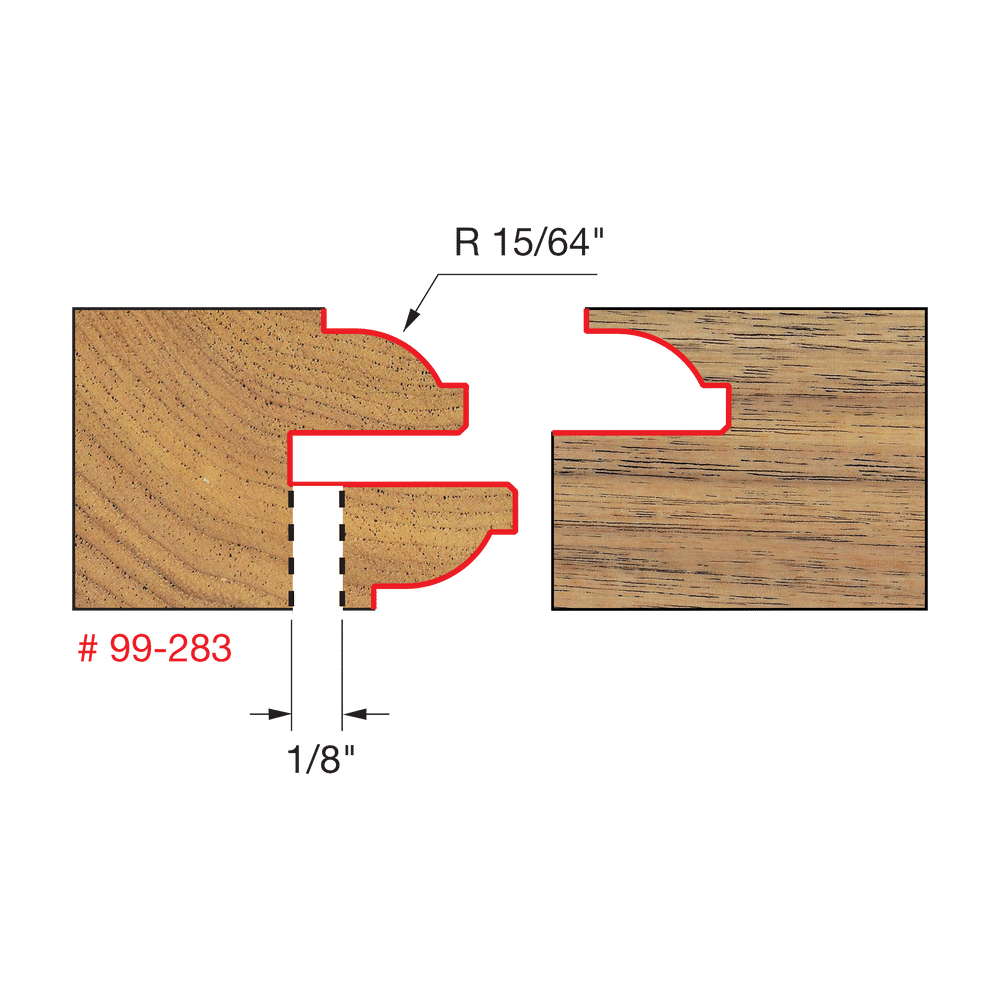

The Recoverable Bead System is ideal for high-quality china cabinets and other furniture applications that require glass doors that look perfect from the front and back. Each bit produces a unique profile on the front of the door and a matching profile on the back that can be removed with a 1/8" kerf saw blade, then miter cut to make a bead to secure the glass panel. Offered in three profiles to suit any design requirement. 99-281 produces an ogee profile, 99-280 produces a quarter round profile, and 99-283 produces a beaded profile. For use in router tables only to route hardwood or softwood door elements.
Routs matching profiles for both sides of the door for the highest-quality projects
Use a 1/8" kerf blade to remove the back profile to install glass
Use on table-mounted routers only
Ideal for hardwood or softwood doors
Freud Perma-SHIELD® Coating
Ideal For: Building glass panel doors with matching wooden profiles on both sides
