Product Description

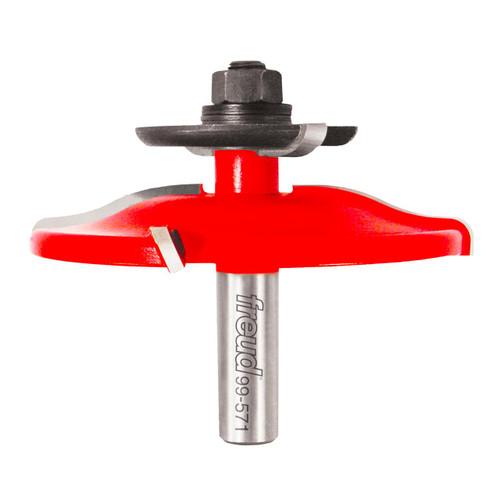

Freud 3-1/2" Raised Panel Bit With Backcutters 99-571
Routing 3/4"-thick panels that are flush with the doorframe
TECHNICAL SPECIFICATIONS
LARGE RADIUS (R1) 1-3/16"
NUMBER OF CUTTERS 4
OVERALL DIA. (D) 3-1/2"
OVERALL LENGTH (H) 3"
SHANK DIA. (A) 1/2"
SMALL RADIUS (R2) 5/32"
CARBIDE HEIGHT (H) 1"
MAX RPM 12000
PRODUCT OVERVIEW:
These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut™ design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.
Bits include backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame

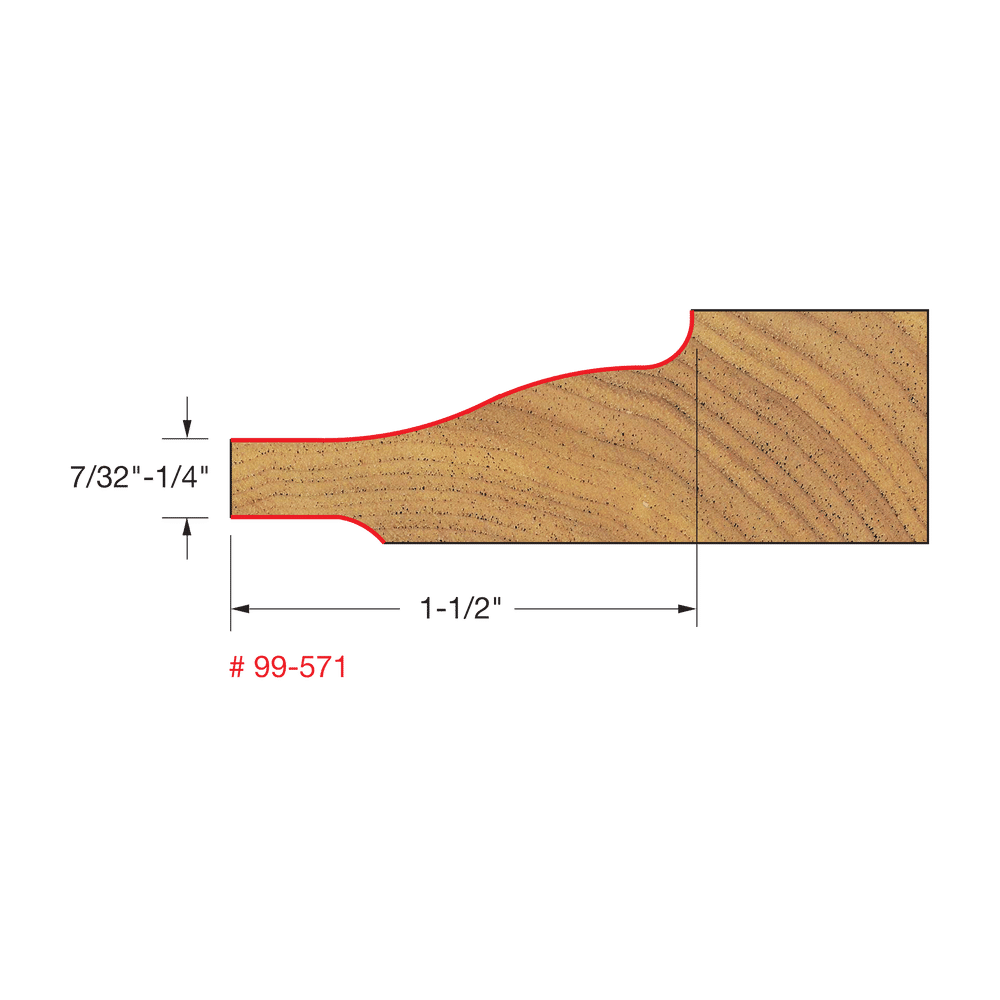

Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
Cuts all composition materials, plywoods, hardwoods, and softwoods
Use in table-mounted routers with fence only
Freud Perma-SHIELD® Coating
Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling
