Product Description
Freud 2" Glass Panel Cabinet Door Bit Set 99-286
Building beautiful glass panel doors quickly & easily

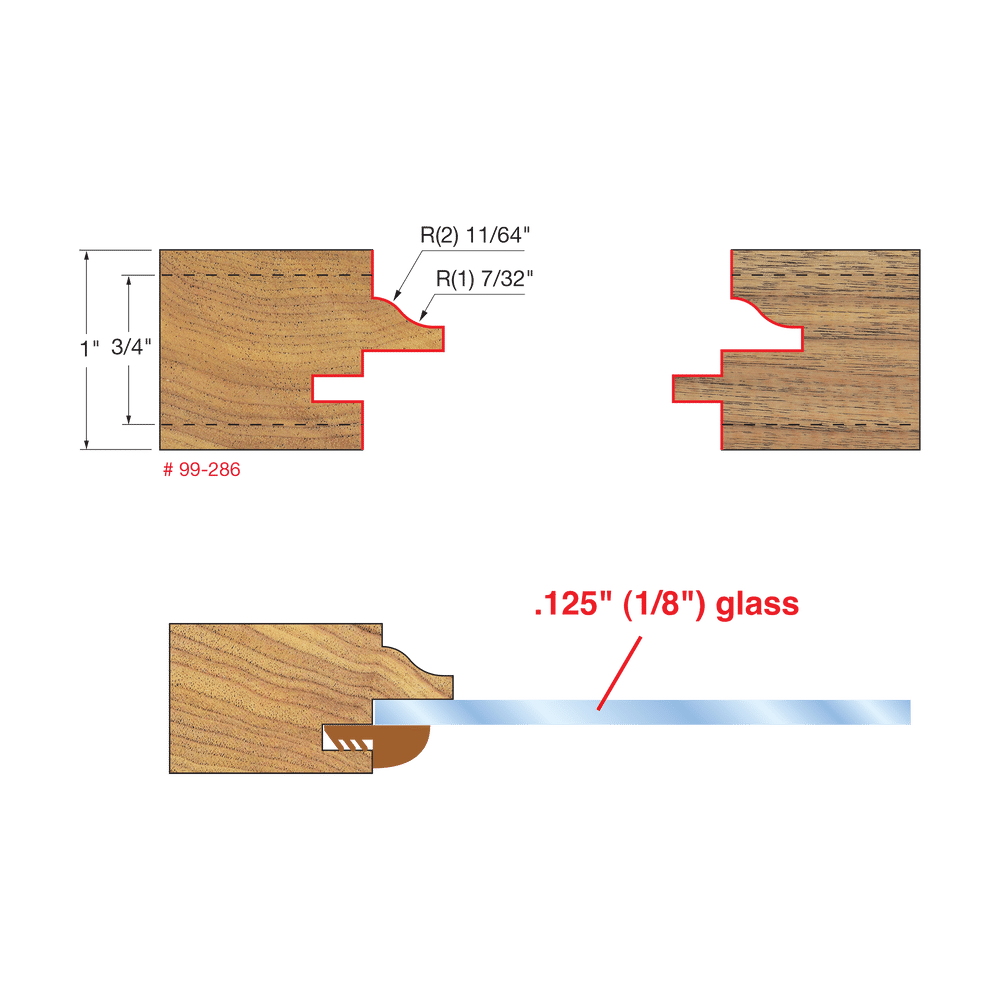

TECHNICAL SPECIFICATIONS
BEARING DIA. (B) 16mm
LARGE RADIUS (R1) 7/32"
OVERALL DIA. (D) 2"
OVERALL LENGTH (H) 3-1/8"
SHANK DIA. (A) 1/2"
SMALL RADIUS (R2) 11/32"
CARBIDE HEIGHT (H) 1-3/32"
MAX RPM 16000
USED IN COMBINATION WITH GM005
PRODUCT OVERVIEW:
Freud's Glass Panel Cabinet Door Set is the fast, easy way to build strong, tight-fitting glass panel door joints. The unique cutter shape cuts extra strong rail and stile joints with a unique lock in the stile and rail joint, plus significantly more gluing surface. No other set on the market provides this feature. Order the GM005 Glass Panel Spline Molding (sold separately) to secure the glass in place. Use in table-mounted routers to rout hardwood or softwood door parts.
Builds beautiful doors with the strongest possible rail & stile joints
Easy time saving set-up improves accuracy and increases profitability for the professional
Use on table-mounted routers to rout hardwood or softwood
Freud Perma-SHIELD® Coating
Ideal For: Glass panel doors with strong joints and removable plastic bead
