Product Description

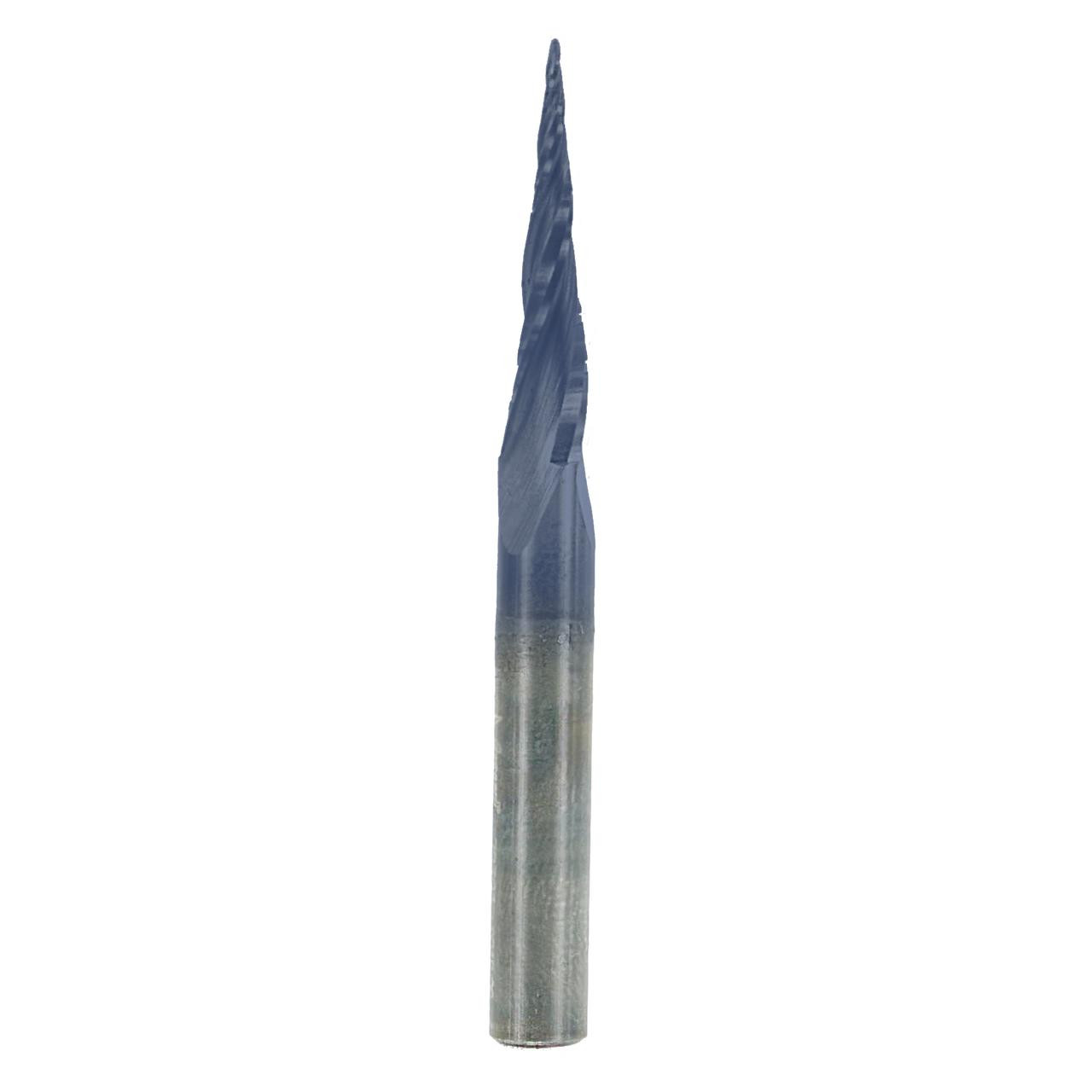

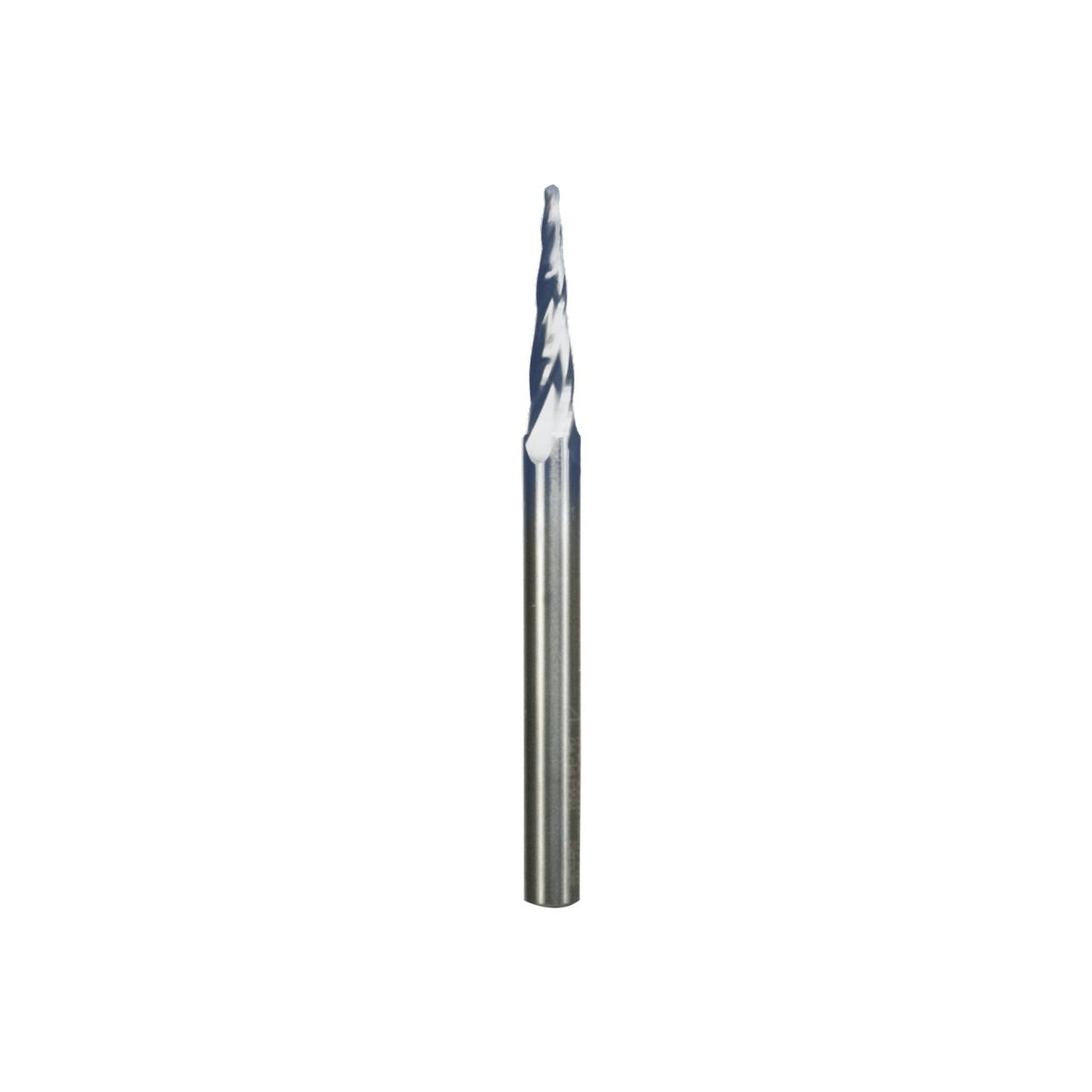

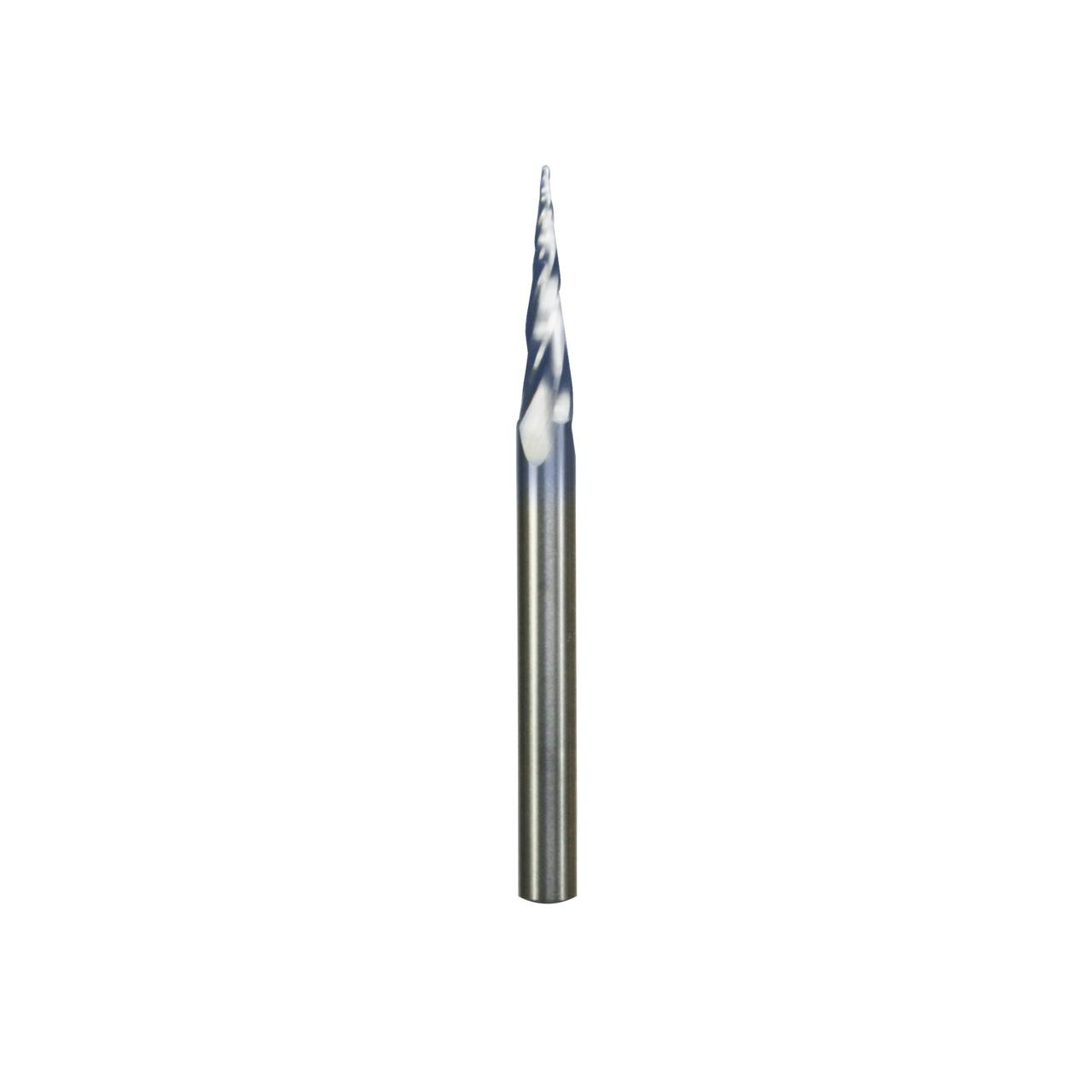

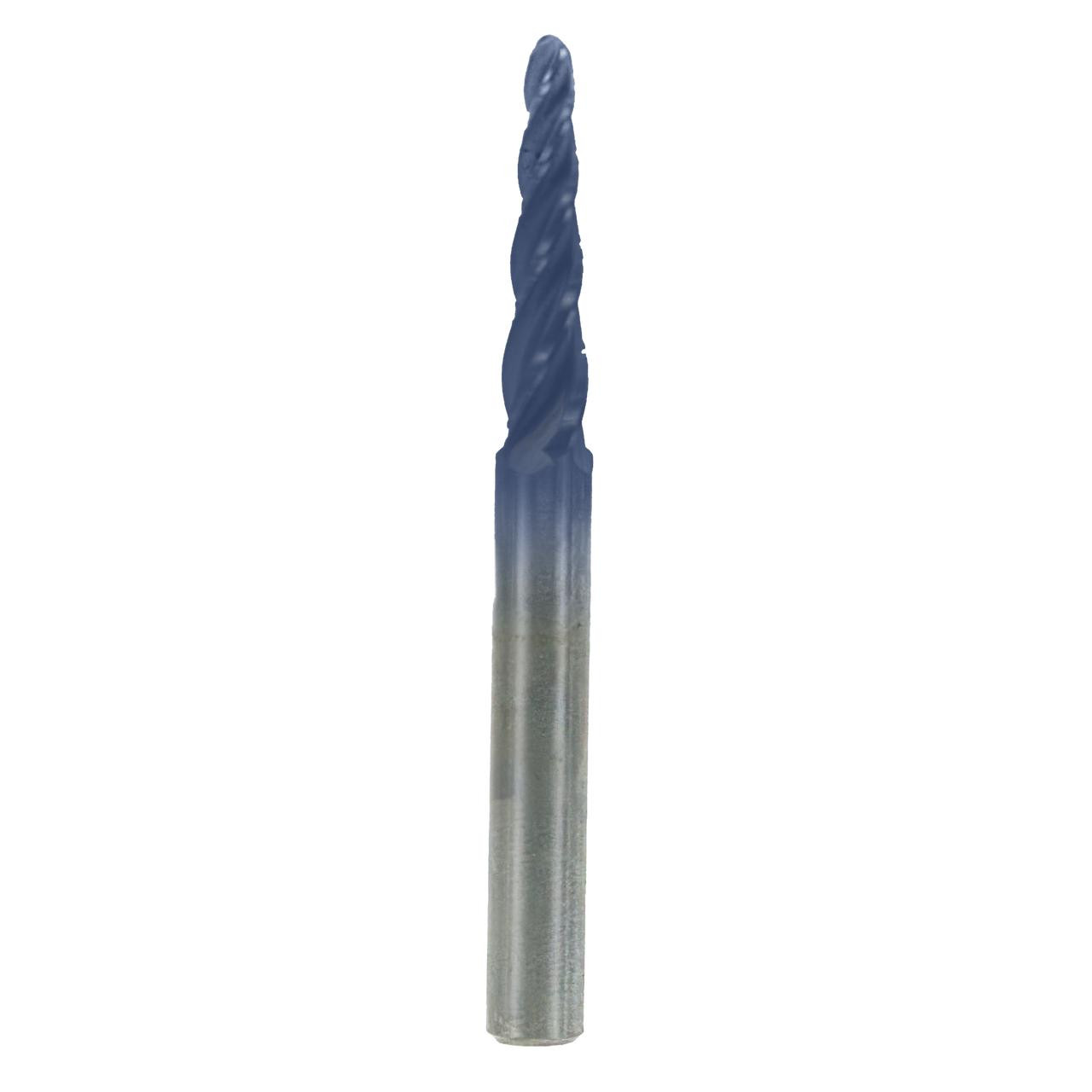

Freud 1/4" Shank Tapered Ball Tip Bits 72-xxx
Ideal for Wood, Wood Composites, Plastics (Hard & Soft), and Aluminum for 2D and 3D Carving
Specifically designed for CNC Makers to deliver long cutting life, maximum durability and high quality finish
Enhanced TiCo™ Super Density Carbide with chromium designed and manufactured by Freud for 2x cutting life
Advanced cutting geometry for superior chip evacuation and finish quality
TECHNICAL SPECIFICATIONS: 72-300
ANGLE (D) 6.2°
NUMBER OF CUTTERS 3
OVERALL DIA. (D) 1/32"
OVERALL LENGTH (H) 3"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1"
RADIUS (R) 1/64"
MAX RPM 24000
ANGLE (INCLUDED) 12.4°
ANGLE (SIDE) 6.2°
6.2° x 1/32" Tapered Ball Tip
Ideal for Wood, Wood Composites, Plastics (Hard & Soft), and Aluminum for 2D and 3D Carving
TECHNICAL SPECIFICATIONS: 72-301
ANGLE (D) 6.2°
NUMBER OF CUTTERS 3
OVERALL DIA. (D) 1/32"
OVERALL LENGTH (H) 2-1/2"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1"
RADIUS (R) 1/64"
MAX RPM 24000
ANGLE (INCLUDED) 12.4°
ANGLE (SIDE) 6.2°
5.4° x 1/16" Tapered Ball Tip
A great choice for 2D or 3D carving work in plastics or wood. Ideal for Wood, Wood Composites, Plastics (Hard & Soft), and Aluminum for 2D and 3D Carving.
TECHNICAL SPECIFICATIONS: 72-400
ANGLE (D) 5.4°
NUMBER OF CUTTERS 4
OVERALL DIA. (D) 1/16"
OVERALL LENGTH (H) 3"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1"
RADIUS (R) 1/32"
MAX RPM 24000
ANGLE (INCLUDED) 10.8°
ANGLE (SIDE) 5.4°
TECHNICAL SPECIFICATIONS: 72-401
ANGLE (D) 5.4°
NUMBER OF CUTTERS 4
OVERALL DIA. (D) 1/16"
OVERALL LENGTH (H) 2-1/2"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1"
RADIUS (R) 1/32"
MAX RPM 24000
ANGLE (INCLUDED) 10.8°
ANGLE (SIDE) 5.4°
TECHNICAL SPECIFICATIONS:
72-405
ANGLE (D) 7°
NUMBER OF CUTTERS 4
OVERALL DIA. (D) 1/8"
OVERALL LENGTH (H) 2-1/2"
SHANK DIA. (A) 1/4"
CARBIDE HEIGHT (H) 1"
RADIUS (R) 1/16"
MAX RPM 24000
ANGLE (INCLUDED) 7.2°
ANGLE (SIDE) 3.6°
