Product Description

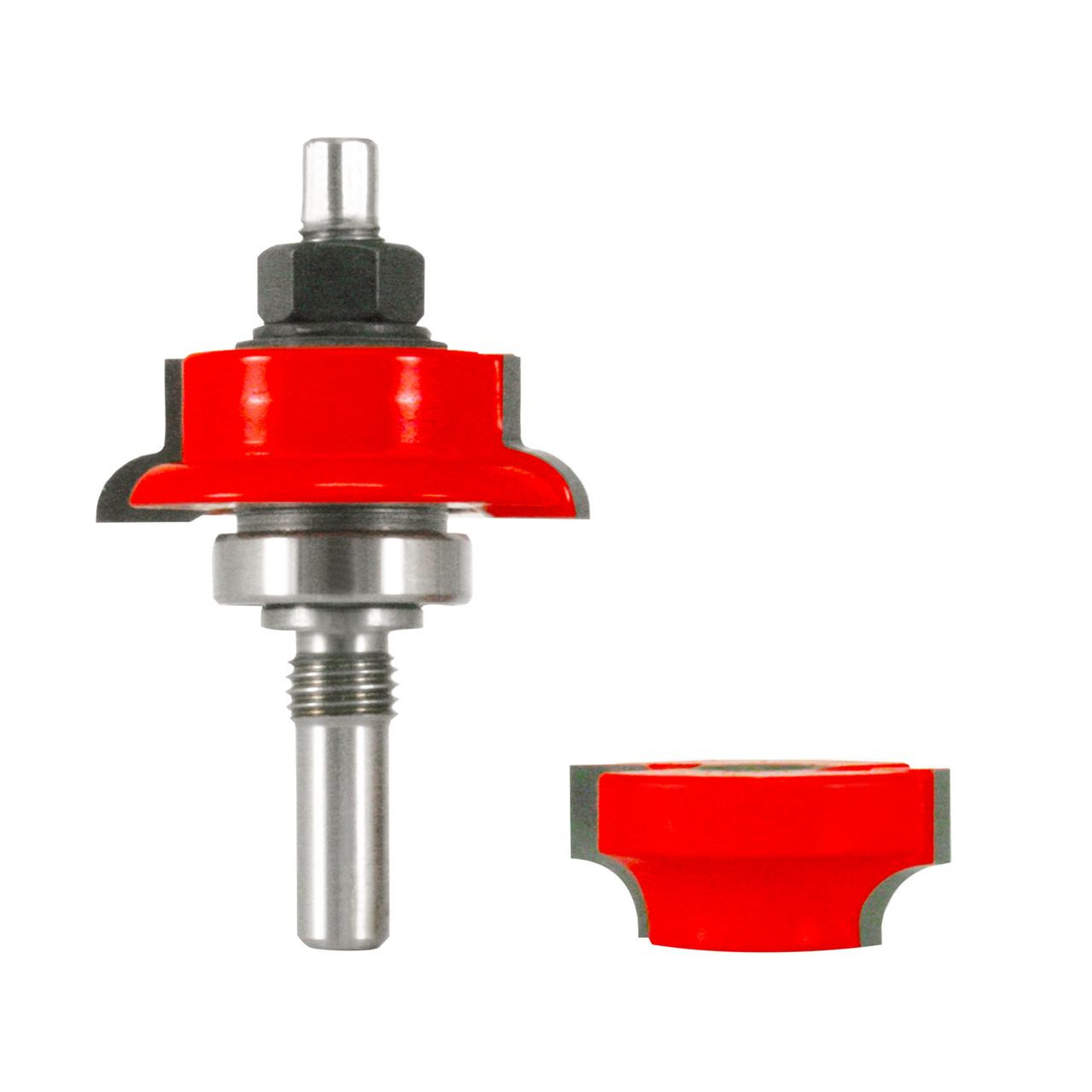

Freud 1-11/16" Premier Adjustable Rail & Stile Bit - Round Over 99-860
Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock
TECHNICAL SPECIFICATIONS
LARGE RADIUS (R1) 7/32"
OVERALL DIA. (D) 1-11/16"
OVERALL LENGTH (H) 3-13/16"
SHANK DIA. (A) 1/2"
MAX RPM 16000
USED IN COMBINATION WITH
#99-760 - 1-11/16" Premier Adjustable Rail & Stile Bit - Round Over
PRODUCT OVERVIEW:
Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
Patented Extended Tenon Capability for milling extra-strong long tenon joints
Unique cutter geometry to eliminate tearout
TiCo™ Hi-Density Carbide to maximize bit life and material finish
Freud Perma-SHIELD® Coating
Ideal For: producing extra-strong long tenon joints
