Product Description

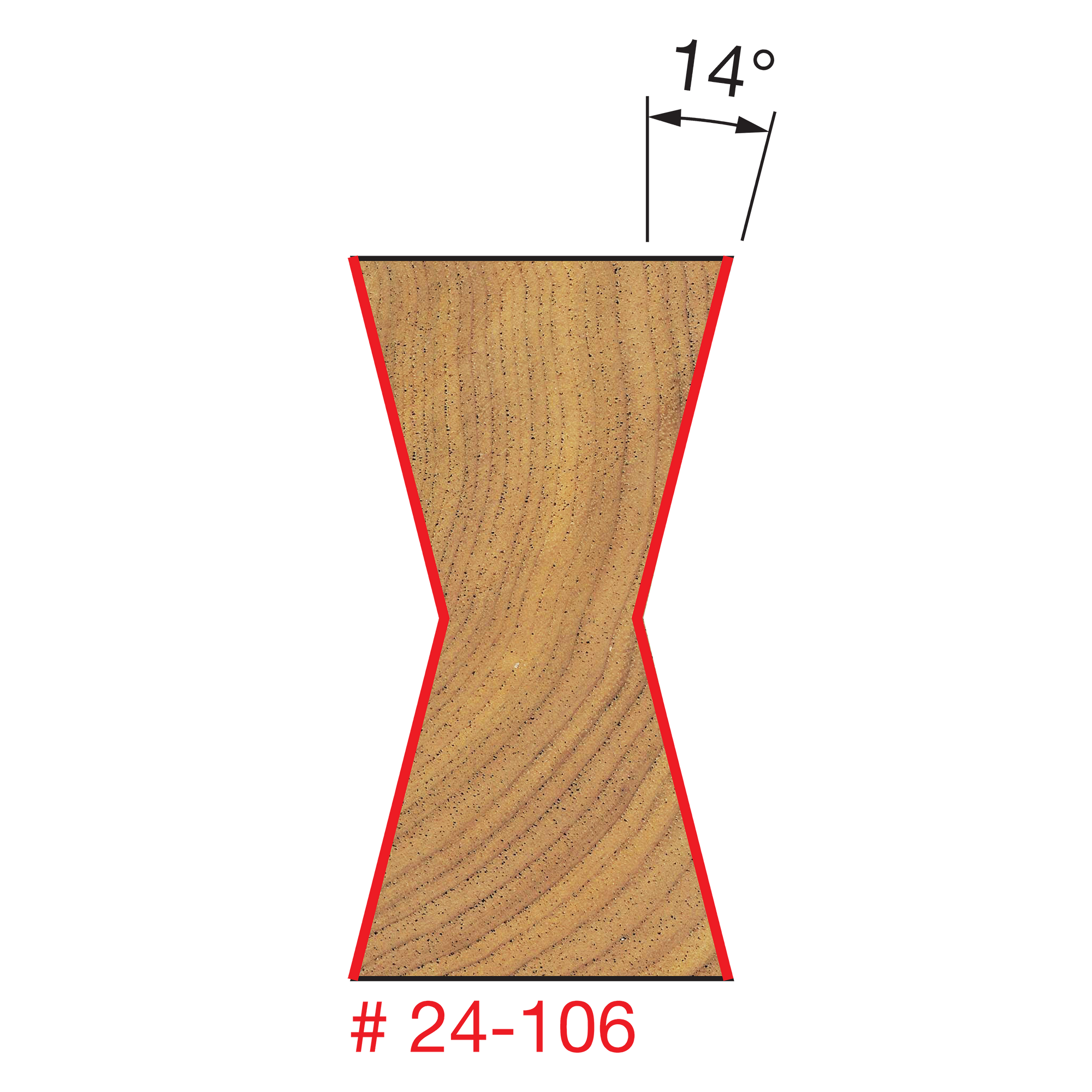

Freud 1-1/8" Butterfly Spline Bitt 24-106
Sturdy, decorative solution for exposed joints
TECHNICAL SPECIFICATIONS
ANGLE (D) 14°
MINOR HEIGHT (M2) 11/16"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-1/8"
OVERALL LENGTH (H) 3-1/4"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 1-3/4"
MAX RPM 18000
PRODUCT OVERVIEW:
The Butterfly Spline is a beautiful solution for exposed joints. Two passes with this bit produce the concave butterfly spline from your choice of hardwood or softwood. Then use a 14-degree dovetail bit to (sold separately) to produce the mating grooves. For best results use in table-mounted or CNC routers.
Build beautiful spline joints in solid wood
Routs butterfly splines from hardwood or softwood
Best for use in table-mounted or CNC routers
Freud Perma-SHIELD® Coating
Ideal For: Creating decorative splines for exposed joints
