Product Description
Freud 1‑1/2" Window Sash & Rail Bits
Building complete divided lite window sashes

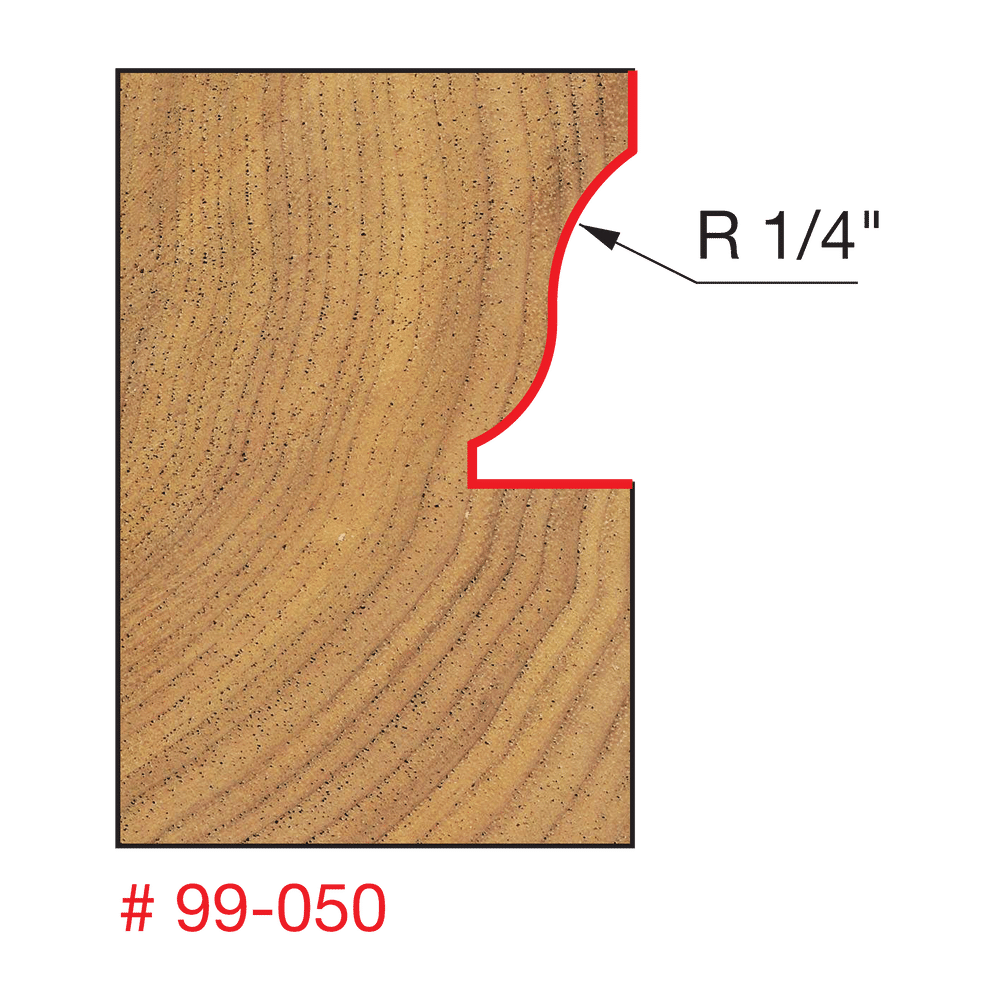

99-050 1-1/2" Window Sash & Rail Bit
This Bit Copes The Rails
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 1/16"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-1/2"
OVERALL LENGTH (H) 2-1/16"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 39/64"
RADIUS (R) 1/4"
MAX RPM 16000

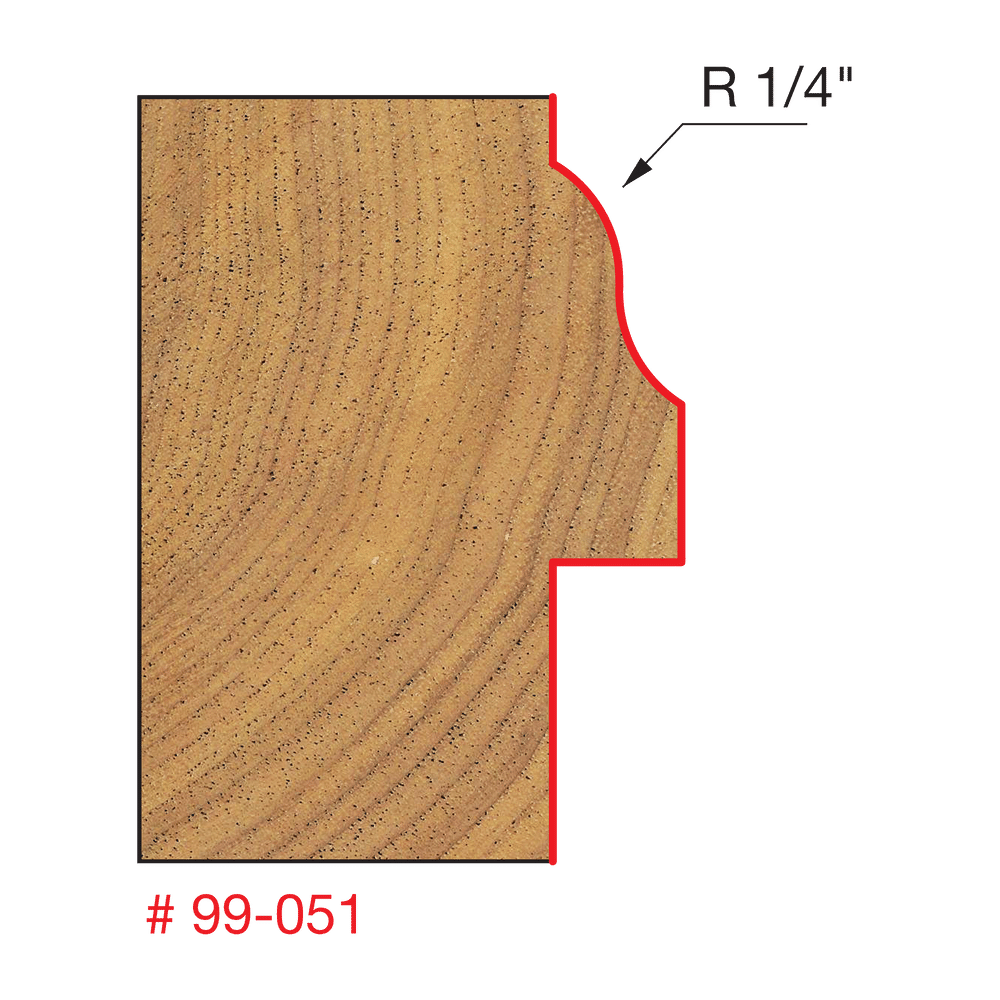

99-051 1-11/32" Window Sash & Rail Bit
This Bit Cuts The Profile
TECHNICAL SPECIFICATIONS
BEARING DIA. (B) 22mm
MINOR HEIGHT (M) 17/32"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-11/32"
OVERALL LENGTH (H) 3-7/16"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 1-25/64"
RADIUS (R) 1/4"
MAX RPM 16000
PRODUCT OVERVIEW:
The two bits in Freud's Window Sash and Rail family work together to produce a complete divided lite sash. The 99-050 copes the rails, sash bars and muntins, while 99-051 cuts the profile on all components. Bits are sold separately, and include an instruction manual. Use in table-mounted routers with fence only, suitable for hardwood or softwood.
Used together, these bits produce all parts for a complete wood sash window
The 99-050 copes the rails, sash bars and muntins, while 99-051 cuts the profile on all components
Use with table-mounted routers only
Rout window parts from hardwood or softwood
Freud Perma-SHIELD® Coating
Ideal For: Producing a complete divided lite sash
