Product Description

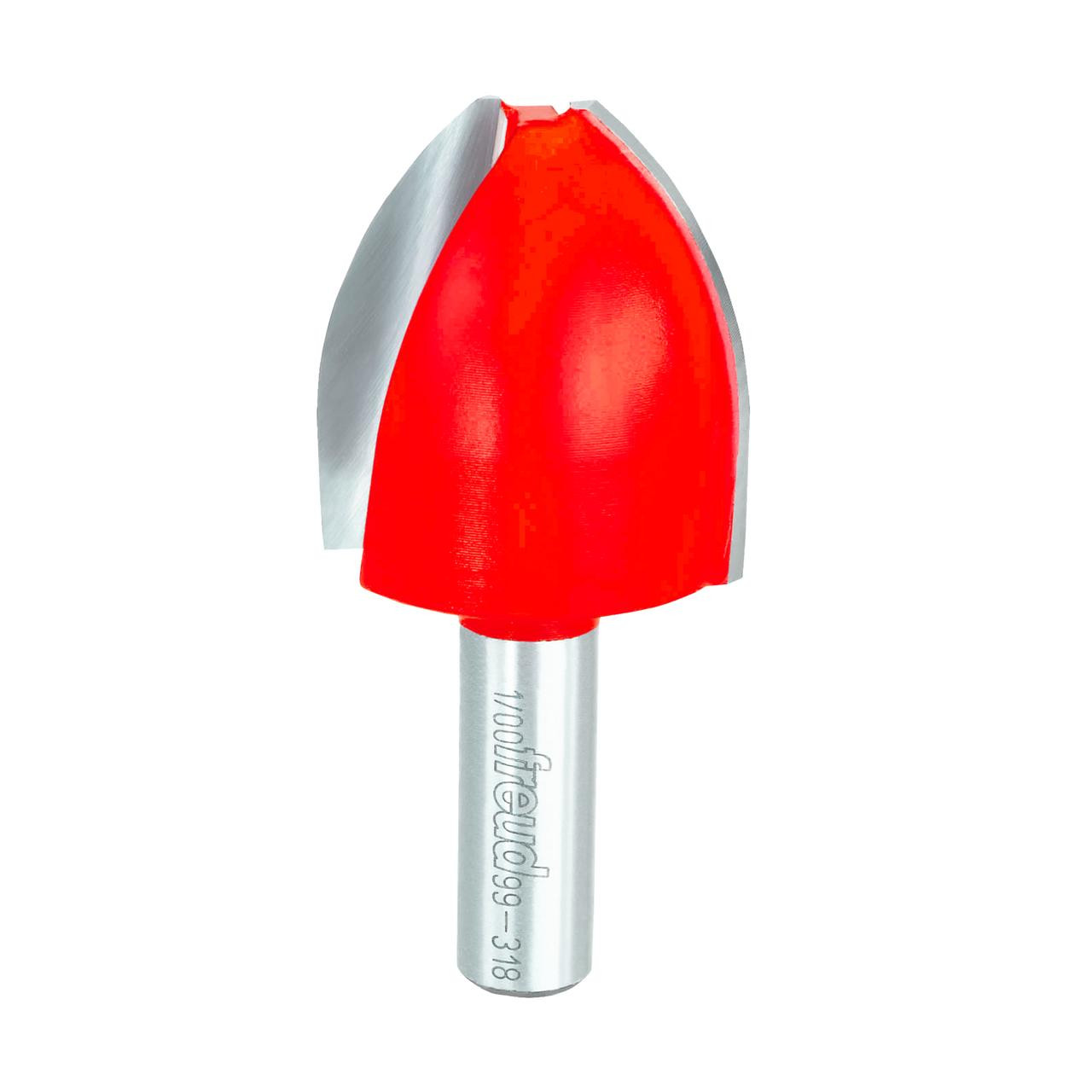

Freud 1-1/2" Vertical Raised Panel Bit 99-318
Routing 3/4"-thick panels that are flush with the doorframe
TECHNICAL SPECIFICATIONS
LARGE RADIUS (R1) 1-1/2"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-1/2"
OVERALL LENGTH (H) 3-3/16"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 1-5/8"
MAX RPM 16000
PRODUCT OVERVIEW:
The smaller overall diameter of the Vertical Panel bits make them ideal for lower horsepower routers and single speed routers. Offered in four of the most popular profiles to suit most projects. These bits must be used in table-mounted routers equipped with a sturdy fence. They will rout all hardwood, softwood, plywood and composites.
Smaller diameter than conventional raised panel bits allow use with lower-horsepower routers
Cuts all composition materials, plywoods, hardwoods, and softwoods
Use on table-mounted routers with sturdy fences only
Freud Perma-SHIELD® Coating
Ideal For: Lower horsepower routers and single speed routers
