Product Description

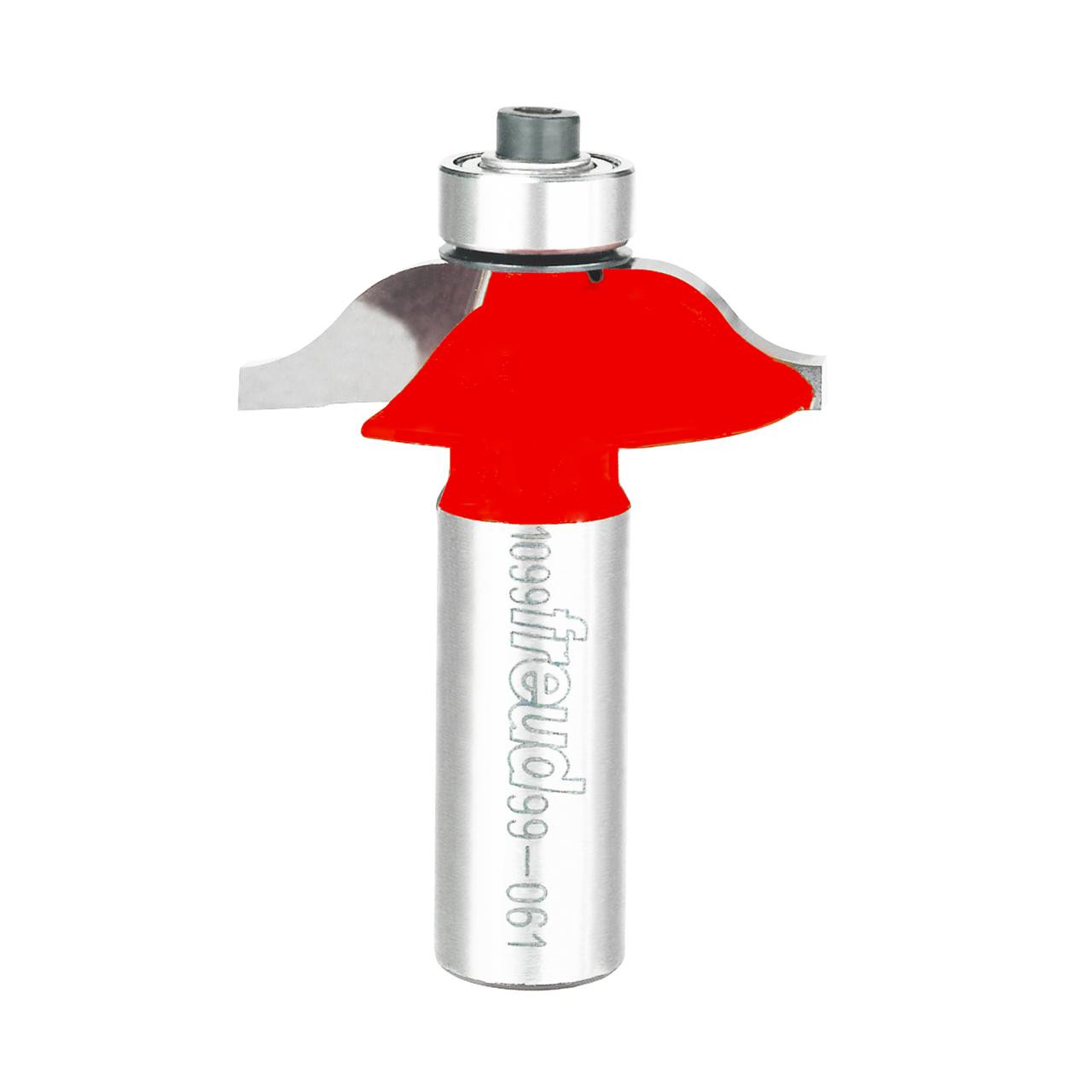

Freud 1-1/2" Rail & Stile Profile Bit 99-061
Creates matched reverse profiles for rail and stile doors
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 1/8"
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-1/2"
OVERALL LENGTH (H) 2-1/4"
SHANK DIA. (A) 1/2"
CARBIDE HEIGHT (H) 3/8"

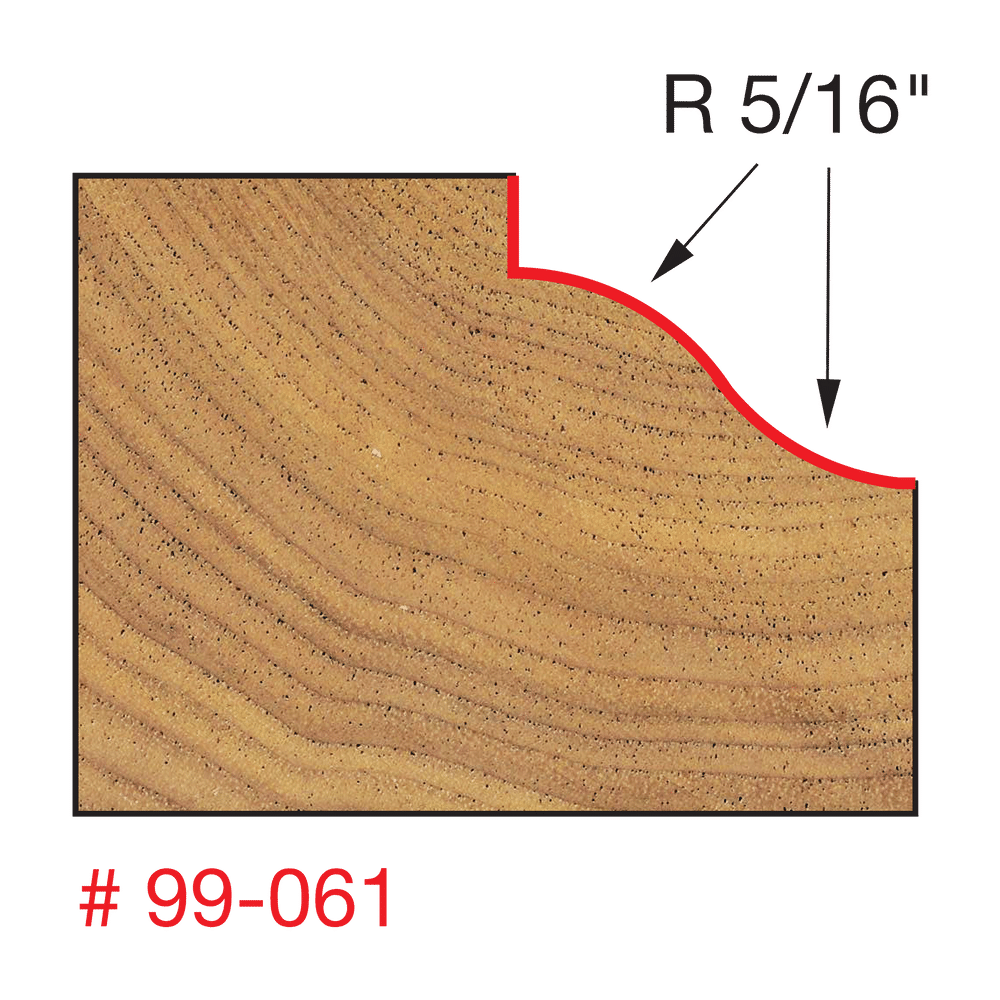

RADIUS (R) 5/16"
MAX RPM 16000
PRODUCT OVERVIEW:
These cleverly-designed bits produce both the rail and stile ogee shapes for your doors with a single bit. Use the 99-060 or 99-061 bits to rout cope and stick profile cuts on the rails and stiles. Then use the 99-062 to rout the panel slot and the back of the tongue on the coped piece. The result is a complete rail and stile match for any cabinet door project. Use with hand-held or table-mounted routers to cut hardwood or softwood door parts.
One profile bit routs the rail and stile shapes on both stile and rail
Add the 99-062 to rout the panel slot and back of the rail cut
Use with hand-held or table-mounted routers to cut hardwood or softwood door parts
Freud Perma-SHIELD® Coating
Ideal For: Matching, reversible profiles for cope & stick joints
