Product Description

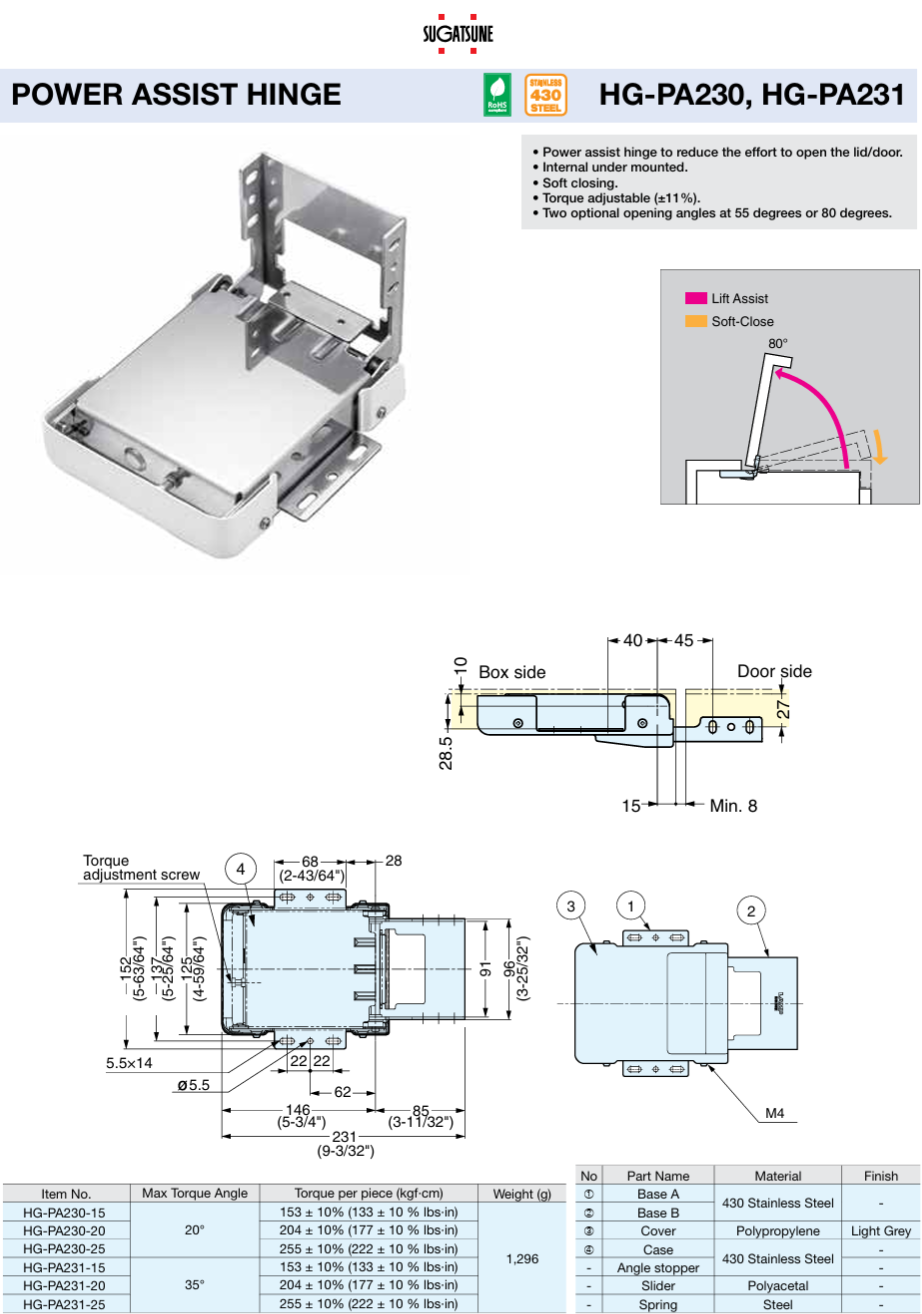

SUGATSUNE HG-PA230 - HG-PA231 POWER ASSIST HINGE 2 TORQUE ANGLES 3 TORQUE OPTIONS
The torque peaks at 20 degrees or 35 degrees depending on the lid shape.
Easy to lift heavy top-opening lid with spring tension (lift assist function).
Smooth and soft-closing movement at the end, preventing lid from slamming shut.
Torque is adjustable by turning the adjustment screw (+/-5%).
Able to limit the 140 degrees opening angle to 55 degreesor 80 degreeswith use of the included stopper plate.
• Power assist hinge to reduce the effort to open the lid/door.
• Internal under mounted.
• Soft closing.
• Torque adjustable (±11%).
• Two optional opening angles at 55 degrees or 80 degrees
HG-PA230 is Inside Mount
HG-PA231 is Under Mount
Product Videos
Custom Field
Family HG-PA230 Series
Family HG-PA231 Series
