Product Description

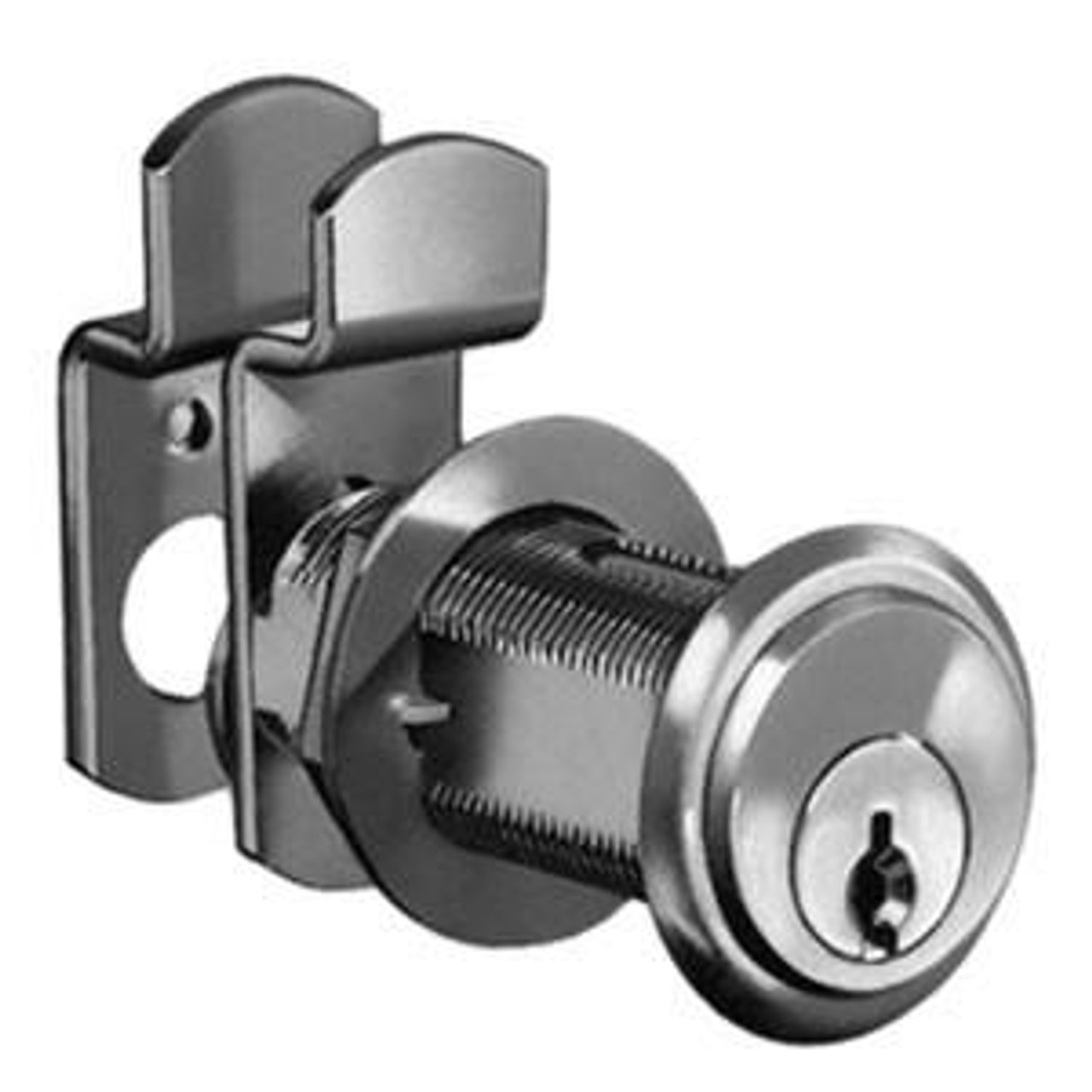

Compx pin tumbler cylinder cam lock, 1-7/16" Cylinder Length, 1-1/8" Material Thickness Max C8106
Pin Tumbler Locks are a Higher Security Lock normally used to prevent theft in Narcotic Cabinets, Coin Storage or any Valuable Items.
Through the use of a shifter, the 360° key turn turns the cam 90° in either
direction. Actual application determines which cam position is the locked
position. Each lock is furnished with an alternate cam for opposite cam turn.
OPERATION – 90° cam turn, key removable in both locked and
unlocked positions.
KEYING – Will key together with all other pin tumbler locks
using D4291 key blank.
See table for available keying. Master keying to GM1.
PACKAGING – Supplied with two keys, trim washer, spur
washer for wood, C2014 cam lock mounting plate for wood,
mounting nut and two cams. If flat washer (for metal) is needed,
order C2015-2C separately.
