Product Description

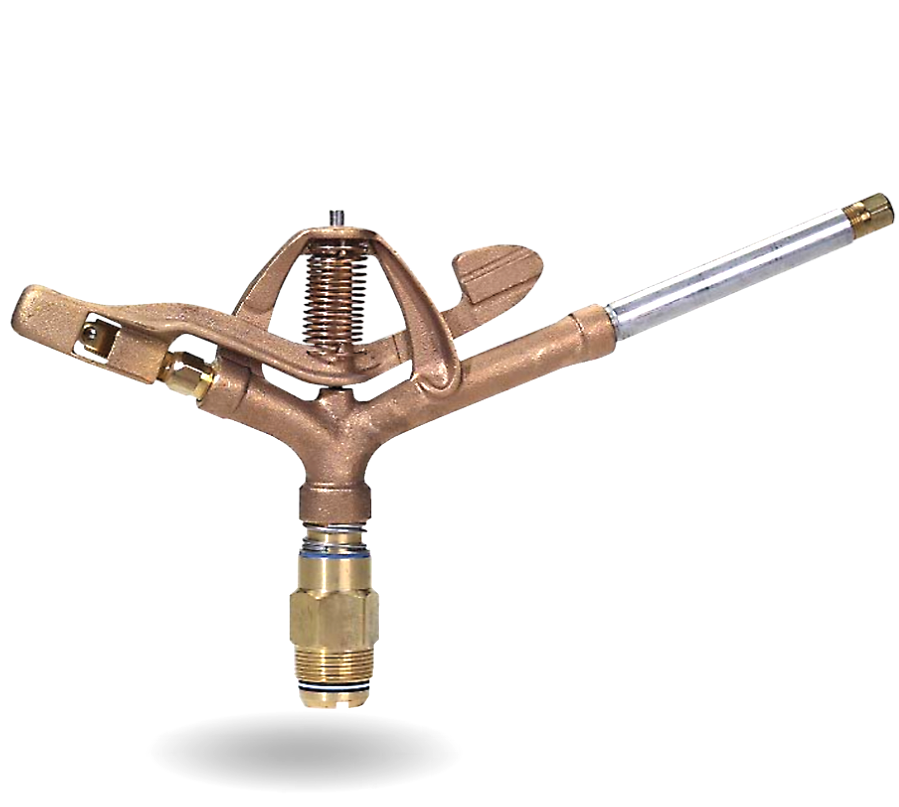

Buckner 400S 1-1/4" Bearing FULL CIRCLE Brass Impact Head
Designed for use in hose reel systems, fertilizer disbursement, waste water treatment, water reclamation, mining, logging and dust control.
Solid brass construction
Stainless steel springs and fulcrum pin
“Sure Seal®” sand load bearing assembly
Chemical-resistant bearing seals promote longer lifespan
Adjustable diffuser pin
Opposing nozzles
Range tube to increase radius
23° angle of trajectory
Operating Ranges
U.S.
Pressure: 65 – 100 psi
Flow: 34.62 – 132.18 gpm
Spacing: 85 – 117 feet
Metric
Pressure: 4.48 – 6.90 bars
Flow: 131.16 – 500.76 l/min
Spacing: 25.91 – 35.66 m
Trajectory: 23 Degrees
Specifications
1-1/4″ male inlet, National Pipe Thread (NPT)
Drive nozzle 3/4″ – 16 UNF
Range nozzle 3/4″ – 16 UNF
