Product Description
Buckner 170W23R Series 1/2” Full Circle Impact Head
Designed for agricultural use in solid sets, hand lines, center pivot, crop cooling and frost control. Can also be used in landscape irrigation situations requiring large area coverage.
Solid brass construction
Stainless steel springs and fulcrum pin
Plastic, self-cleaning wedge drive assembly
“Sure Seal®” sand load bearing assembly
Chemical-resistant bearing seals promote longer lifespan
23° angle of trajectory
SKU DESCRIPTION
170W23R Impact 1/2″, Fc, 23°, No Nozzle, Wedge, Brass Spindle
170W23R#39 Impact 1/2″, Fc, 23°, #39 Nozzle, Wedge Drive, Brass Spindle
170W23R#51 Impact 1/2″, Fc, 23°, #51 Nozzle, Wedge Drive, Brass Spindle
170W23R05 Wedge, 23° 5/64″ diameter (parts interchangeable with Rainbird® 14VH)
170W23R06 Wedge, 23° 3/32″ diameter (parts interchangeable with Rainbird® 14VH)
170W23R07 Impact 1/2″, Fc, 23°, 7/64″ Nozzle, Wedge, Brass Spindle
170W23R08 Impact 1/2″, Fc, 23°, 1/8″ Nozzle, Wedge, Brass Spindle

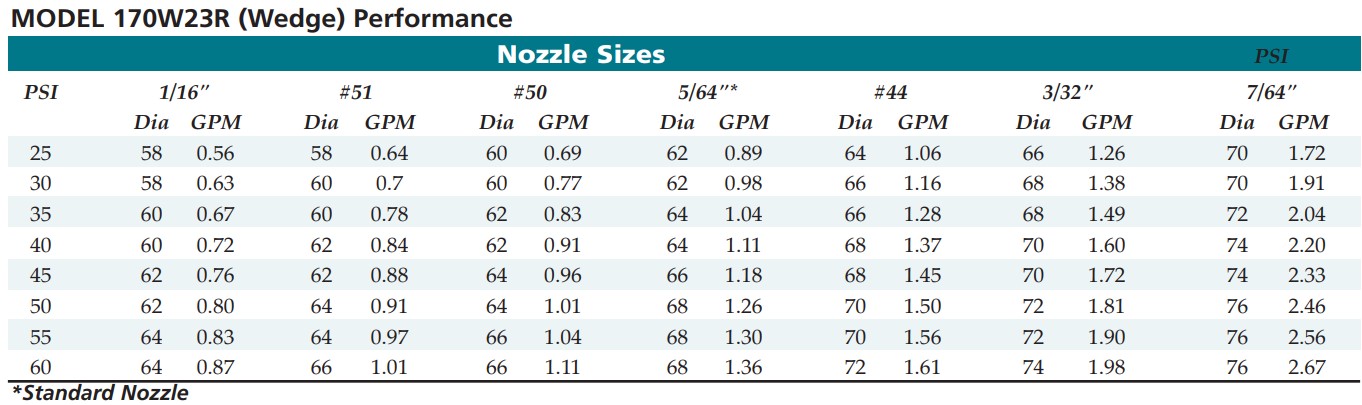

Operating Ranges
U.S.
Pressure: 25 – 60 psi
Flow: 0.33 – 3.51 gpm
Spacing: 31 – 41 feet
Metric
Pressure: 1.72 – 4.14 bars
Flow: 1.25 – 13.28 l/min
Spacing: 9.45 – 12.50 m
Trajectory: 23 Degrees
Specifications
1/2″ male inlet, National Pipe Thread (NPT)
170W23R Nozzle Thread, 3/8″ – 24 UNF
