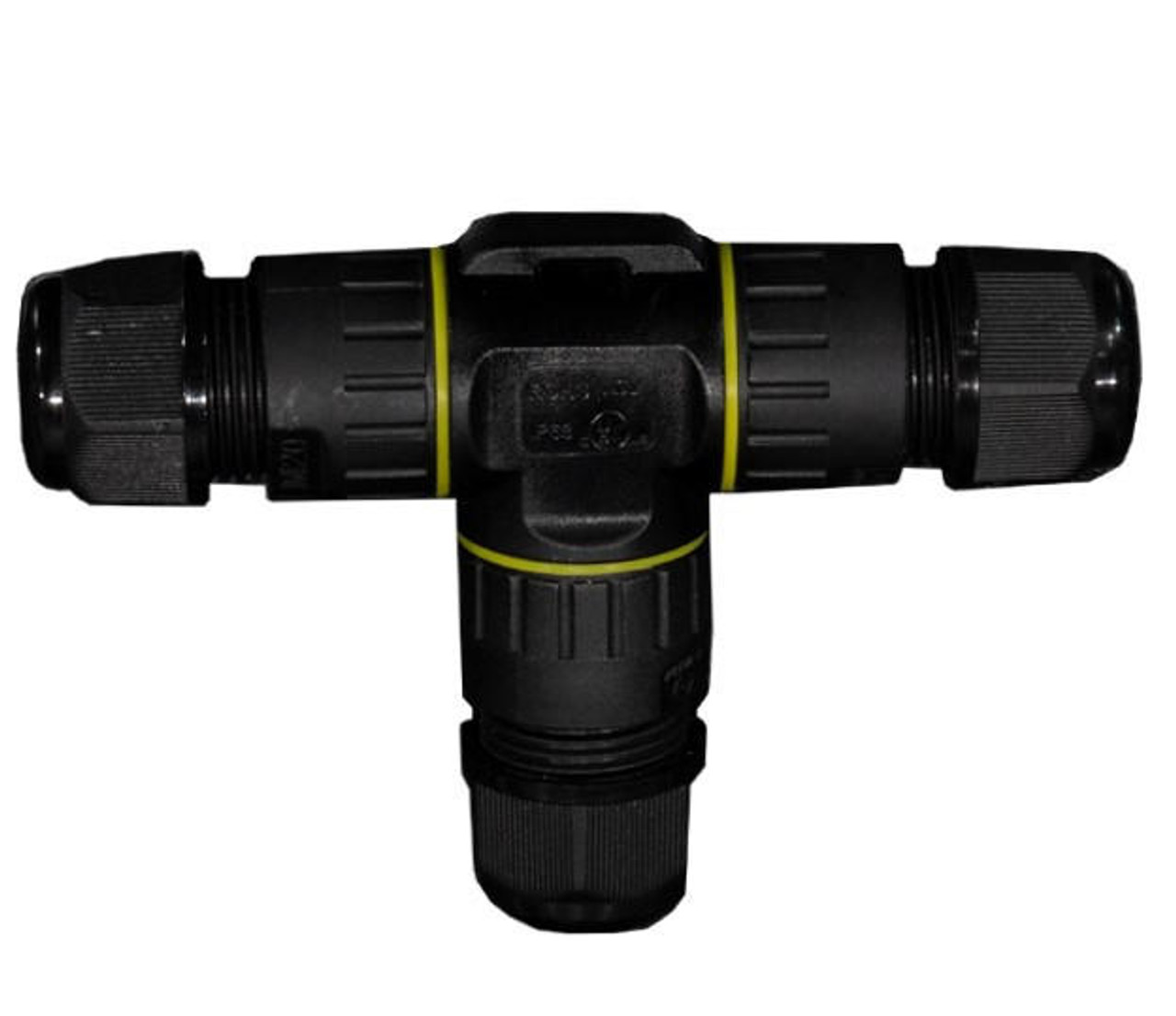

Brilliance LOW VOLTAGE BISTRO STRING T CONNECTOR Part# LOW-VOLTAGE-BISTRO-STRING-T-CONNECTOR
DESCRIPTION
The Low Voltage Bistro String T Connector is an accessory
to customize the length of the Low Voltage Bistro String
Reel only. Use with Brilliance Low Voltage Bistro String for
wherever you want to change directions, or when you need
to combine two sections of SO (stranded oil resistant) cable.
Order one Low Voltage Bistro String T Connector for each
center feed used
INSTALLING THE BISTRO STRING T CONNECTOR
1. Unscrew the plastic nut from the SO Cable side of the connection.
2. Use needle nose pliers to gently remove the one-hole rubber grommet from the throat coupler.
3. Unscrew the throat coupler from the center coupler.
4. Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle
terminal is not used for two conductor SO cable.
5. Strip the SO cable to reveal the black and white conductors, approximately 1-1/2 inches.
6. Pass the plastic compression nut over the SO cable with the rounded side first.
7. Insert the SO cable through the hole of the rubber grommet.
8. Pass the SO cable through the large side of the throat coupler with the fin side first.
9. Insert the black and white conductors into the opened terminals. Tighten both terminal screws.
10. Once both conductors are attached, thread the throat coupler to the center on the terminal side and screw
them together to tighten.
11. Position the one-hole rubber grommet into the fin side of the throat coupler.
12. Thread the compression nut back on to the fin side of the throat coupler. Hand tighten until the SO cable has
been compressed. Do not overtighten.
13. Repeat these instructions for each side of the T connection.
