Product Description
The T60L7540 TIP-ON for MOVENTO Unit and Triggers are designed with optimal opening and closing functionality when the total weight of the drawer, when loaded, weighs 44 lbs - 88 lbs. For 15" - 18" - 21" only

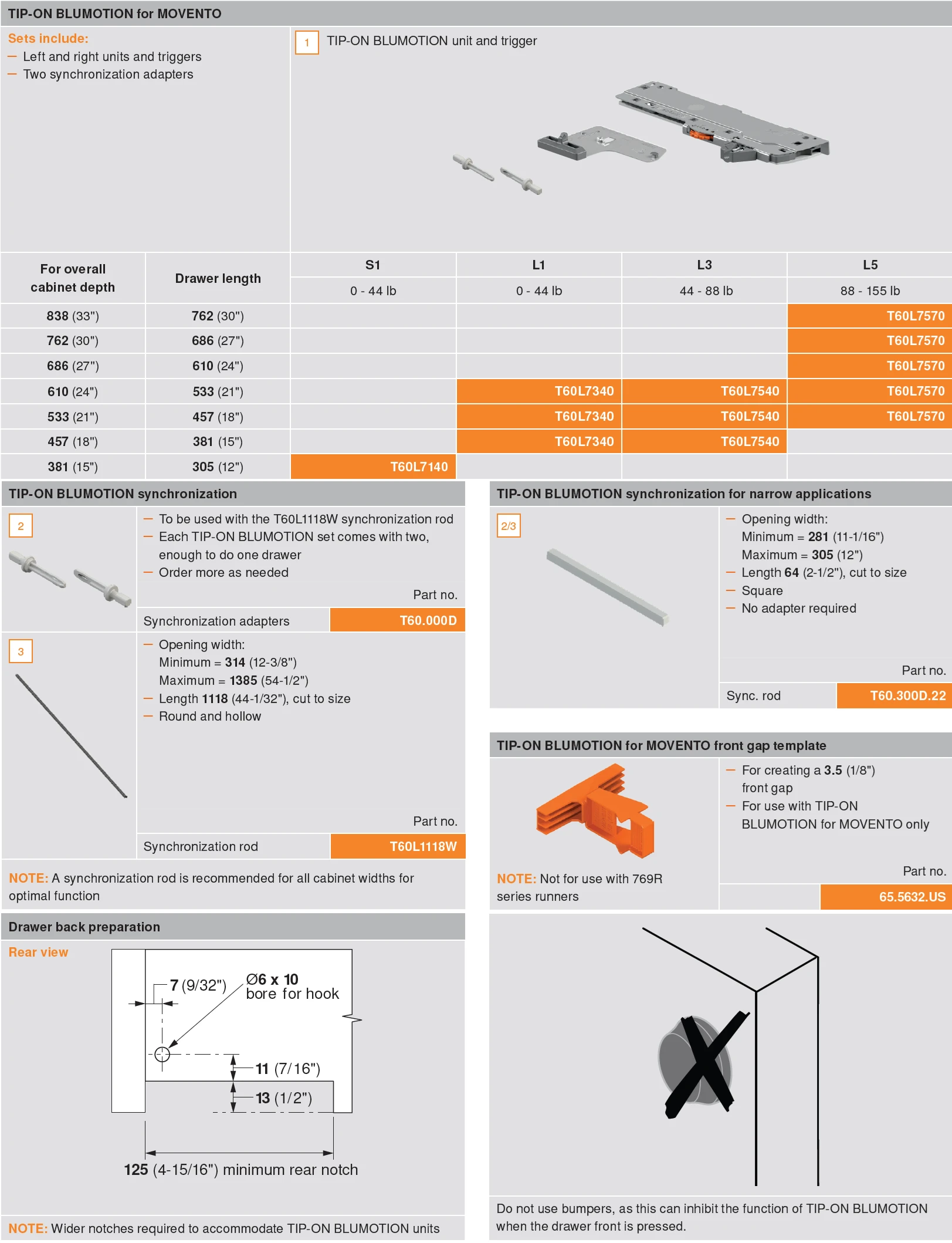

TIP-ON BLUMOTION for MOVENTO is a solution which combines the advantages of both TIP-ON and BLUMOTION, for wood drawers. This combination ensures that drawers open with just a light touch, have smooth running action, and a silent and effortless closing action.
TIP-ON BLUMOTION enables MOVENTO drawers to be opened with just a light touch of the drawer front and retain BLUMOTION soft closing action. TIP-ON BLUMOTION is a fully mechanical motion and can be used with or without pulls.
Features:
- Enables MOVENTO drawers to be opened with just a light touch of the drawer front
- For total weight of drawer, when loaded: 44 lbs - 88 lbs
- Same installation dimensions as MOVENTO
- Fully mechanical motion
- Smooth running action
- Four-dimensional adjustment
- Load capacity of runner remains unchanged
- Can be used with or without pulls

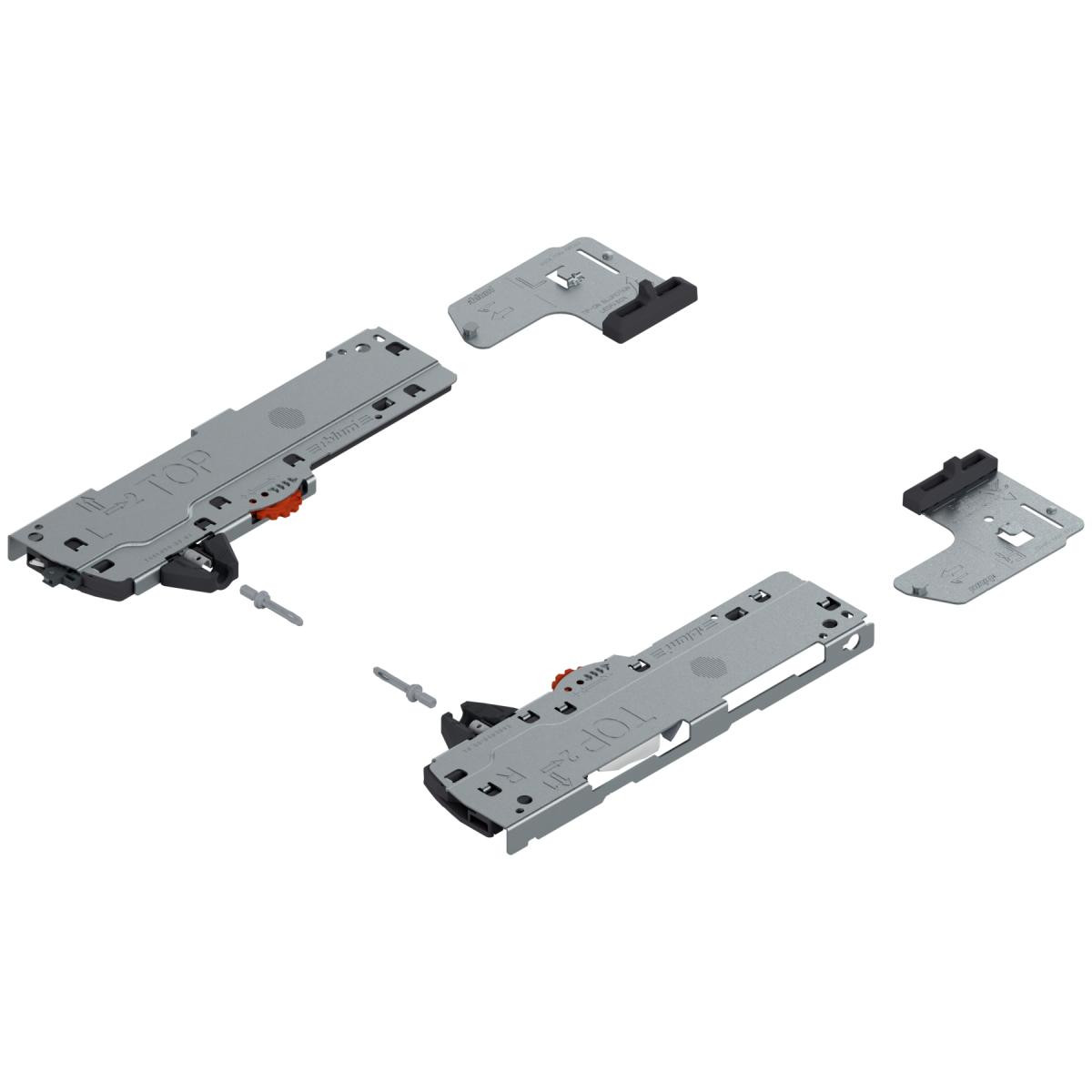

T60L7540
TIP-ON BLUMOTION unit
for LEGRABOX
for MOVENTO
Type L3
dynamic load capacity: 40 kg
nominal length: 350-600 mm
trigger path: 1 mm
Material: Nylon/steel
Color / finish: RAL 7037 dust gray
mounting method: to clip-on
Depth adjustment: +/-3 mm
Item package: right+left
TIP-ON BLUMOTION unit
for LEGRABOX
for MOVENTO
Type L3
dynamic load capacity: 40 kg
nominal length: 350-600 mm
trigger path: 1 mm
Material: Nylon/steel
Color / finish: RAL 7037 dust gray
mounting method: to clip-on
Depth adjustment: +/-3 mm
Item package: right+left
