Product Description

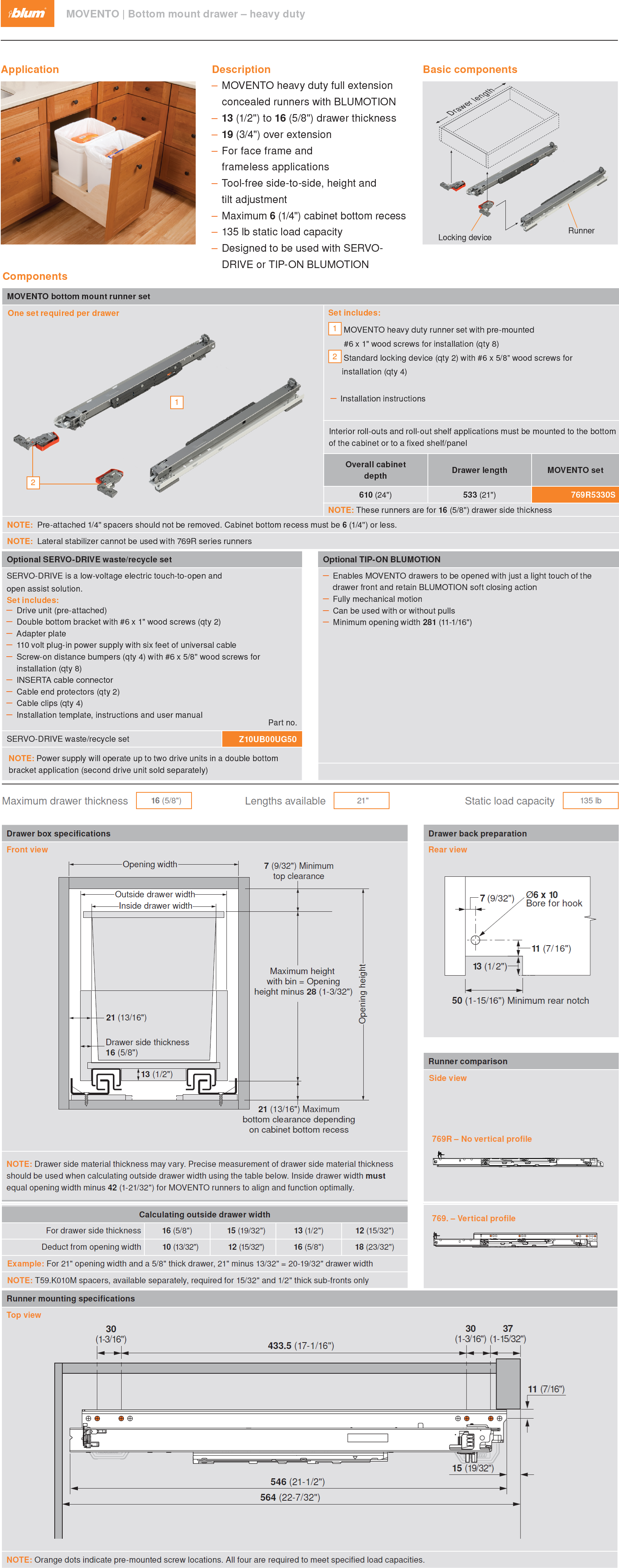

Blum MOVENTO 21" Drawer Length – Heavy Duty Bottom Mount Drawer 769R5330S
Description:
MOVENTO heavy duty full extension concealed runners with BLUMOTION
▬ 13 (1/2") to 16 (5/8") drawer thickness
▬ 19 (3/4") over extension
▬ For face frame and frameless applications
▬ Tool-free side-to-side, height and tilt
adjustment
▬ Maximum 6 (1/4") cabinet bottom recess
▬ 135 lb static load capacity
▬ Designed to be used with SERVO-DRIVE or
TIP-ON BLUMOTION
Components MOVENTO bottom mount runner set
Set includes:
1 MOVENTO heavy duty runner set with pre-mounted
#6 x 1" wood screws for installation (qty 8)
2 Standard locking device (qty 2) with #6 x 5/8” wood screws for
installation (qty 4)
Interior roll-outs and roll-out shelf applications must be mounted to
the bottom of the cabinet or to a fixed shelf/panel
Overall cabinet depth Drawer length MOVENTO set 610mm (24") 533mm (21") 769R5330S
NOTE: These runners are for 16 (5/8") drawer side thickness
NOTE: Pre-attached 1/4" spacers should not be removed. Cabinet bottom recess must be 6 (1/4") or less.
NOTE: Lateral stabilizer cannot be used with 769R series runners.
Optional SERVO-DRIVE waste/recycle set
SERVO-DRIVE is a low-voltage electric touch-to-open and
open assist solution.
SERVO-DRIVE waste/recycle set Z10NA30UGUS
NOTE: Power supply will operate up to two drive units in a double
bottom bracket application (second drive unit sold separately)
Set includes:
▬ Drive unit (pre-attached)
▬ Double bottom bracket with #6 x 1" wood screws (qty 2)
▬ Adapter plate
▬ 110 volt plug-in power supply with six feet of universal cable
▬ Screw-on distance bumpers (qty 4) with #6 x 5/8" wood screws
for installation (qty 8)
▬ INSERTA cable connector
▬ Cable end protectors (qty 2)
▬ Cable clips (qty 4)
▬ Installation template, instructions and user manual
Optional TIP-ON BLUMOTION
▬ Enables MOVENTO drawers to be opened with just a light touch
of the drawer front and retain BLUMOTION soft closing action
▬ Fully mechanical motion
▬ Can be used with or without pulls
▬ Minimum opening width 281 (11-1/16")
