Product Description

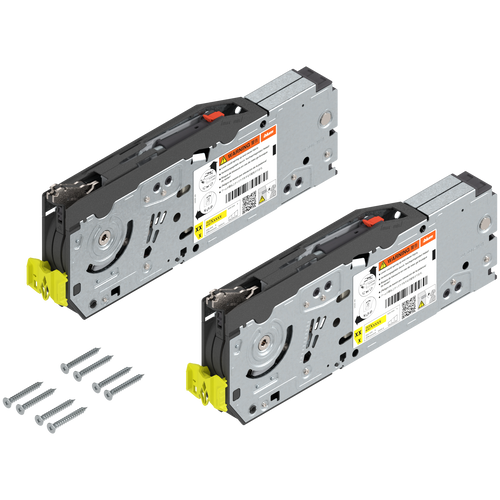

AVENTOS HF has a two part front that folds together in the center when opening. The bi-fold lift system is ideal for taller wall cabinets with large fronts because the handle remains within reach.- Well suited for large cabinets
- For both frameless and face frame applications
- Cabinet height from 479mm to 1067mm (18-7/8" to 42")
- Cabinet width from 381mm to 1828mm (15" to 72")
- Interior depth minimum 278mm (10-15/16")
- Center hinge with finger safety feature
- Three-dimensional front adjustment of both fronts
- Closes silently and effortlessly with BLUMOTION
- Variable stop
- Optional: SERVO-DRIVE for AVENTOS
- Restricts opening angle of the door to 83 degrees
- Prevents the door from hitting an object above or keeps the handle within reach on very high cabinets.
- One required per lift mechanism
- Must be installed prior to the reference run in SERVO-DRIVE applications
