Product Description
Accuride LA1815 Light-Duty Linear Track System
The Accuride LA1815 is a pre-assembled linear track system for light-duty applications. Each system consisits of a sliding steel plate within a lightweight aluminum track (along with a bumper and stops).

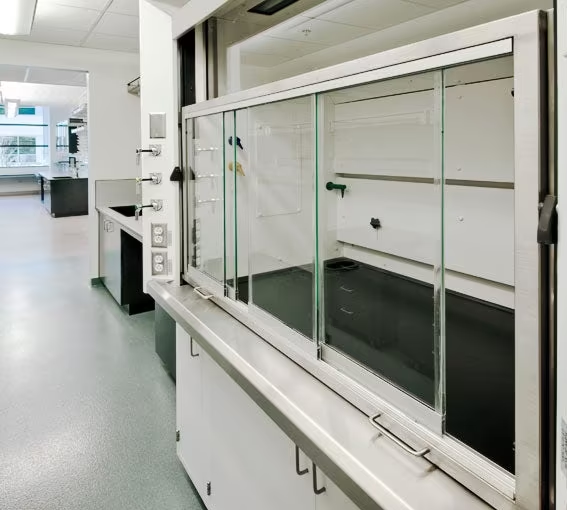

The LA1815 is an ideal movement solution for applications such as doors on fume hoods. As with all Accuride products, the LA1815 comes backed by a Limited Lifetime Warranty.
Aluminum track available in even lengths: 8" to 24"
• Corrosion-resistant track may be cut to the desired
length. Available with or without pre-drilled holes.
• Multiple lengths of track can be butted together to
extend the track to any distance required.
• Load Capacity up to 7lbs (statically) and18lbs.
(dynamically)
• Easy Installation
Tracks have drilling marks for fixing holes and end stops.
• End stops are attached after the carriages are inserted
to contain carriages.
• Tracks with and without fixing holes.
Max Load Rating (Static): 18 lbs.
Max Load Rating (Dynamic): 7 lbs.
Available Lengths (mm): 200, 250, 300, 350, 400, 450, 500, 550, and 600
Available Lengths (in.): 8, 10, 12, 14, 16, 18, 20, 22, and 24
WARNING: California Proposition 65
Comes fully assembled with:
Aluminum track
Steel plate
Stops (x2)
Plastic bumper
Works horizontally or vertically
