Product Description

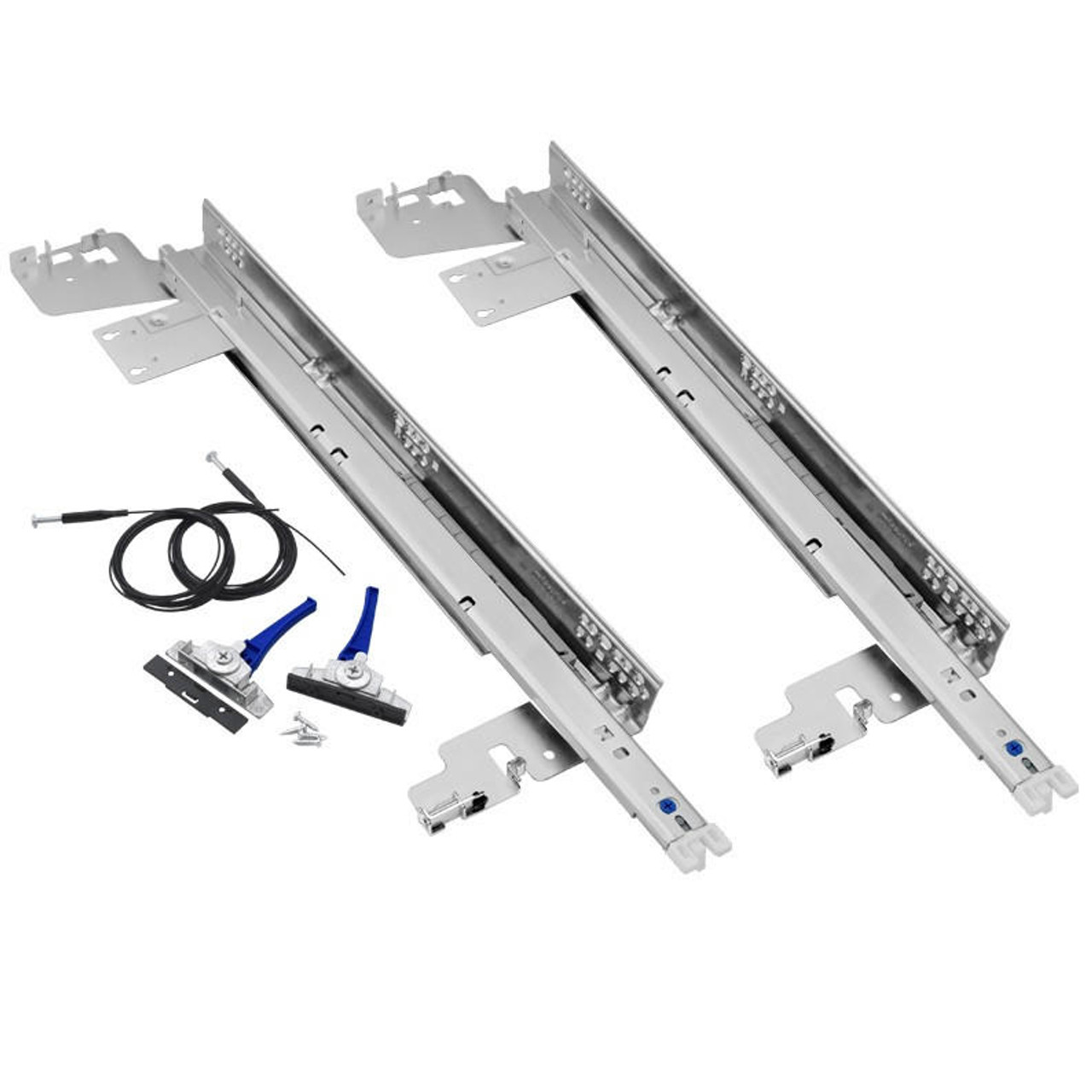

Accuride C3160 series Undermount Wide Drawer Drawer Slides Slides Sized 12" thru 28"
Accuride 3160EC COMMERCIAL-GRADE & SOFT-CLOSE UNDERMOUNT SLIDE FOR ULTRA-WIDE DRAWERS
The 3160EC is a commercial-grade undermount designed to support upscale and ultra-wide drawers up to 5 ft. wide. Crafted by the industry’s leading innovators at Accuride, the 3160EC is the only undermount slide designed to support applications up to 60 in. wide.
Other benefits include:
Supports loads up to 100 lbs.
Includes Easy-Close feature
Works on drawers 30-40 in. standard
Works on drawers 41-60 in. with companion kit (not included)
The 3160EC is the perfect movement solution to boutiques, upscale residences, and fine galleries. The 3160EC performance is certified by Architectural Woodwork Institute (AWI) and the Builders Hardware Manufacturers Association (BHMA).
Finish: Clear electro-zinc (C)
Lengths: 12"-28" [304.8 mm-711.2 mm]
15" and 21" [381.0mm-533.4mm]
Height: 1.05'' [26.8 mm]-Under drawer
1.87" [47.5 mm]-Overall
Load Rating: Up to 100 lbs. [45.5 kg.] per pair*
Travel: Full Extension
Mounting: Undermount (side)
Hardware: #8 Flat head screw or Flat head 6 mm Euro system screw
Bearings: Carburized Steel, polymer
Features: Compatible with 1/2'' [12.7 mm] to 5/8'' [15.9 mm] drawer box
thickness, 1/8'' [3.2 mm] range of horizontal, vertical, and front
to back drawer front adjustment. Easy-Close action brings
drawers to a gentle close. Out-stop silenced for quiet operation,
and with cable system (included) and wide drawer stabilizer kit
(order separately for drawers 41"-60") to avoid lateral movement.
