Product Description
Sugatsune GH-G02-LSTAINLESS STEEL GRAVITY HINGE FOR GLASS DOOR Handed
Can be used in areas where water is used.
Hinge self-closes between 0° and 70°.
Hinge self-opens between 70° and 160°. Use door stopper to achieve desired max opening angle.
A rise of 1/8″ (3 mm) occurs when open 70°
ITEM NO. GH-G02-L
WEIGHT 890 G

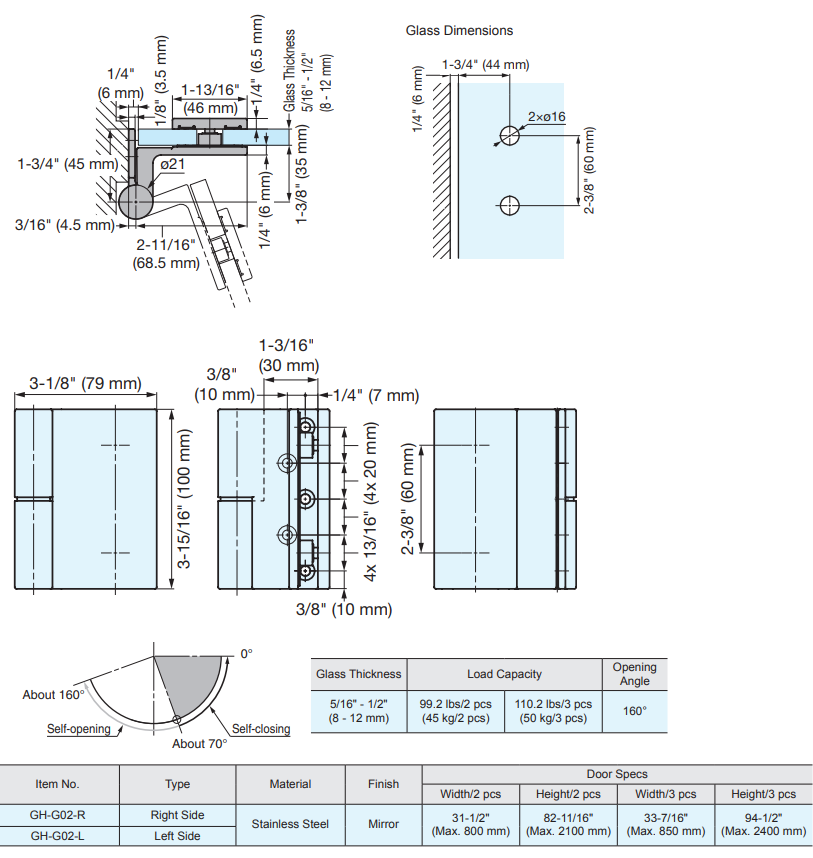

DIMENSIONS 62 × 79 × 100 MM
HOLES
5
KNUCKLES
2
LOAD CAPACITY (KG/PAIR)
45
LOAD CAPACITY (LBS/PAIR)
99.2
MAX. DOOR HEIGHT (MM)
2400
MAX. DOOR HEIGHT (INCH)
94-1/2
DOOR MAX. WIDTH (MM)
850
MAX. DOOR WIDTH (INCH)
33-7/16"
MAX. GLASS THICKNESS (MM)
12
MAX. GLASS THICKNESS (INCH)
1/2"
MIN. GLASS THICKNESS (MM)
8
MIN. GLASS THICKNESS (INCH)
5/16"
