Product Description
Rev-a-shelf Wire Bottom Mount Waste Container RV-12KD Series
The RV Series of wire frame waste container pullouts offers several sizes, finishes and slide options to accommodate a variety of cabinet openings, styles and price points.
Series Name RV-12KD-17C S or RV-12KD-18C S

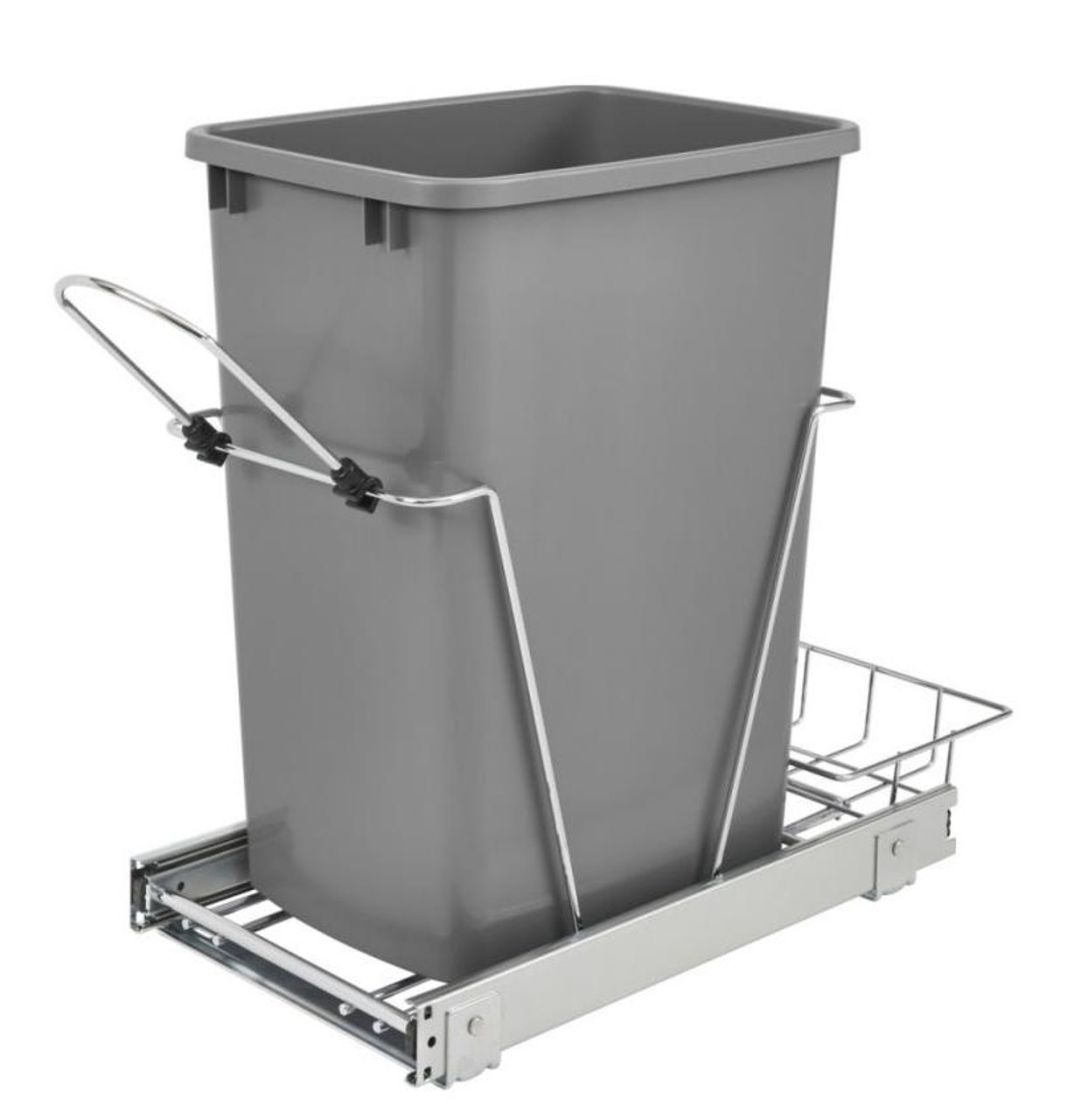

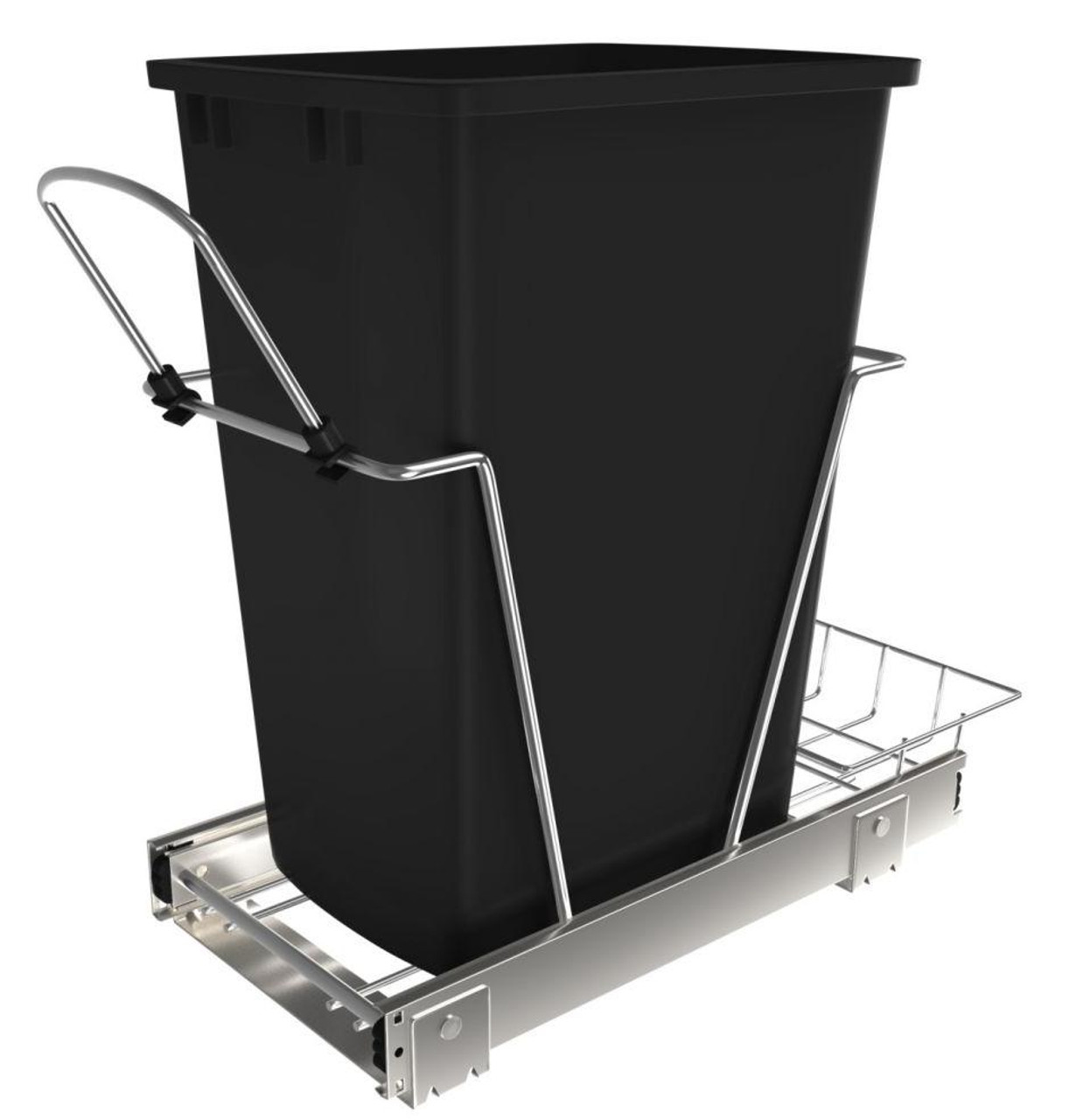

Short Description Single 35 qt. Silver or Black waste container with chrome-plated wire pullout frame, featuring rear storage.
Primary Color Chrome
Frame Color Chrome
Waste Container Color Metallic Silver or Black
Primary Material Wire
Frame Material Wire
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 11"
Face Frame Min. Cab. Opening Depth (inches) 21 1/8"
Face Frame Min. Cab. Opening Height (inches) 19 1/4"
Frameless Min. Cab. Opening Width (inches) 11"
Frameless Min. Cab. Opening Depth (inches) 21 1/8"
Frameless Min. Cab. Opening Height (inches) 19 1/4"
Inset Min. Cab. Opening Width (inches) 11"
Inset Min. Cab. Opening Depth (inches) 21 7/8"
Inset Min. Cab. Opening Height (inches) 19 1/4"
Width (min to max): 10 15/32"
Depth (min to max): 21 1/8"
Height (min to max): 18 13/16"
Door Mountable Yes, Sold Separately
Installation Type Cabinet Floor Mounted
Mount Type Cabinet floor
Primary Finish Plated
TSCA Title VI No
Number of Waste Containers 1
Waste Container Capacity 35.000000
Order Increment 1
Patent Number 8,978,917|9,309,049
Designed for 12", 15" and 18" base cabinets
Single 30, 35 and 50 qt. and double 27 and 35 qt. polymer containers, black, metallic silver or white
4-screw installation
Chrome-plated or white powder coated welded wire frame
2 slide configurations available:
- 3/4 or full-extension, ball-bearing, 100 lb. rated slides
Mounts to cabinet floor
Door mount kit (sold separately)
35 and 50 qt. polymer lids available (sold separately)
- RV-12PB (LE, 50 S, L and 50) come w/ matching lid
