Product Description
General Recording Video Inspection Camera/Borescope with High-Performance Articulating Probe DCS16HPART
The #DCS16HPART Recording Video Inspection Camera/Borescope with High-Performance Articulating Probe is ideal for aircraft inspection, machinery and production line inspection, and general maintenance/repair/operations (MRO) tasks.
FEATURES
Combines the #H16 console of a #DCS1600 Recording Video Inspection Camera/Borescope with a 1m (3.3 ft.) long #P16HPART High-Performance Articulating Probe. This probe is also available separately in three lengths as a plug-and-play upgrade of the articula
The #P16HPART probe is IP67 waterproof, with an articulation range of ±155° and a VGA resolution (640 x 480 pixel) camera lit by five adjustable-brightness white LEDs. Three buttons on the probe’s controller allow you to brighte
The ability to change the probe’s viewing axis by up to 155° in two directions—even in close quarters—makes it possible to see around corners or even "behind" the probe
The 3.5 in. diagonal color LCD on the console makes it possible to view probe video instantly and saved video clips and pictures later
Familiar menu-driven user interface for viewing videos and photos on the console’s LCD (or TV) and for saving media files to a standard full-size SD memory card (8GB card included)
27 available menu languages
H16 CONSOLE:
Display: 3.5 in. (89mm) diagonal TFT color LCD
Display resolution: 320 by 240 pixels (QVGA)
Camera and recording resolution: 640 x 480 pixels (VGA)
Analog video out formats: NTSC and PAL
2X zoom and horizontal mirroring controls on front panel
Recording medium: Standard-size SD card (4GB card included)
Operating temperature: 32° to 140°F (0° to 60°C)
Weight: 13.4 oz. (380g)
Power source: Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included)
P16HPART PROBE:
Size and type: 1m (3.28 ft.) long x 6mm (0.23 in.) diameter, soft metal
Water/oil/dust resistance: Per IP67 standard
Depth of field/field of view: 0.25 to 12 in. (6.4 to 300mm)/ 60°
Camera lighting: Three forward-facing LEDs + two side-facing LEDs
Articulation range: ±155°
Operating temperature: -4° to 140°F (-20º to 60°C)

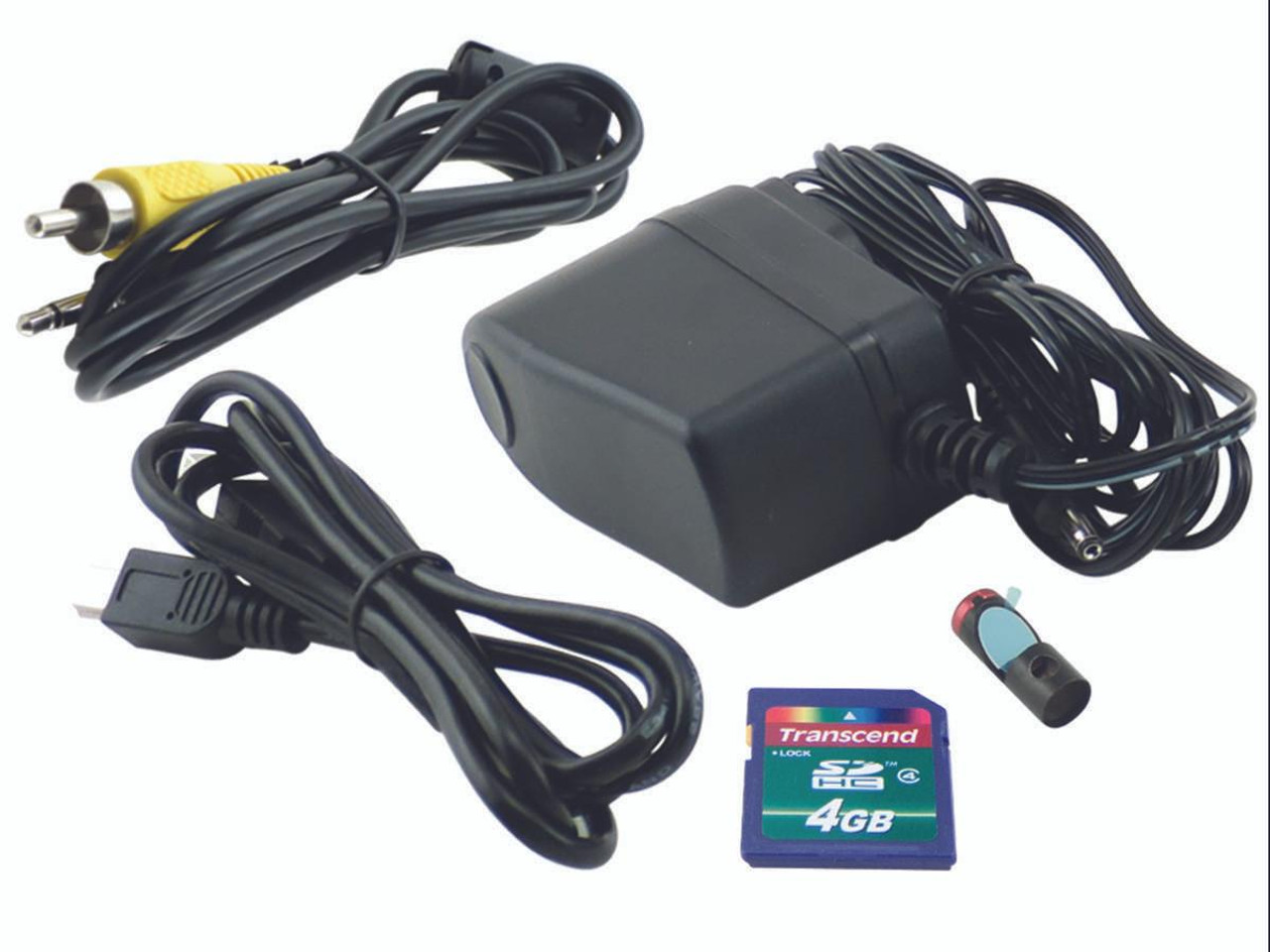

Includes
#H16 console
#P16HPART High-Performance Articulating Probe
70° mirrored probe viewing tip
4GB SD memory card
#AC2 AC Adaptor/Charger
USB and A/V cables
Custom hard plastic carrying case
1-year limited warranty
Dimensions
8.5 x 4.7 x 1.4 in. (215 x 120 x 36mm)
