Product Description

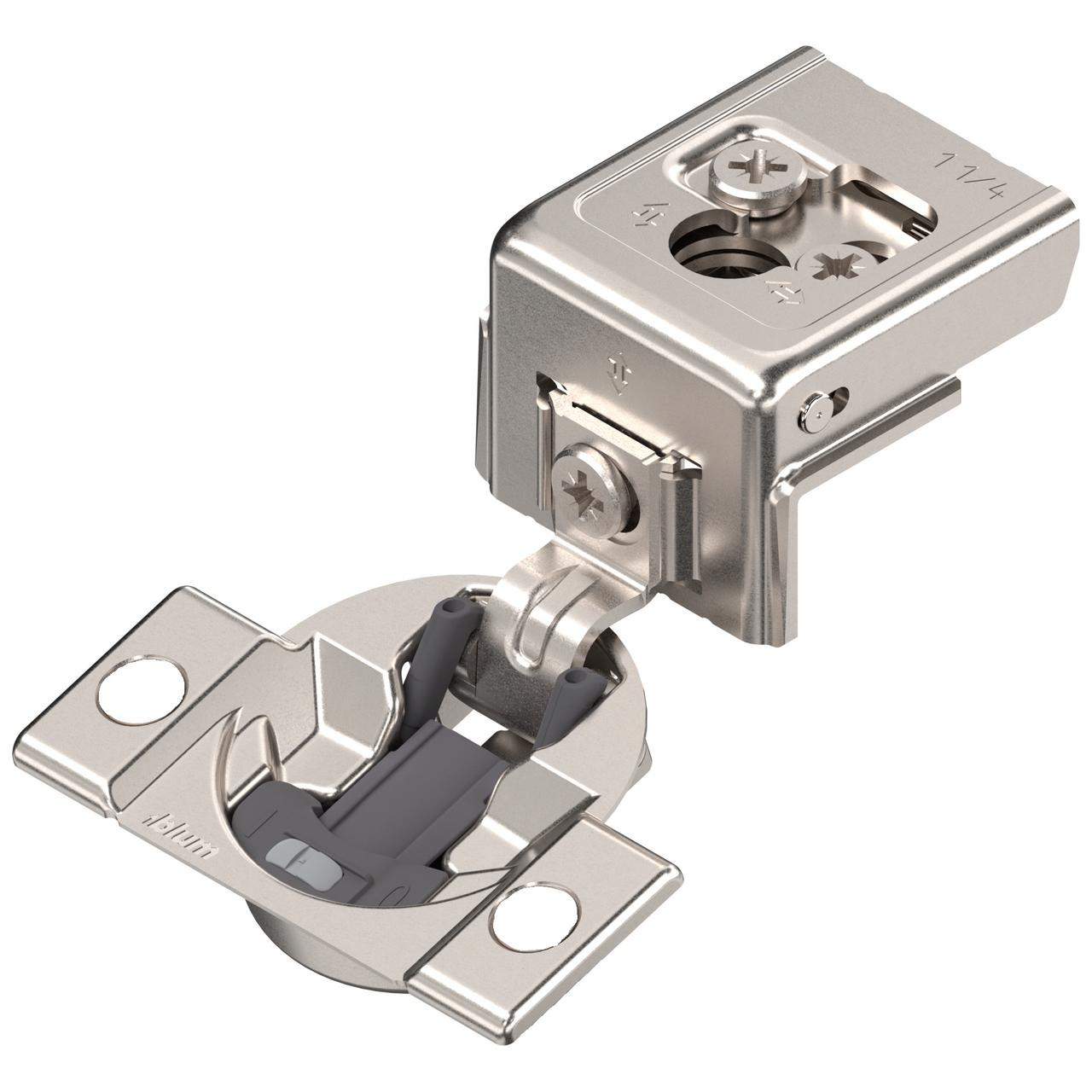

BLUM COMPACT CLIP Hinges 1" to 1-1/2" Overlays Plus Screw On With Soft Close
NOTE: This is a NEW Product line Availability may be Questionable
BLUM COMPACT CLIP Hinges With Soft Close "BLUMOTION"
The Evolution of Innovation
The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum’s proven CLIP
technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate with
a pre-mounted screw to save time and improve installation accuracy. Designed with soft-close BLUMOTION and three dimensional cam adjustments, COMPACT CLIP is user-friendly for cabinetmakers and installers alike.
CLIP Technology:
The CLIP technology reduces the
risk of damage to cabinet frames
because doors can be removed
and reattached without removing
any screws.
Pre-mounted screw:
COMPACT CLIP hinges come
with a pre-mounted screw to
improve screw head visibility
and prevent installers from
having to handle loose screws.
Cam height adjustment:
This new feature allows doors
to be adjusted up and down,
without removing screws and
repositioning the door.
COMPACT CLIP hinges for partial overlay:
30C2: Partial overlay hinges with a 105° opening angle and 7/16" cup depth
Deactivation option:
The BLUMOTION function can
be easily deactivated on one of
the hinges, allowing small or light
doors to close with the same high
quality of motion.
Interchangeability:
COMPACT CLIP hinges
are interchangeable with all
current COMPACT BLUMOTION
and COMPACT hinges so there
is no need to change existing
setups or workflows.
Interchangeability:
COMPACT CLIP hinges
are interchangeable with all
current COMPACT BLUMOTION
and COMPACT hinges so there
is no need to change existing
setups or workflows.
Features:
Angle restriction clip 38C315B3.1
Hinge cup spacer 38C355B9
*Blank cover cap 30C2508
▀ Utilizes Blum‘s CLIP technology
▀ BLUMOTION integrated into the hinge cup
▀ Deactivation switch for small/light doors
▀ Overload safety feature
▀ Three-dimensional cam adjustment
with directional arrows for easy and
precise adjustability
▀ 1/2" cup depth
▀ Edge mount available in 1/2" overlay
▀ Pre-mounted wood screw for time-saving
and precise installation
▀ Custom logo cover cap available
Overlays from 1" thru 1-9/16"
